Unit · AXIAL-PISTON PUMP
A4VG110DA1/40+A4VG110HT1/40+A10VO85DFR1R902136939
Axial piston pump Bosch Rexroth series A4VG, type code A4VG110DA1/40+A4VG110HT1/40+A10VO85DFR1, material number R902136939. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: automatic control, speed related U = 12 V (DA1). Connector for solenoids: without connector (only for purely hydraulic control) (0).
- Number
- R902136939
- Type code
- A4VG110DA1/40+A4VG110HT1/40+A10VO85DFR1
- Group
- A10VO 85
- Edition
- 01/2020

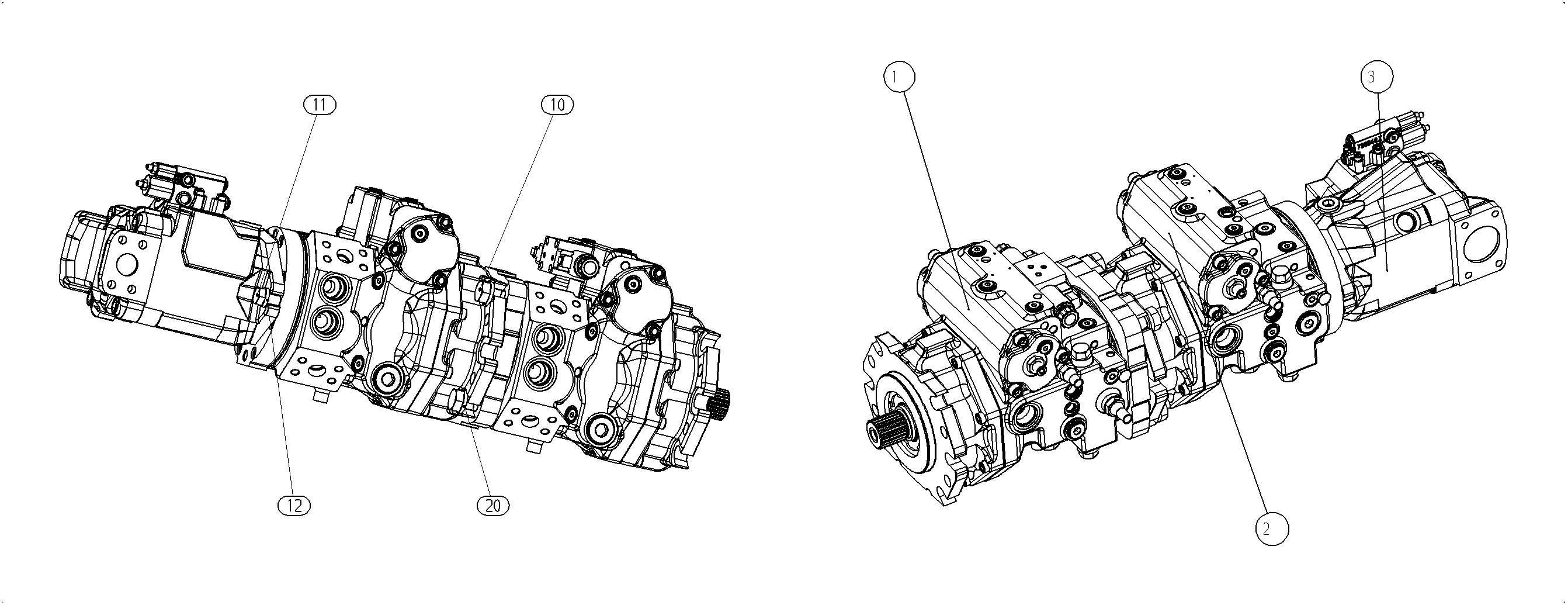

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902121115 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902121122 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902473894 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909152538 | HEXAGON SCREW | 4 | ||
| R909083716 | HEXAGON SCREW | 2 | ||
| R909436988 | WASHER | 4 | ||
| 21 | R909430408 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 110 | 110 |
| Control device | Automatic control, speed related U = 12 V | DA1 |
| Connector for solenoids | Without connector (only for purely hydraulic control) | 0 |
