Unit · AXIAL-PISTON PUMP
A4VG90EP3DM1/32L-NAD13F071DP-SR902138935
Axial piston pump Bosch Rexroth series A4VG, type code A4VG90EP3DM1/32L-NAD13F071DP-S, material number R902138935. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional U = 12 V control electric with proportional solenoid (EP3). Pressure cut-off: pressure cut-off (D). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft DIN 5480 for combination pump – 1st pump (A). Mounting flange: SAE J744 4-hole (D). Working port (port plate): SAE working port A and B, same side right suction port S at top (13). Boost pump: integrated boost pump with and without through drive (F). Through drive: flange SAE J744 Hub for splined shaft, 127-2 (C) 1 1/4 in 14T 12/24DP (07). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1).
- Number
- R902138935
- Type code
- A4VG90EP3DM1/32L-NAD13F071DP-S
- Group
- A4VG 90
- Edition
- 05/2020

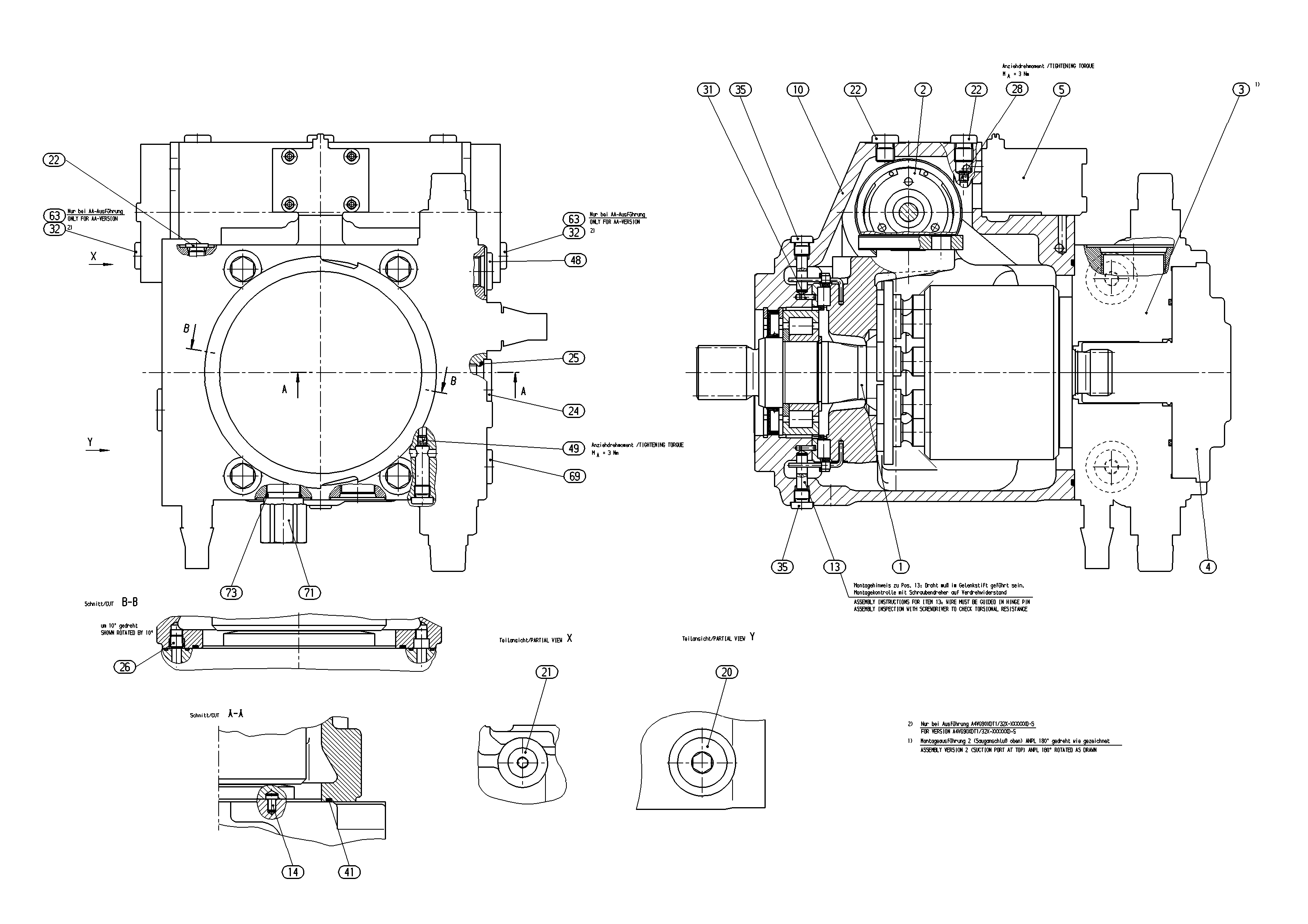

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199505 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902017212 | CONTROL Assembly parts list →L | 1 | ||
| R902118623 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902069422 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902106641 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902124565 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909153330 | O-RINGD | 1 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| R909153816 | SCREW PLUG | 1 | ||
| R909922096 | LOCKING PIECE | 1 | ||
| R900012473 | SEAL RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
| Control device | Proportional U = 12 V control electric with proportional solenoid | EP3 |
| Pressure cut-off | Pressure cut-off | D |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft DIN 5480 for combination pump – 1st pump | A |
| Mounting flange | SAE J744 4-hole | D |
| Working port (port plate) | SAE working port A and B, same side right suction port S at top | 13 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Flange SAE J744 Hub for splined shaft, 127-2 (C) 1 1/4 in 14T 12/24DP | 07 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Connector for solenoids | DEUTSCH connector without suppressor diode molded, 2-pin | P |
| Standard/special version | Special version | -S |
