Unit · AXIAL-PISTON PUMP
A4VG180EP4/+A4VG56EP4/+A4VG56DG/+A10VO8R902146093
Axial piston pump Bosch Rexroth series A4VG, type code A4VG180EP4/+A4VG56EP4/+A4VG56DG/+A10VO8, material number R902146093. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control electric with inlet filtration in P U = 24 V (EP4).
- Number
- R902146093
- Type code
- A4VG180EP4/+A4VG56EP4/+A4VG56DG/+A10VO8
- Group
- A10VO 8
- Edition
- 12/2019

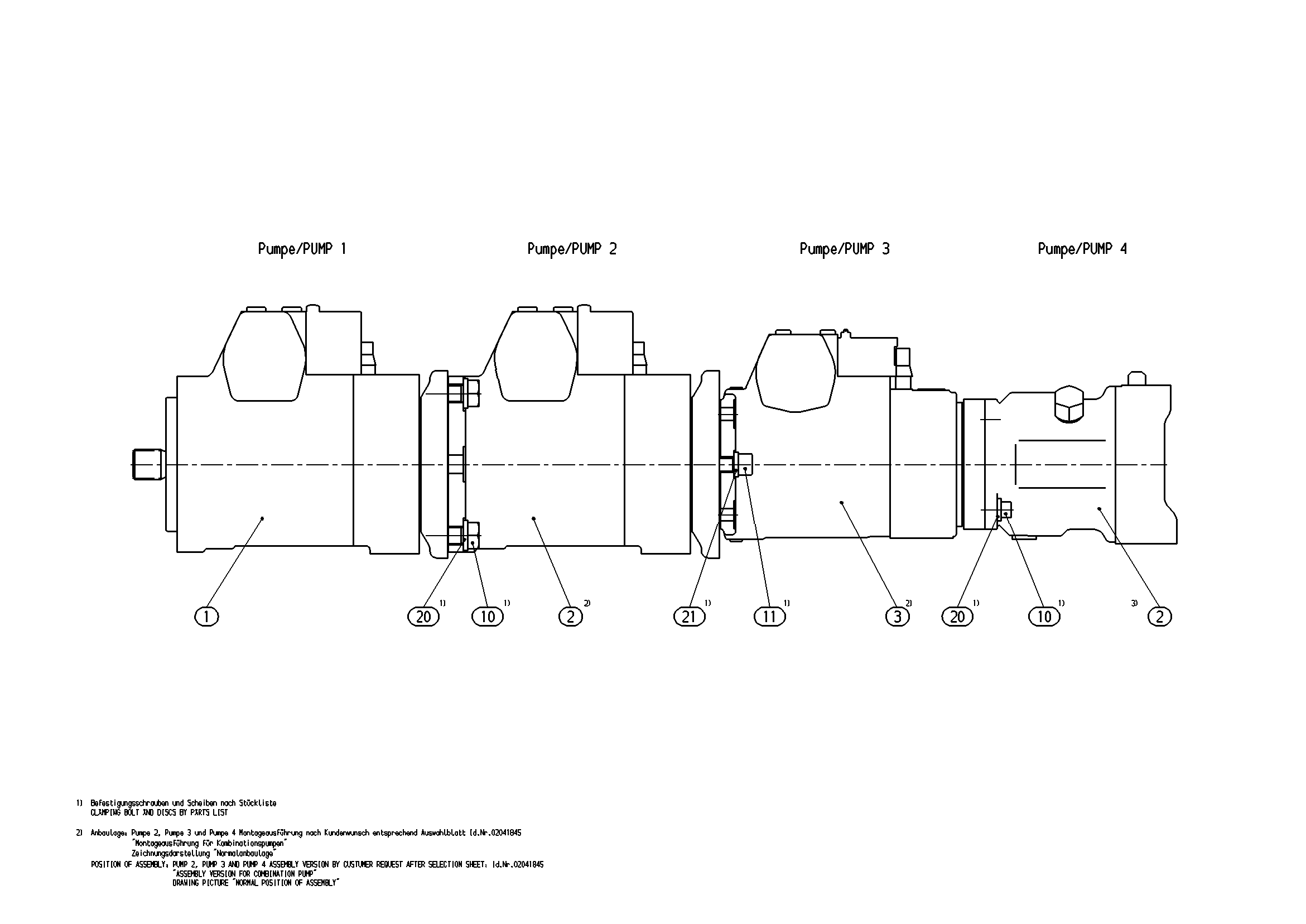

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902146091 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902146089 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902146087 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 4 | R902473894 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R909153318 | HEXAGON SCREW | 2 | ||
| 11 | R909083131 | SOCKET HEAD CAP SCREW | 2 | |
| 12 | R909083129 | SOCKET HEAD CAP SCREW | 2 | |
| R909430408 | WASHER | 2 | ||
| R909430408 | WASHER | 2 | ||
| 22 | R902040708 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| Control device | Proportional control electric with inlet filtration in P U = 24 V | EP4 |
