Unit · AXIAL-PISTON PUMP
A4VG085DA2/40+A4VG085HT1/40R902146613
Axial piston pump Bosch Rexroth series A4VG, type code A4VG085DA2/40+A4VG085HT1/40, material number R902146613. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: automatic control, speed related U = 24 V (DA2). Connector for solenoids: without connector (only for purely hydraulic control) (0).
- Number
- R902146613
- Type code
- A4VG085DA2/40+A4VG085HT1/40
- Group
- A4VG 85
- Edition
- 01/2020

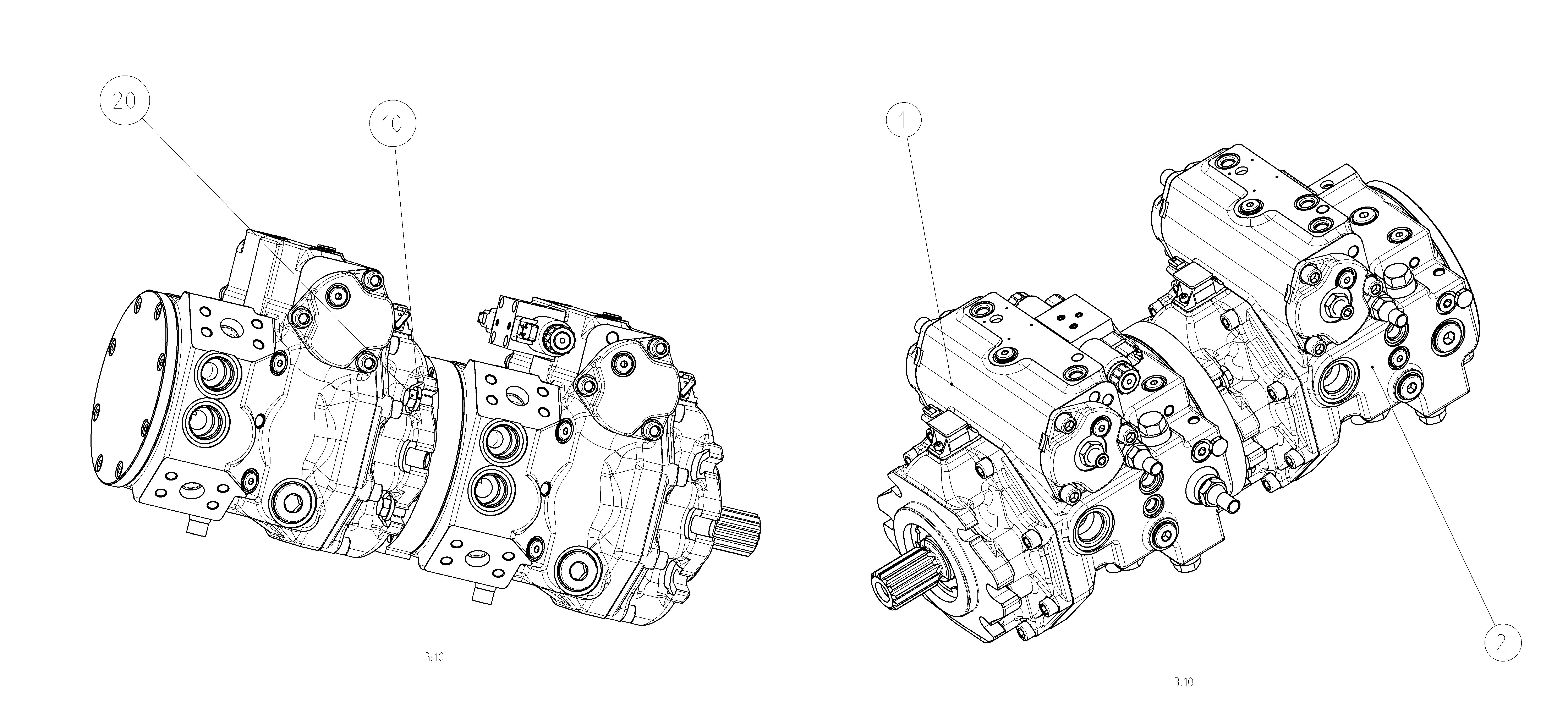

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902146606 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902146611 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083708 | HEXAGON SCREW | 4 | ||
| R909430409 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Control device | Automatic control, speed related U = 24 V | DA2 |
| Connector for solenoids | Without connector (only for purely hydraulic control) | 0 |
