Unit · AXIAL-PISTON PUMP
A4VG145EP1DPR00/40MRND6T21VC4S7AD0V-SR902146696
Axial piston pump Bosch Rexroth series A4VG, type code A4VG145EP1DPR00/40MRND6T21VC4S7AD0V-S, material number R902146696. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: electric swivel angle sensor (DWS20-1, 3-pin) (R). Additional function: without additional function (0). DA control valve (only for NG110 and 125): without DA control valve (0). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 152-2/4 (D6). Drive shaft: splined shaft ANSI B92.1a–1976 2 in 15T 8/16DP (T2). Working port: SAE working port A and B, on left side (45° left) (1).
- Number
- R902146696
- Type code
- A4VG145EP1DPR00/40MRND6T21VC4S7AD0V-S
- Group
- A4VG 145
- Edition
- 01/2020

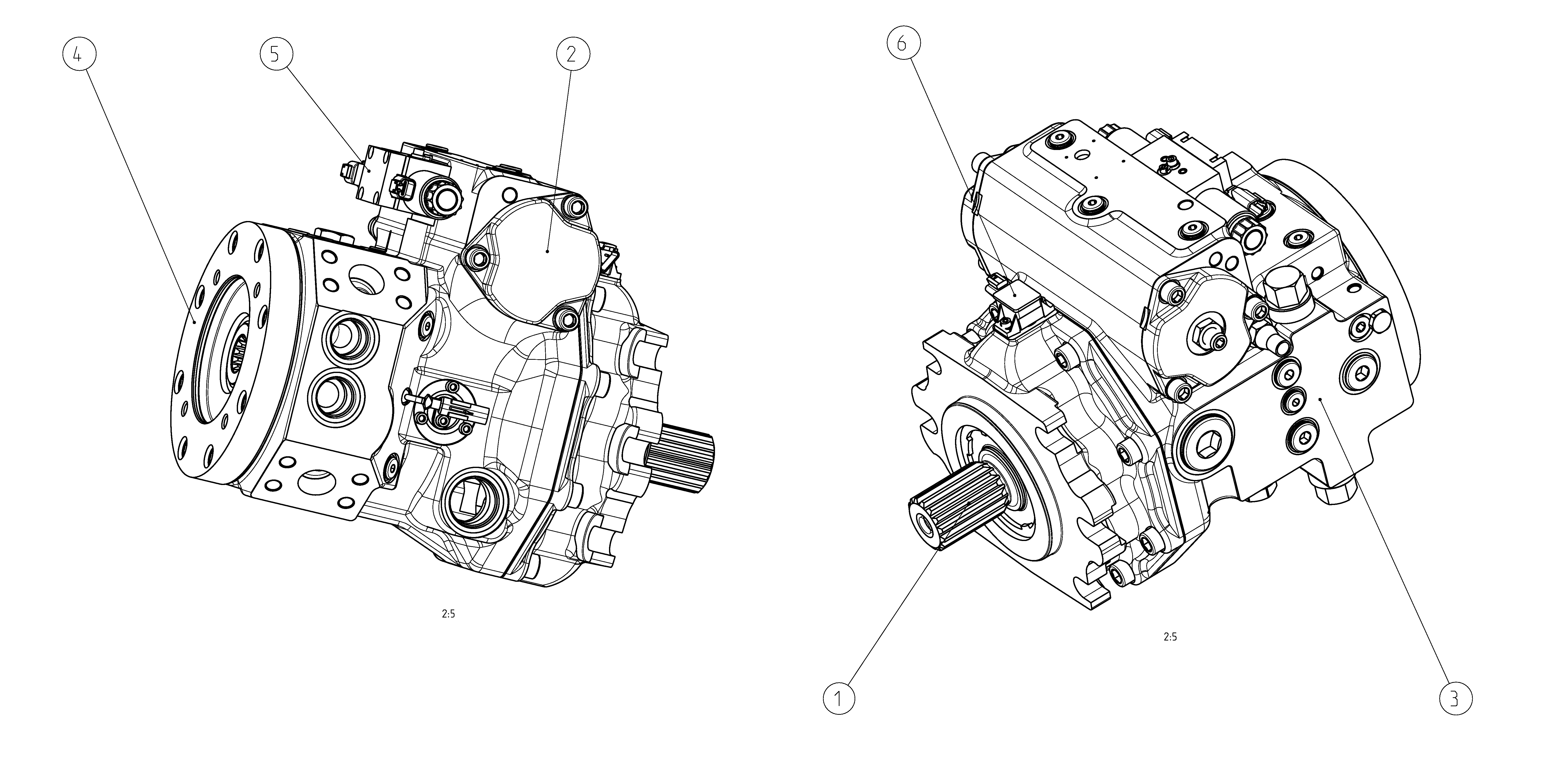

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902201407 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902108532 | CONTROL Assembly parts list →L | 1 | ||
| R902146827 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902252467 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902102341 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902108621 | BEARING FLANGE Assembly parts list →L | 1 | ||
| 98 | R902095819 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 145 | 145 |
| Control device | Proportional control, U = 12 V electric | EP1 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Electric swivel angle sensor (DWS20-1, 3-pin) | R |
| Additional function | Without additional function | 0 |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 152-2/4 | D6 |
| Drive shaft | Splined shaft ANSI B92.1a–1976 2 in 15T 8/16DP | T2 |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Boost pump and rotary group configuration | High-speed rotary group boost pump integrated, standard internal gear pump | V |
| Through drive | 127-4 (C) C4 1 1/4 in 14T 12/24DP S7 | C4S7 |
| High-pressure relief valve | High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting | A |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Speed sensor DSM, DSA | V |
| Standard / special version | Special version | S |
