Unit · AXIAL-PISTON PUMP
AA10VG28DE11/10R-NSC60F005SC *FNI*R902148638
Axial piston pump Bosch Rexroth series A10VG, type code AA10VG28DE11/10R-NSC60F005SC*FNI*, material number R902148638. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi (AA10V). Operating mode: pump, closed circuit (G). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a–1976 for single pump (S). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, same side left suction port S bottom (60). Boost pump: integrated boost pump with and without through drive (F). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve direct operated, 3600 … 4650 psi fixed setting (250 … 320 bar) with bypass (5). Filtration boost circuit/external boost pressure supply: filtration in the boost pump suction line (S).
- Number
- R902148638
- Type code
- AA10VG28DE11/10R-NSC60F005SC *FNI*
- Group
- A10VG 28
- Edition
- 07/2020

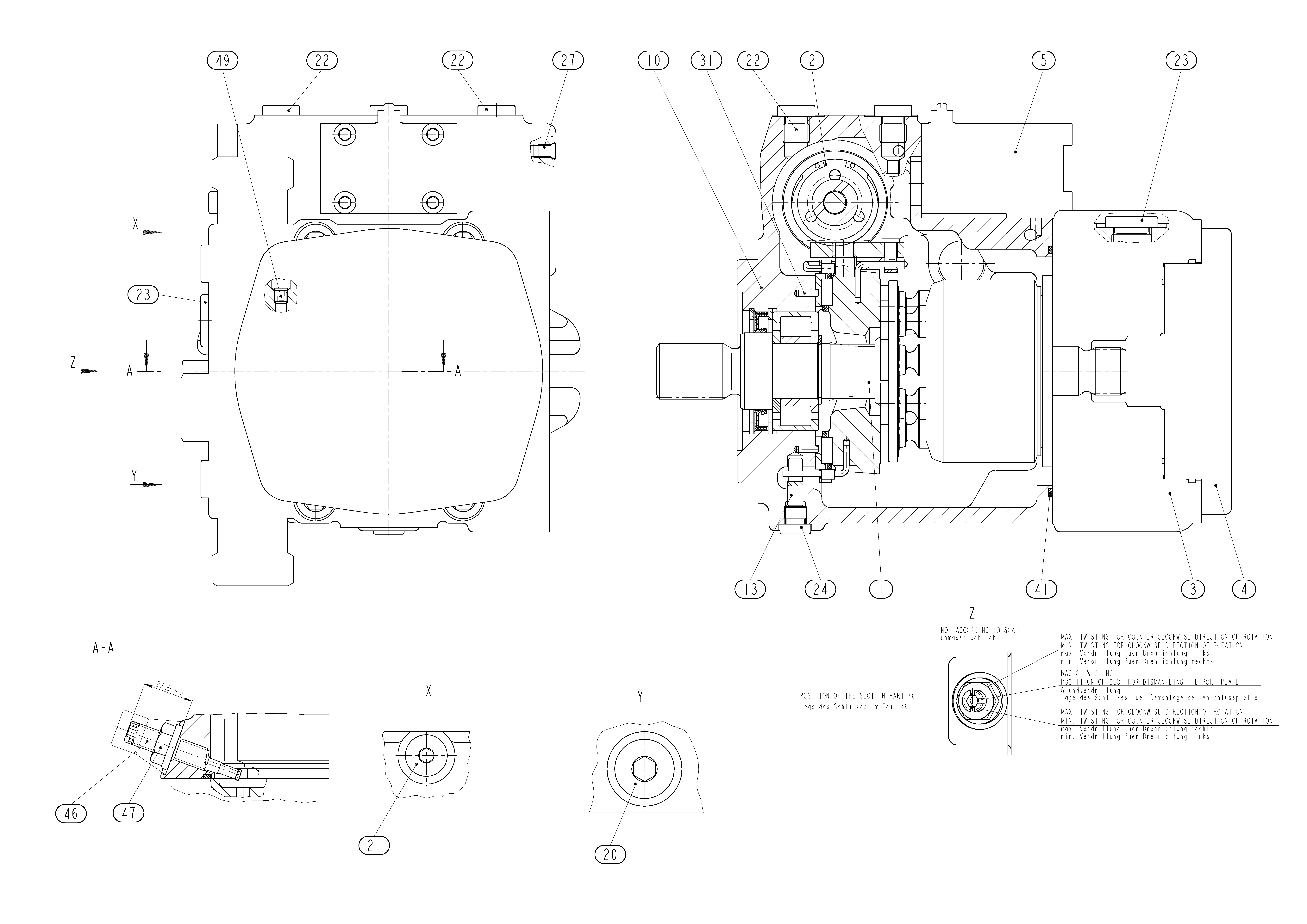

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902102118 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902008104 | CONTROL Assembly parts list →L | 1 | ||
| R902032413 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909602826 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902085561 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R902009427 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909153339 | SCREW PLUG | 1 | ||
| R909153371 | SCREW PLUG | 1 | ||
| R909154478 | SCREW PLUG | 3 | ||
| R909153338 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909086547 | O-RINGD | 1 | ||
| R902039583 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUT | 1 | ||
| R909156497 | NOZZLE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi | AA10V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| DA control valve | Without DA control valve | 1 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a–1976 for single pump | S |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, same side left suction port S bottom | 60 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve direct operated, 3600 … 4650 psi fixed setting (250 … 320 bar) with bypass | 5 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
