Unit · AXIAL-PISTON MOTOR
A6VM150EP600P000B/71MWV0D4T11DV-SR902149234
Axial piston motor Bosch Rexroth series A6VM, type code A6VM150EP600P000B/71MWV0D4T11DV-S, material number R902149234. Nominal size: NG 150. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 24 V (EP6). Pressure control/override: without pressure control/override (00). Swivel angle detection: without (0). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: no setting screw moderate (B). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 152-4 (D4). Drive shaft: splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP (T1). Working port: SAE working ports A and B at rear (1).
- Number
- R902149234
- Type code
- A6VM150EP600P000B/71MWV0D4T11DV-S
- Group
- A6VM 150
- Edition
- 06/2020

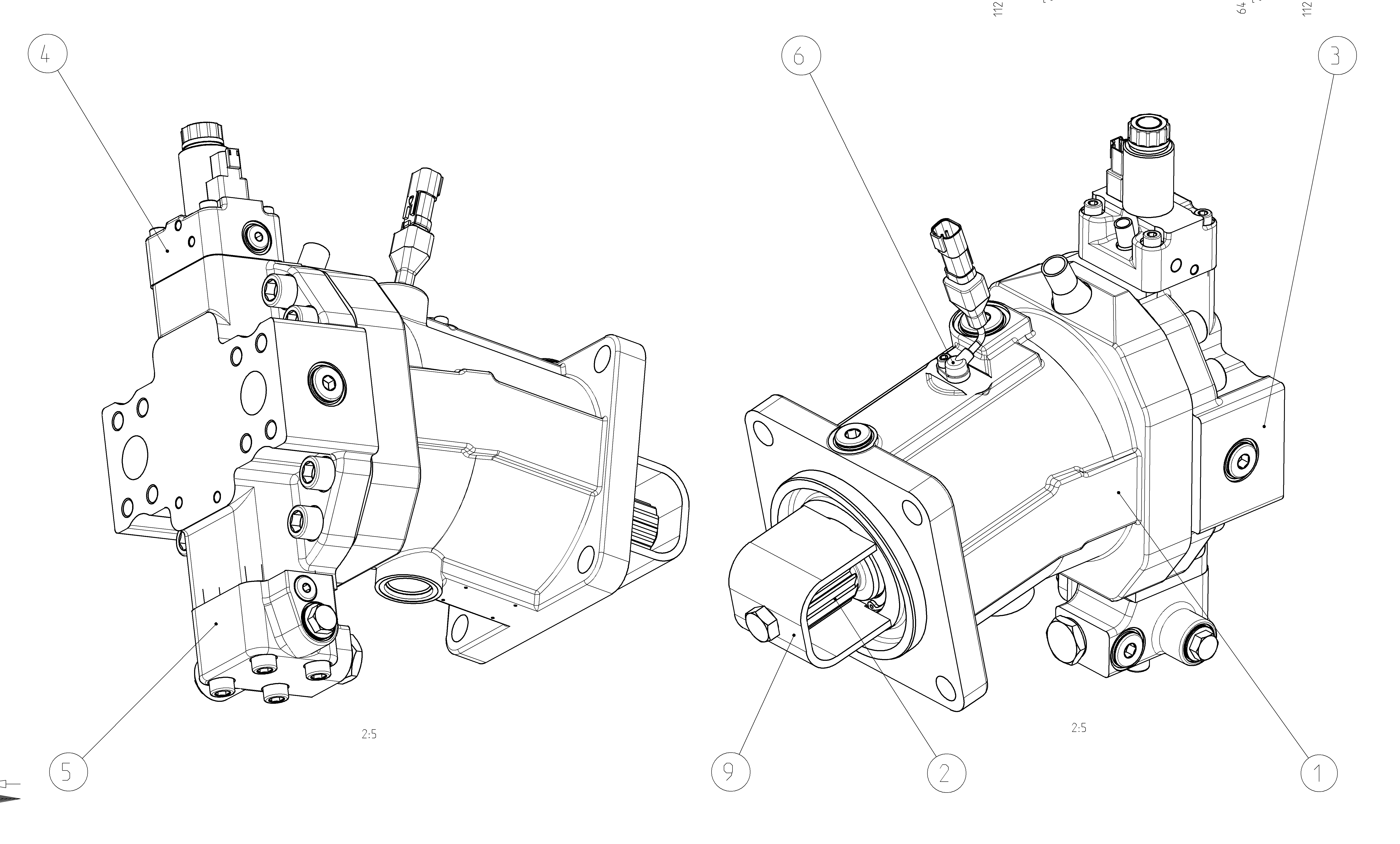

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902186102 | HOUSING Assembly parts list →L | 1 | ||
| R902107959 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902130552 | COVER PLATE Assembly parts list →L | 1 | ||
| R902134664 | CONTROL PART Assembly parts list →L | 1 | ||
| R902130687 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902236083 | SENSOR Assembly parts list →L | 1 | ||
| R902130855 | SHIPPING PROTECTION Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 150 | 150 |
| Control device | Proportional control, electric negative control U = 24 V | EP6 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | No setting screw moderate | B |
| Series | Series 7, Index 1 | 71 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 152-4 | D4 |
| Drive shaft | Splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP | T1 |
| Working port | SAE working ports A and B at rear | 1 |
| Valve | Δp = pND ‒ = 365 psi pG 2.64 (10) | D |
| Speed sensor | With DSA/12 speed sensor mounted | V |
| Standard/special version | Special version | S |
