Unit · AXIAL-PISTON PUMP
A4VG90EP/32+A4VG56EP/32+A4VG56EP/32+AZPFR902149854
Axial piston pump Bosch Rexroth series A4VG, type code A4VG90EP/32+A4VG56EP/32+A4VG56EP/32+AZPF, material number R902149854. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G).
- Number
- R902149854
- Type code
- A4VG90EP/32+A4VG56EP/32+A4VG56EP/32+AZPF
- Group
- A4VG 90
- Edition
- 05/2020

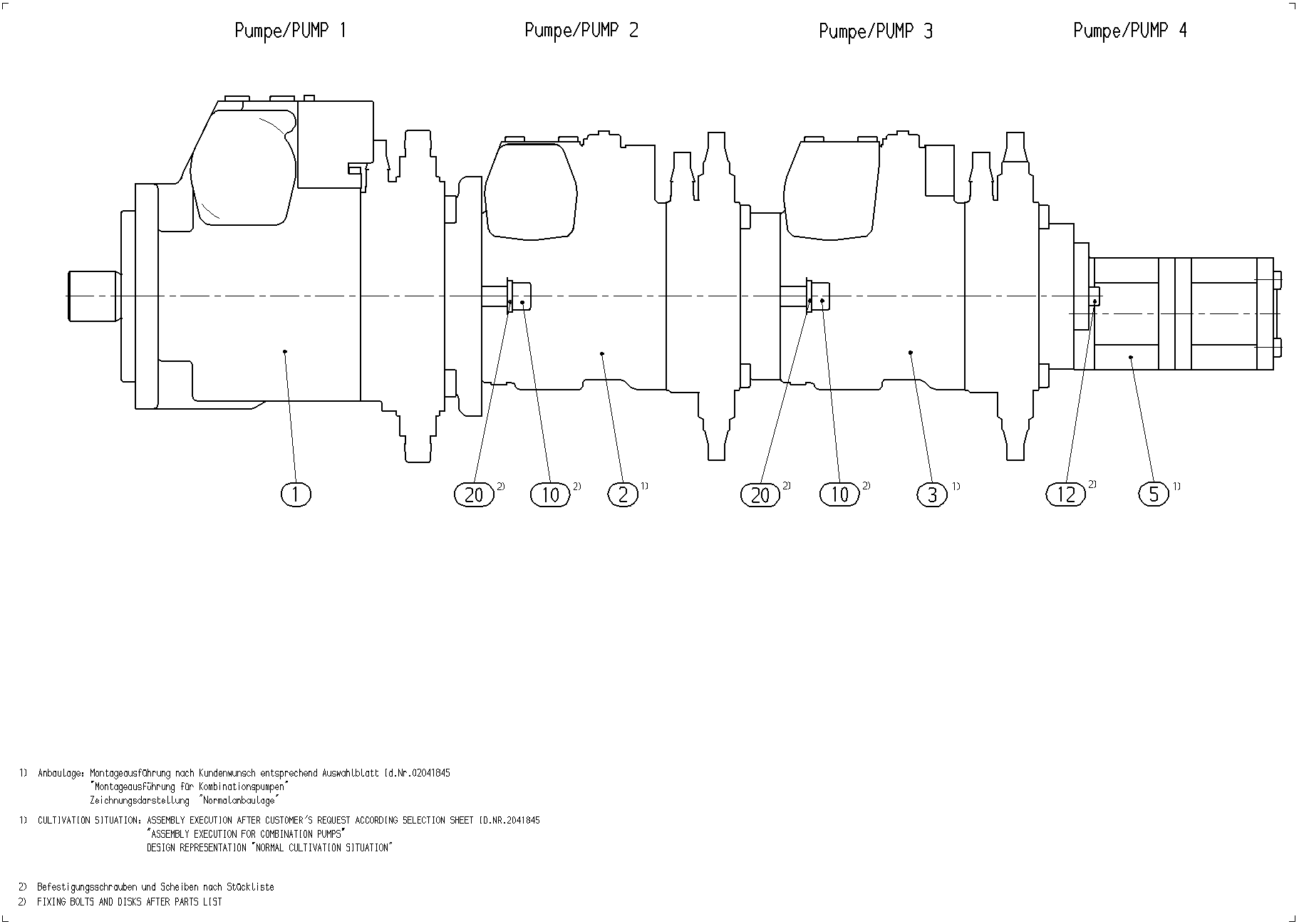

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902149847 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902149849 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902149851 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510565115 | HYDRAULIC GEAR PUMPL | 1 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083058 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430408 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
| Series | Series 3, index 2 | 32 |
