Unit · AXIAL-PISTON MOTOR
A6VE060HA2T30004B/71MWV0P2Z81A0-0R902150313
Axial piston motor Bosch Rexroth series A6VE, type code A6VE060HA2T30004B/71MWV0P2Z81A0-0, material number R902150313. Nominal size: NG 60. Axial piston unit: bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) (A6V). Operating mode: plug-in motor (E). Control device: automatic control High pressure dependent, positive control with pressure increase Δp = 100 bar (HA2). Pressure control/override: override of the HA1, HA2, and HA3 controls, hydraulically remote controlled, proportional (T3). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Stroking time damping: damping One-sided in inlet to large stroking chamber (HA) (4). Setting range for displacement: no setting screw moderate (B). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-2 (P2). Drive shaft: splined shaft W35×2×16×9g DIN 5480 (Z8).
- Number
- R902150313
- Type code
- A6VE060HA2T30004B/71MWV0P2Z81A0-0
- Group
- A6VE 60
- Edition
- 06/2020

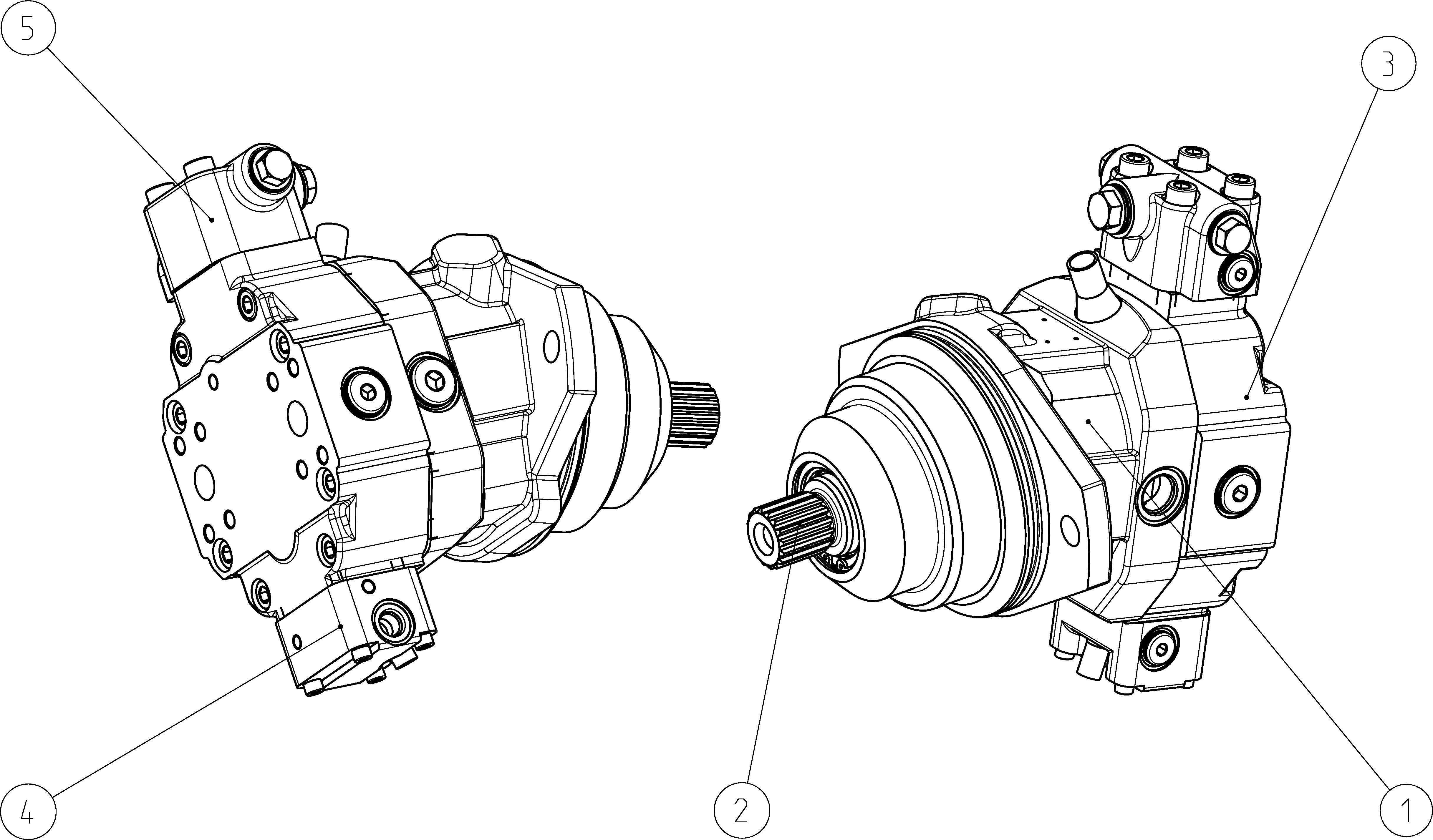

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902216311 | HOUSING Assembly parts list →L | 1 | ||
| R902126962 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902206566 | COVER PLATE Assembly parts list →L | 1 | ||
| R902206924 | CONTROL PART Assembly parts list →L | 1 | ||
| R902203889 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 60 | 060 |
| Control device | Automatic control High pressure dependent, positive control with pressure increase Δp = 100 bar | HA2 |
| Pressure control/override | Override of the HA1, HA2, and HA3 controls, hydraulically remote controlled, proportional | T3 |
| Without connector (without solenoid, only for hydraulic control) | 0 | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Stroking time damping | Damping One-sided in inlet to large stroking chamber (HA) | 4 |
| Setting range for displacement | No setting screw moderate | B |
| Series | Series 7, Index 1 | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-2 | P2 |
| Drive shaft | Splined shaft W35×2×16×9g DIN 5480 | Z8 |
| Working port | SAE working ports A and B at rear | 1 |
| Valve | Flushing flow qv [l/min], flushing on both sides 3.5 | A |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Standard version | 0 |
