Unit · AXIAL-PISTON MOTOR
A6VE28HD6/63W-VAL020U0B-SR902150344
Axial piston motor Bosch Rexroth series A6VM, type code A6VE28HD6/63W-VAL020U0B-S, material number R902150344. Nominal size: NG 28. Axial piston unit: bent-axis design, variable (A6V). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R902150344
- Type code
- A6VE28HD6/63W-VAL020U0B-S
- Group
- A6VE 28
- Edition
- 06/2020

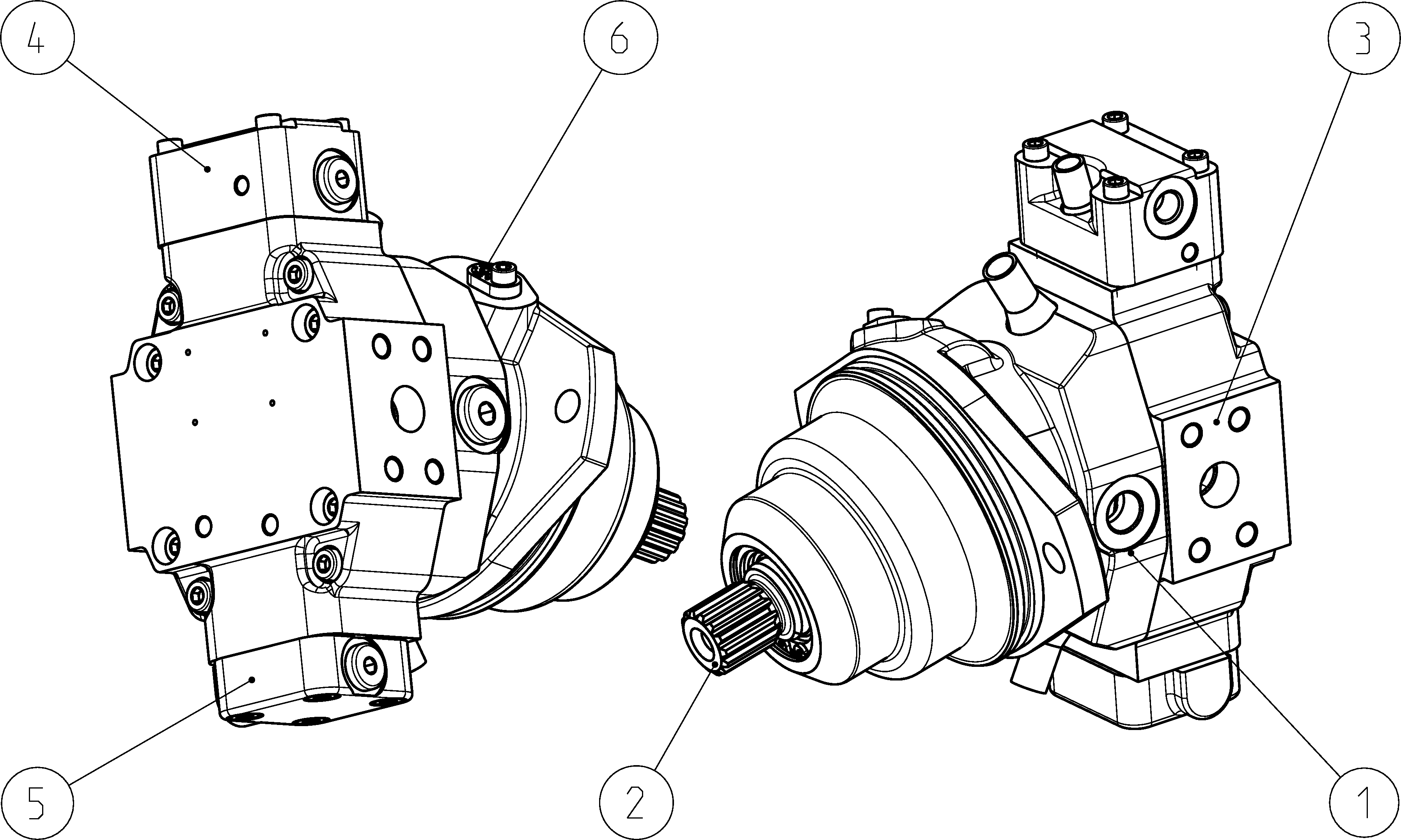

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902189132 | HOUSING Assembly parts list →L | 1 | ||
| R902024677 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902186450 | COVER PLATE Assembly parts list →L | 1 | ||
| R902115928 | CONTROL PART Assembly parts list →L | 1 | ||
| R902196984 | COVER Assembly parts list →L | 1 | ||
| R902191651 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 28 | 28 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
