Unit · POMPA OSIOWO-TŁOKOWA
AA4VG90EP7D1/32R-NSFX3K021EP-SR902154970
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG90EP7D1/32R-NSFX3K021EP-S, material number R902154970. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump ANSI B92.1a (S). Mounting flange: SAE J744 2+4-hole (F). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 Hub for splined shaft, 101-2 (B) 7/8 in 13T 16/32DP (02). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 1450 to 6100 psi with bypass (100 to 420 bar) (1). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E). Connector for solenoids: DEUTSCH connector without suppressor diode molded, 2-pin (P). Standard/special version: special version (-S).
- Number
- R902154970
- Type code
- AA4VG90EP7D1/32R-NSFX3K021EP-S
- Group
- A4VG 90
- Edition
- 06/2020

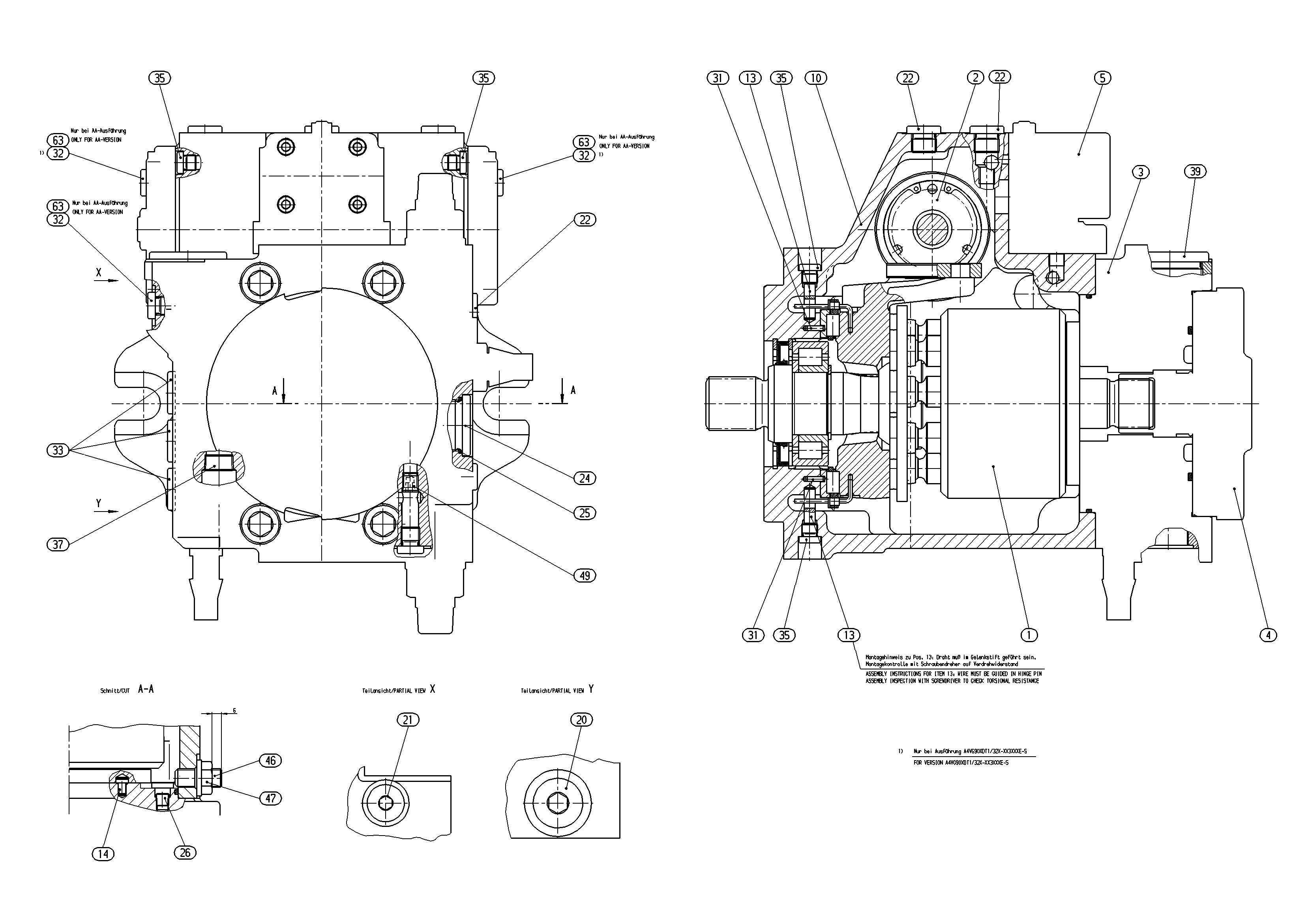

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902195460 | MECHANIZM NAPĘDOWY Assembly parts list →L | 1 | ||
| R902016006 | STEROWANIE Assembly parts list →L | 1 | ||
| R902157787 | PŁYTA POŁĄCZENIOWA Assembly parts list →L | 1 | ||
| R902157780 | WSPORNIK NOŚNY Assembly parts list →L | 1 | ||
| R902113872 | MODUŁ STEROWANIA Assembly parts list →L | 1 | ||
| R902154804 | KORPUS | 1 | ||
| R902114380 | SWORZEŃ OBROTU | 2 | ||
| R909405732 | SZTYFT POZYCJONUJĄCY | 1 | ||
| R909154480 | KOREK GWINTOWANYD | 1 | ||
| R909153338 | KOREK GWINTOWANYD | 2 | ||
| R909153371 | KOREK GWINTOWANYD | 3 | ||
| R909083228 | KOREK GWINTOWANY | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | KOREK GWINTOWANY | 1 | ||
| R913016373 | KOŁEK SPRĘŻYNUJĄCY | 2 | ||
| R909151694 | KOREK GWINTOWANYD | 3 | ||
| R909153364 | KOREK GWINTOWANYD | 4 | ||
| R909087913 | KOREK GWINTOWANY | 1 | ||
| R909153418 | KOREK GWINTOWANYD | 1 | ||
| R909154982 | SZTYFT GWINTOWANY | 1 | ||
| R909087405 | NAKRĘTKA USZCZELNIAJĄCAD | 1 | ||
| R909426706 | DYSZA | 1 | ||
| R909154478 | KOREK GWINTOWANYD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump ANSI B92.1a | S |
| Mounting flange | SAE J744 2+4-hole | F |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 Hub for splined shaft, 101-2 (B) 7/8 in 13T 16/32DP | 02 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 1450 to 6100 psi with bypass (100 to 420 bar) | 1 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
| Connector for solenoids | DEUTSCH connector without suppressor diode molded, 2-pin | P |
| Standard/special version | Special version | -S |
