Unit · A6VE107
A6VE107R902155105
Axial piston motor Bosch Rexroth series A6VE, type code A6VE107, material number R902155105. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Operating mode: plug-in motor (E).
- Number
- R902155105
- Type code
- A6VE107
- Group
- A6VE 107
- Edition
- 06/2020

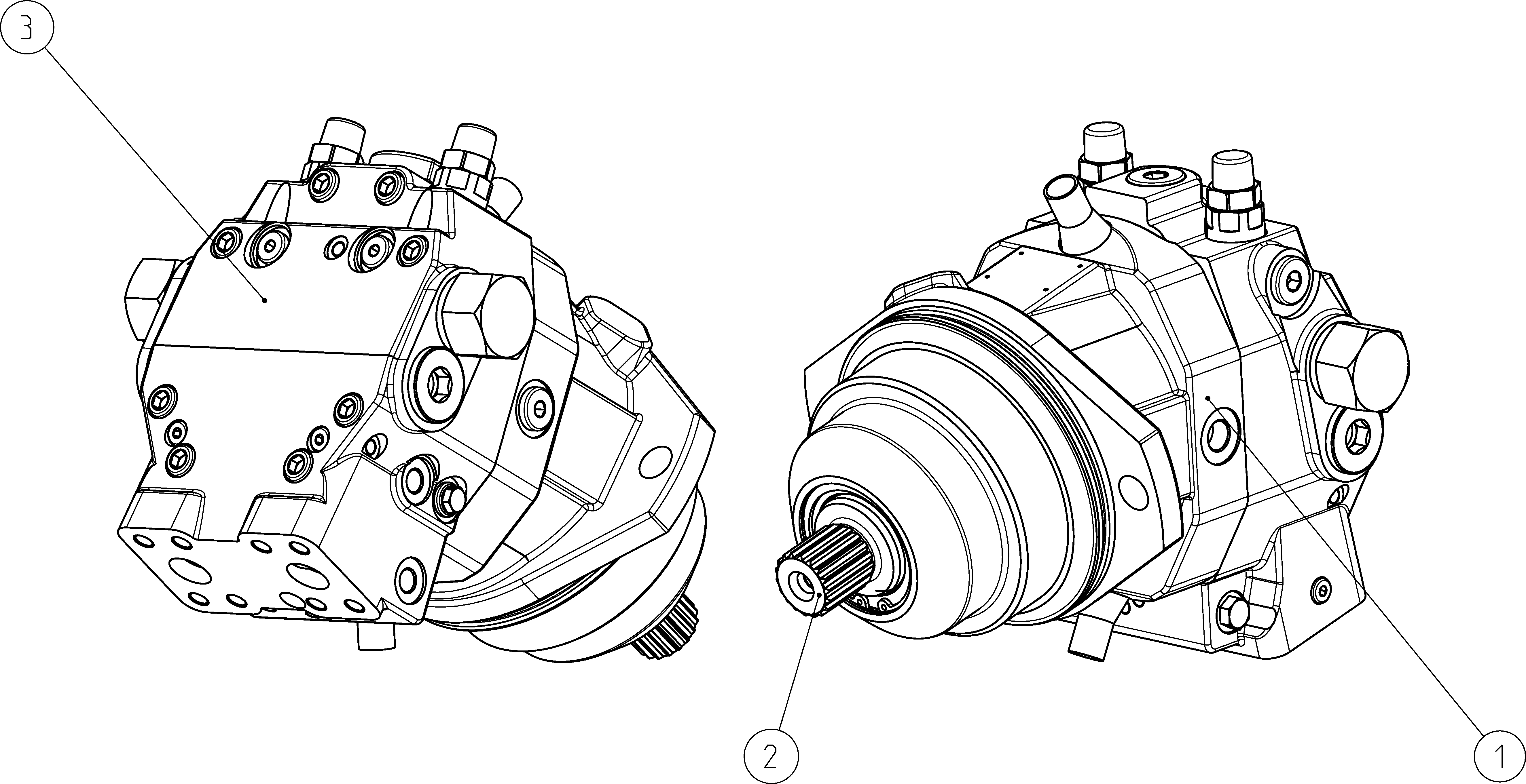

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902209676 | HOUSING Assembly parts list →L | 1 | ||
| R909603781 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902194420 | COVER PLATE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 107 | 107 |
