Unit · AXIAL-PISTON MOTOR
A6VE060EP100P000A/71MWV0P2Z62BU-SR902155120
Axial piston motor Bosch Rexroth series A6VE, type code A6VE060EP100P000A/71MWV0P2Z62BU-S, material number R902155120. Nominal size: NG 60. Axial piston unit: bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) (A6V). Operating mode: plug-in motor (E). Control device: proportional control positive control U = 12 V electric (EP1). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: no setting screw short (0-adjustable) (A). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-2 (P2). Working port: SAE working ports A and B at side, opposite (2).
- Number
- R902155120
- Type code
- A6VE060EP100P000A/71MWV0P2Z62BU-S
- Group
- A6VE 60
- Edition
- 06/2020

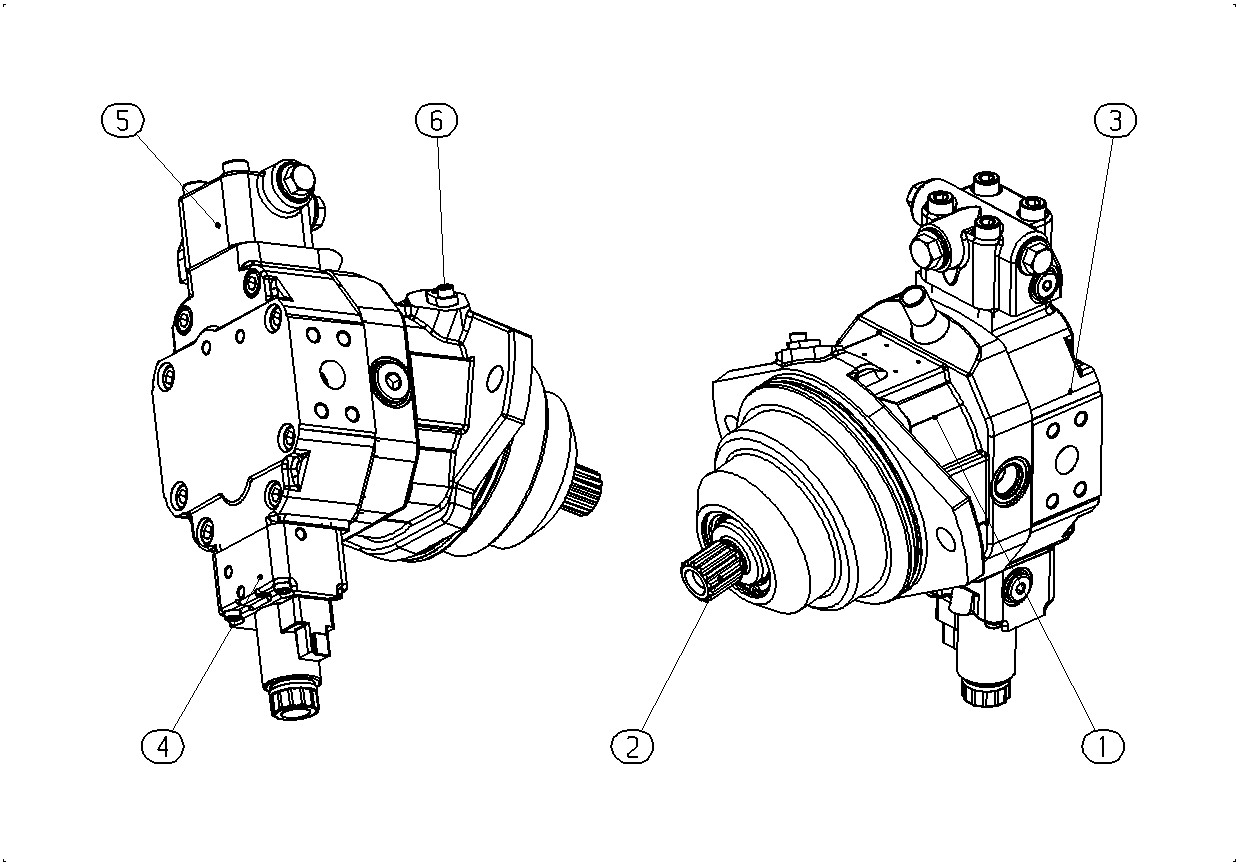

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902163917 | HOUSING Assembly parts list →L | 1 | ||
| R902151569 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902110222 | COVER PLATE Assembly parts list →L | 1 | ||
| R902110229 | CONTROL PART Assembly parts list →L | 1 | ||
| R902151861 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902191651 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 60 | 060 |
| Control device | Proportional control positive control U = 12 V electric | EP1 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | No setting screw short (0-adjustable) | A |
| Series | Series 7, Index 1 | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-2 | P2 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | Flushing flow qv [l/min], flushing flow when: Δp = pND ‒ = 25 bar and = 10 pG ν mm2/s 5 | B |
| Speed sensor | Prepared for DSA speed sensor | U |
| Standard/special version | Special version | S |
