Unit · AXIAL-PISTON MOTOR
A6VE107HA2/63W-VZU017V0A-SR902155122
Axial piston motor Bosch Rexroth series A6VM, type code A6VE107HA2/63W-VZU017V0A-S, material number R902155122. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Control device: automatic control, high-pressure related with pressure increase Δp = 100 bar (HA2). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Working port: SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 (017). Swivel angle sensor: optical swivel angle sensor (V). Standard/special version: special version (-S).
- Number
- R902155122
- Type code
- A6VE107HA2/63W-VZU017V0A-S
- Group
- A6VE 107
- Edition
- 06/2020

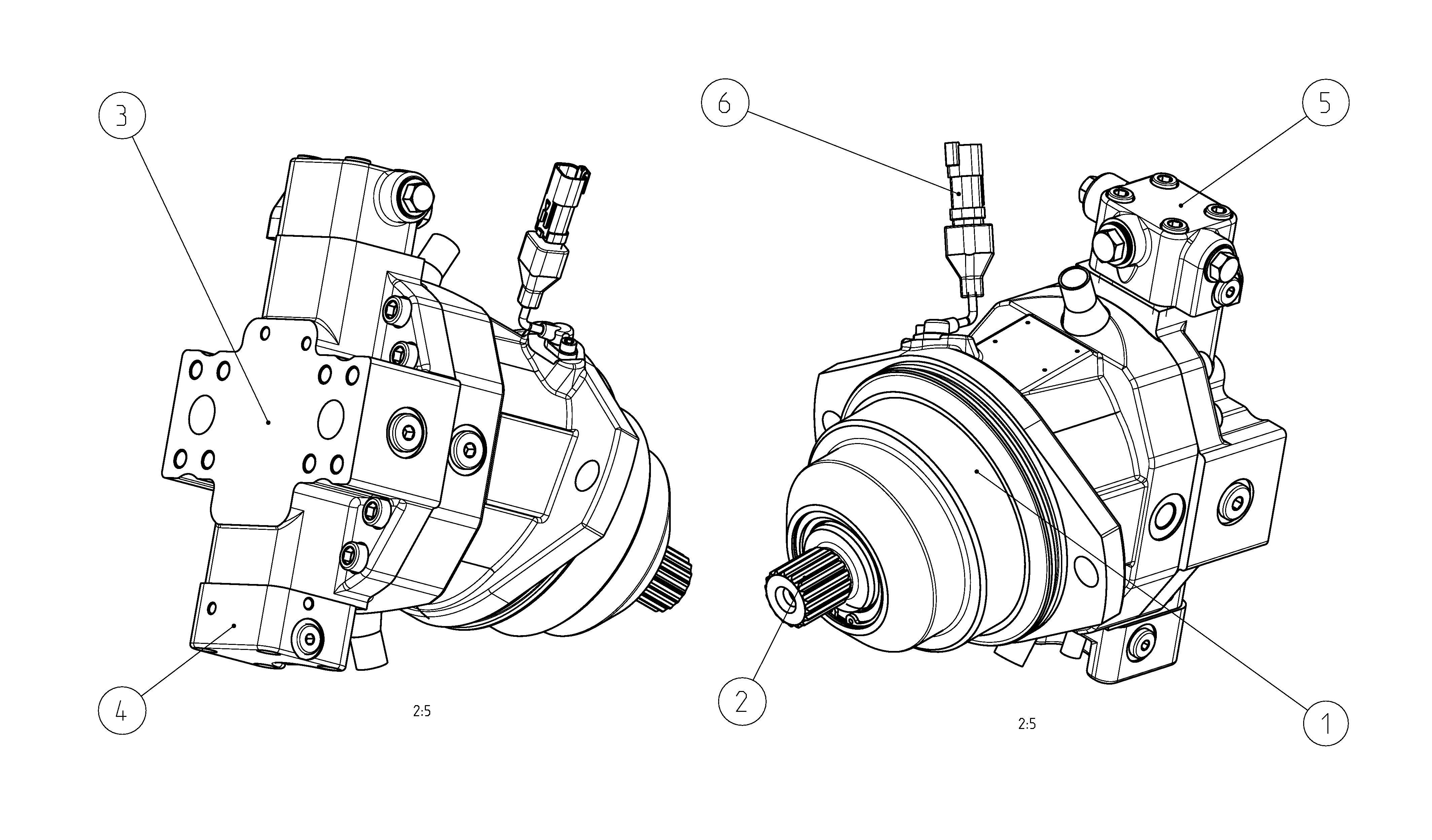

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902221850 | HOUSING Assembly parts list →L | 1 | ||
| R909604694 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902158798 | COVER PLATE Assembly parts list →L | 1 | ||
| R909604164 | CONTROL PART Assembly parts list →L | 1 | ||
| R902212549 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902236085 | SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 107 | 107 |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 100 bar | HA2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Working port | SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 | 017 |
| Swivel angle sensor | Optical swivel angle sensor | V |
| Standard/special version | Special version | -S |
