Unit · AXIAL-PISTON MOTOR
A6VE107EP1/63W-VZL027FPAR902155139
Axial piston motor Bosch Rexroth series A6VM, type code A6VE107EP1/63W-VZL027FPA, material number R902155139. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Control device: proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) (EP1). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R902155139
- Type code
- A6VE107EP1/63W-VZL027FPA
- Group
- A6VE 107
- Edition
- 06/2020

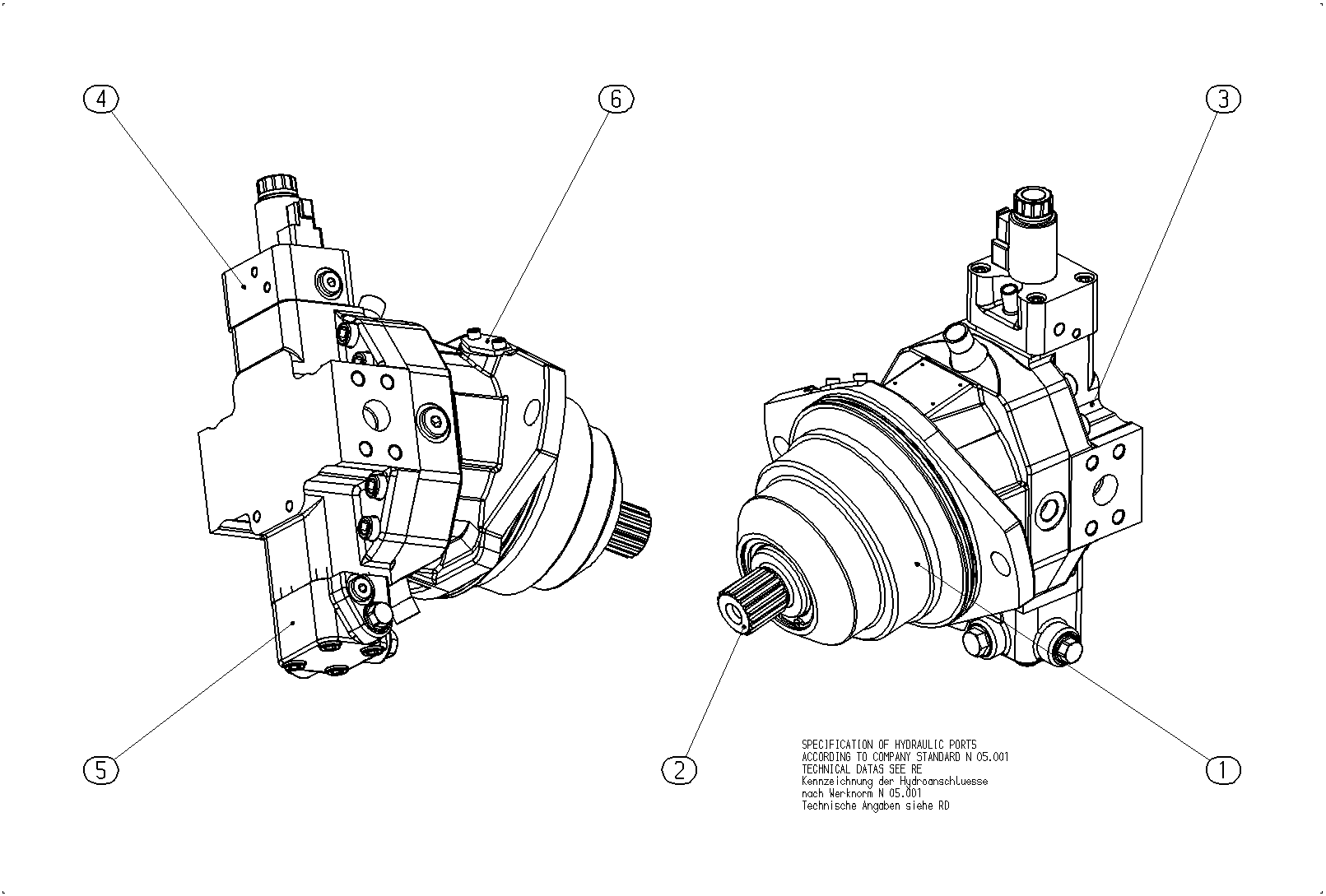

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902156143 | HOUSING Assembly parts list →L | 1 | ||
| R909604694 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902156144 | COVER PLATE Assembly parts list →L | 1 | ||
| R902139949 | CONTROL PART Assembly parts list →L | 1 | ||
| R902203956 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 107 | 107 |
| Control device | Proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) | EP1 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg min (standard for HA) | A |
