Unit · AXIAL-PISTON MOTOR
A6VM085EP600P000H/71AWV0C2S72B0-SR902155708
Axial piston motor Bosch Rexroth series A6VM, type code A6VM085EP600P000H/71AWV0C2S72B0-S, material number R902155708. Nominal size: NG 85. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 24 V (EP6). Pressure control/override: without pressure control/override (00). Swivel angle detection: without (0). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: short extra long (H). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 127-2 (C2). Drive shaft: splined shaft ANSI B92.1a 1 1/4 in 14T 12/24 DP (S7). Working port: SAE working ports A and B at side, opposite (2).
- Number
- R902155708
- Type code
- A6VM085EP600P000H/71AWV0C2S72B0-S
- Group
- A6VM 85
- Edition
- 06/2020

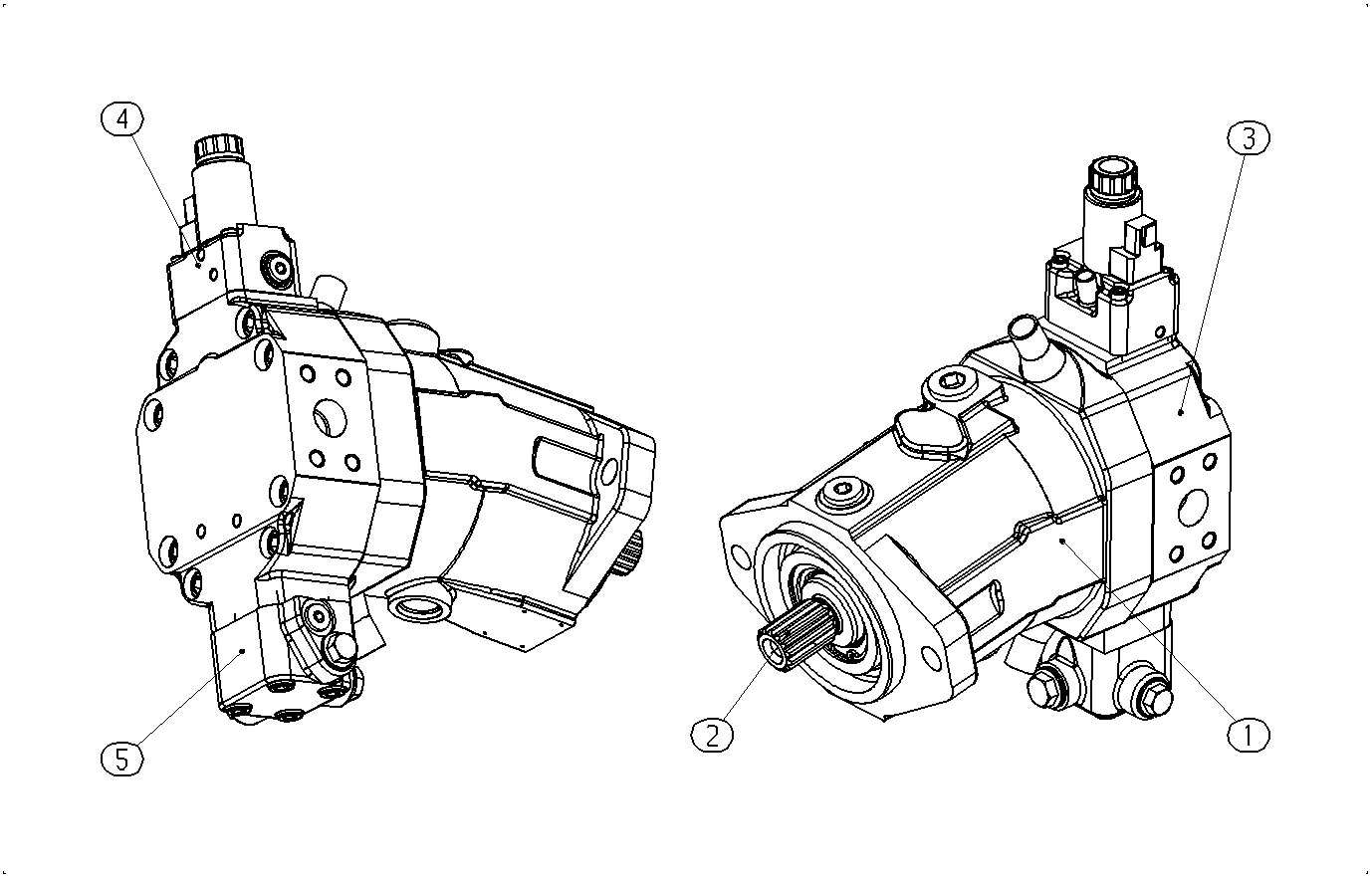

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902251207 | HOUSING Assembly parts list →L | 1 | ||
| R902149346 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902163657 | COVER PLATE Assembly parts list →L | 1 | ||
| R902163659 | CONTROL PART Assembly parts list →L | 1 | ||
| R902163660 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| 98 | R902221163 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 85 | 085 |
| Control device | Proportional control, electric negative control U = 24 V | EP6 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | short extra long | H |
| Series | Series 7, Index 1 | 71 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 127-2 | C2 |
| Drive shaft | Splined shaft ANSI B92.1a 1 1/4 in 14T 12/24 DP | S7 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | sure valve mounted, [gpm (l/min)] 1.32 (5) | B |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Special version | S |
