Unit · AXIAL-PISTON MOTOR
A6VM085HA1R1P001B/71MWV0N4Z92D-YR902156191
Axial piston motor Bosch Rexroth series A6VM, type code A6VM085HA1R1P001B/71MWV0N4Z92D-Y, material number R902156191. Nominal size: NG 85. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: automatic high-pressure With minimum pressure Δp ≤ approx. related control, positive increase 10 bar control (HA1). Pressure control/override: override of the HA1 and HA2 controls electric and travel U = 12 V direction valve, electric (R1). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with (1). Setting range for displacement: without setting screw moderate (B). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 140-4 (N4).
- Number
- R902156191
- Type code
- A6VM085HA1R1P001B/71MWV0N4Z92D-Y
- Group
- A6VM 85
- Edition
- 06/2020

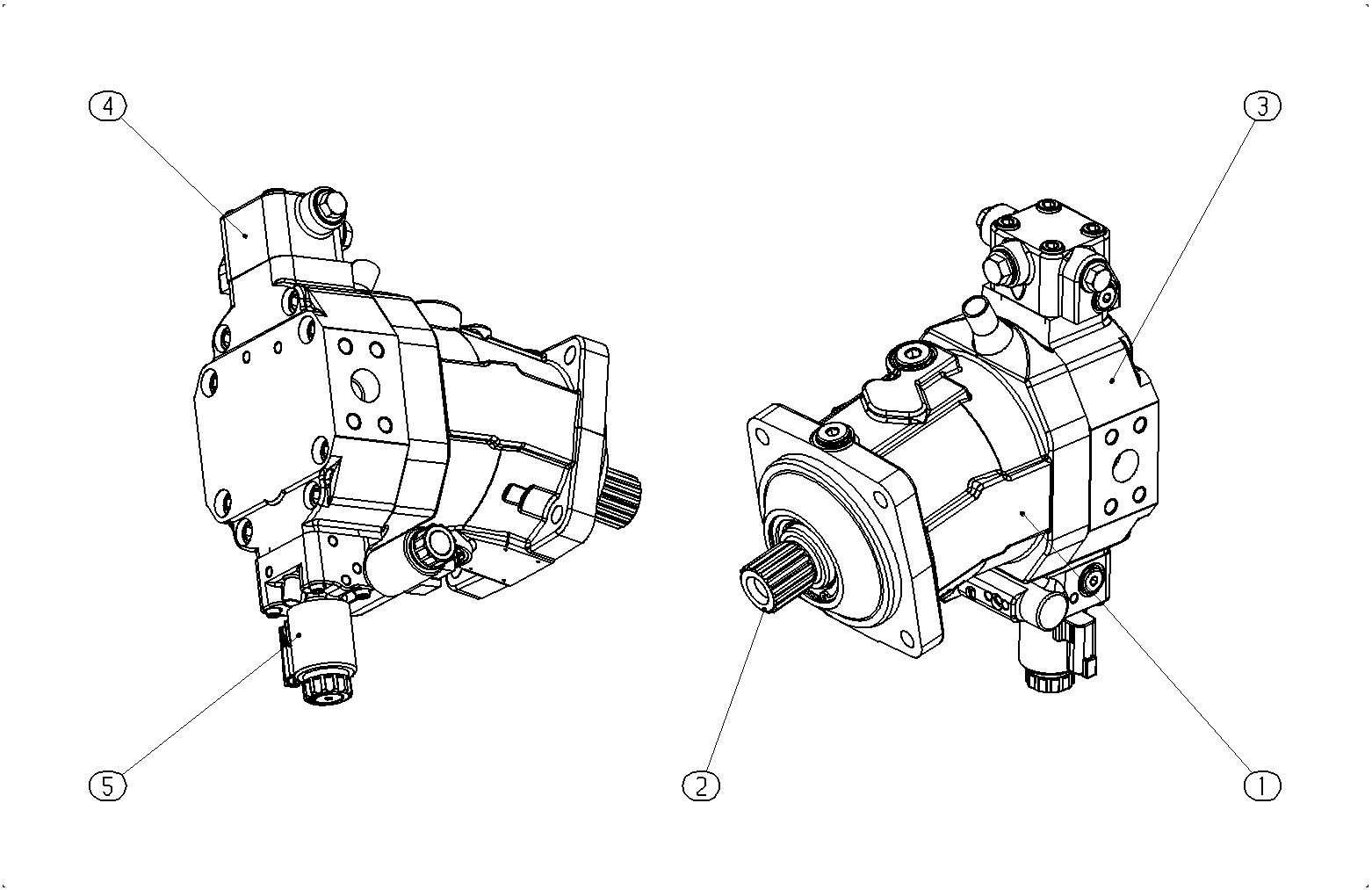

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902163541 | HOUSING Assembly parts list →L | 1 | ||
| R902121900 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902156193 | COVER PLATE Assembly parts list →L | 1 | ||
| R902156194 | CONTROL PART Assembly parts list →L | 1 | ||
| R902156196 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 85 | 085 |
| Control device | Automatic high-pressure With minimum pressure Δp ≤ approx. related control, positive increase 10 bar control | HA1 |
| Pressure control/override | Override of the HA1 and HA2 controls electric and travel U = 12 V direction valve, electric | R1 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with | 1 |
| Setting range for displacement | Without setting screw moderate | B |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 140-4 | N4 |
| Drive shaft | Splined shaft DIN 5480 W40×2×18×9g | Z9 |
| Working port | SAE working ports A and B lateral, opposite | 2 |
| Valve | 10 | D |
| Standard/special version | Standard version with installation variants, e.g. T ports open or closed | Y |
