Unit · AXIAL-PISTON PUMP
A4VG045EP20PRX0/40+A6VM060EP500P000A/71MR902157034
Axial piston pump Bosch Rexroth series A4VG, type code A4VG045EP20PRX0/40+A6VM060EP500P000A/71M, material number R902157034. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Pressure cut-off: without pressure cut-off without bypass (0). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: electric swivel angle sensor (DWS20-1, 3-pin) (R). DA control valve (only for NG110 and 125): without DA control valve (0).
- Number
- R902157034
- Type code
- A4VG045EP20PRX0/40+A6VM060EP500P000A/71M
- Group
- A6VM 60
- Edition
- 01/2020

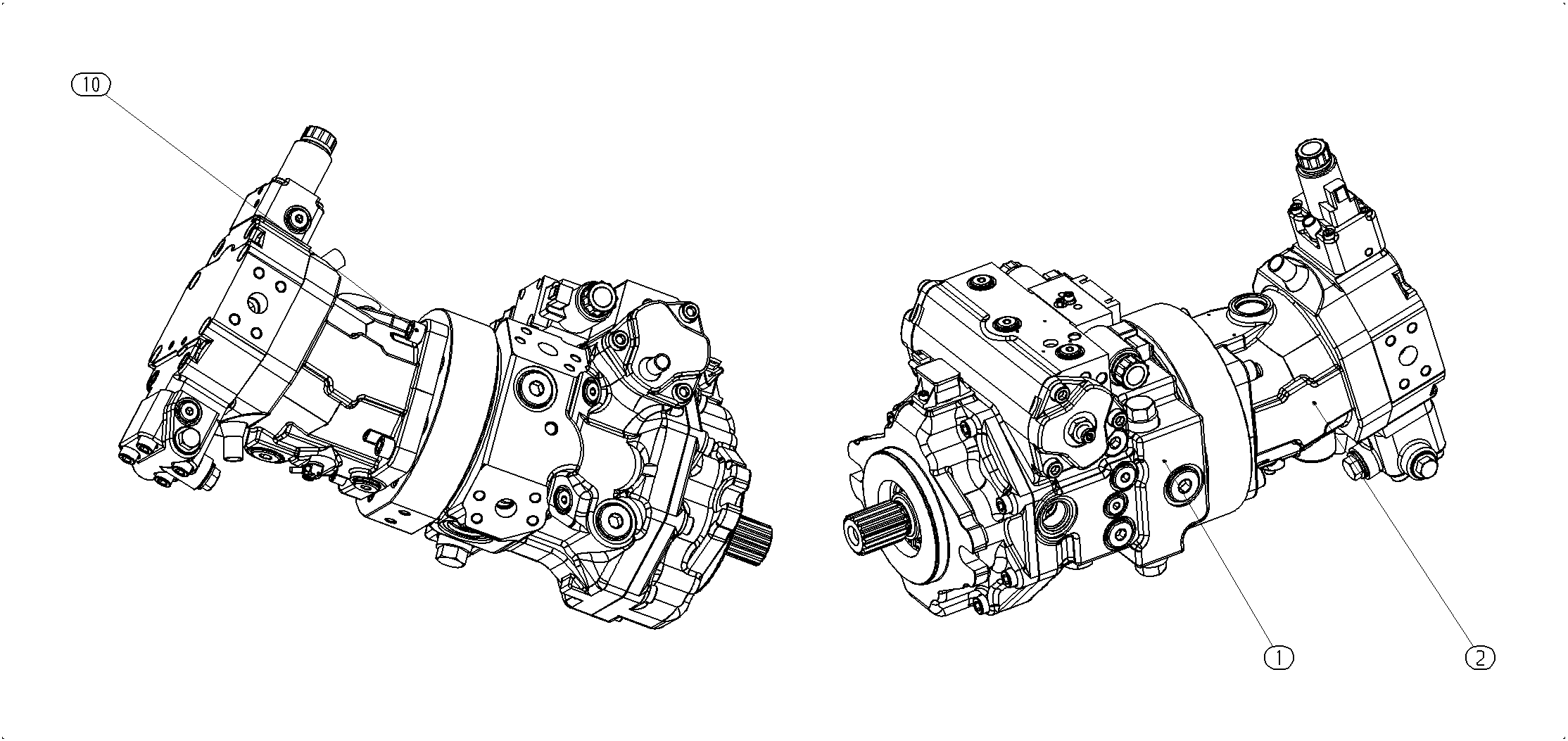

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902157032 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 3 | R902156330 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| R909083092 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 45 | 045 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Pressure cut-off | Without pressure cut-off without bypass | 0 |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Electric swivel angle sensor (DWS20-1, 3-pin) | R |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
