Unit · AXIAL-PISTON PUMP
A4VG145EP2/40+A4VG085EP2/40+A10VG63EP4-KR902157250
Axial piston pump Bosch Rexroth series A4VG, type code A4VG145EP2/40+A4VG085EP2/40+A10VG63EP4-K, material number R902157250. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Connector for solenoids: without connector (only for purely hydraulic control) (0).
- Number
- R902157250
- Type code
- A4VG145EP2/40+A4VG085EP2/40+A10VG63EP4-K
- Group
- A10VG 63
- Edition
- 01/2020

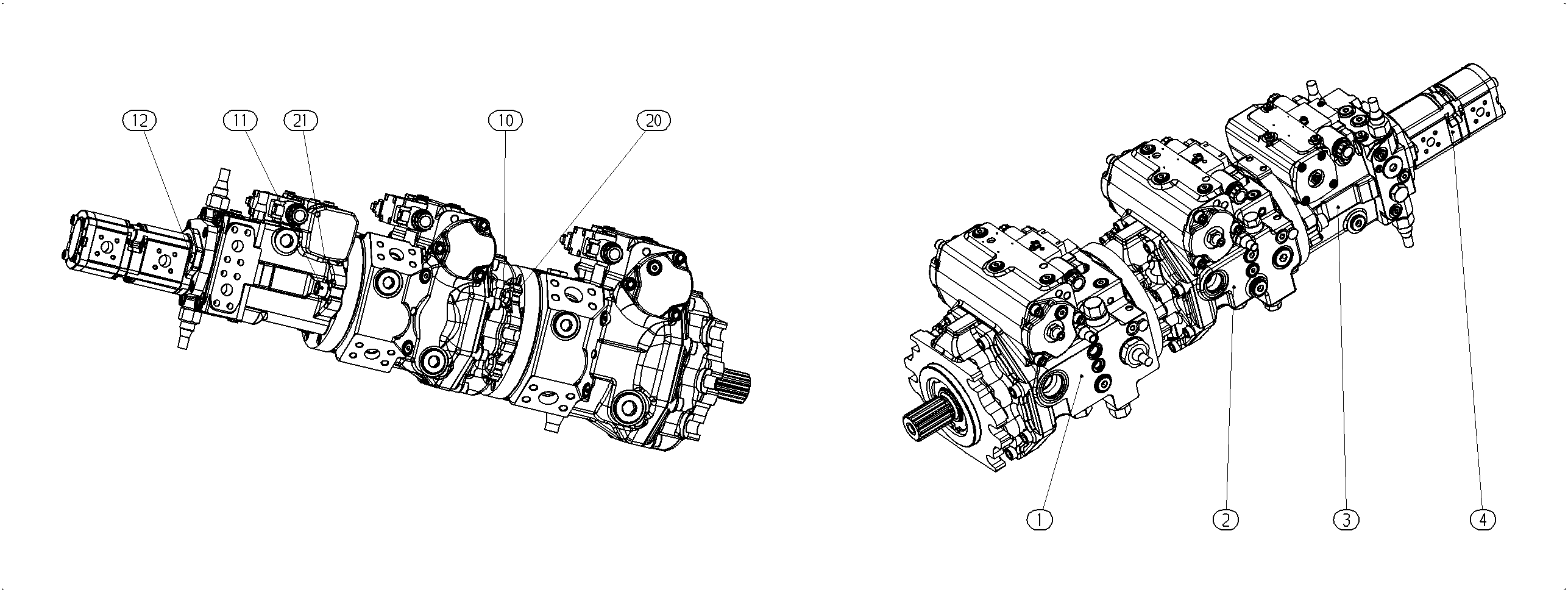

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902157232 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902157245 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902159011 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510765056 | HYDRAULIC GEAR PUMPL | 1 | ||
| R909083708 | HEXAGON SCREW | 4 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 2 | ||
| 13 | R909083058 | SOCKET HEAD CAP SCREW | 2 | |
| R909430409 | WASHER | 4 | ||
| R909430408 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 145 | 145 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Connector for solenoids | Without connector (only for purely hydraulic control) | 0 |
