Unit · AXIAL-PISTON PUMP
A10VG28HD3/10+A10VG28DG/10R902157961
Axial piston pump Bosch Rexroth series A10VG, type code A10VG28HD3/10+A10VG28DG/10, material number R902157961. Nominal size: NG 28. Operating mode: pump, closed circuit (G). Control device: proportional control, hydraulic pilot-pressure related, with inlet filtration in P and X1/X (HD3).
- Number
- R902157961
- Type code
- A10VG28HD3/10+A10VG28DG/10
- Group
- A10VG 28
- Edition
- 06/2020

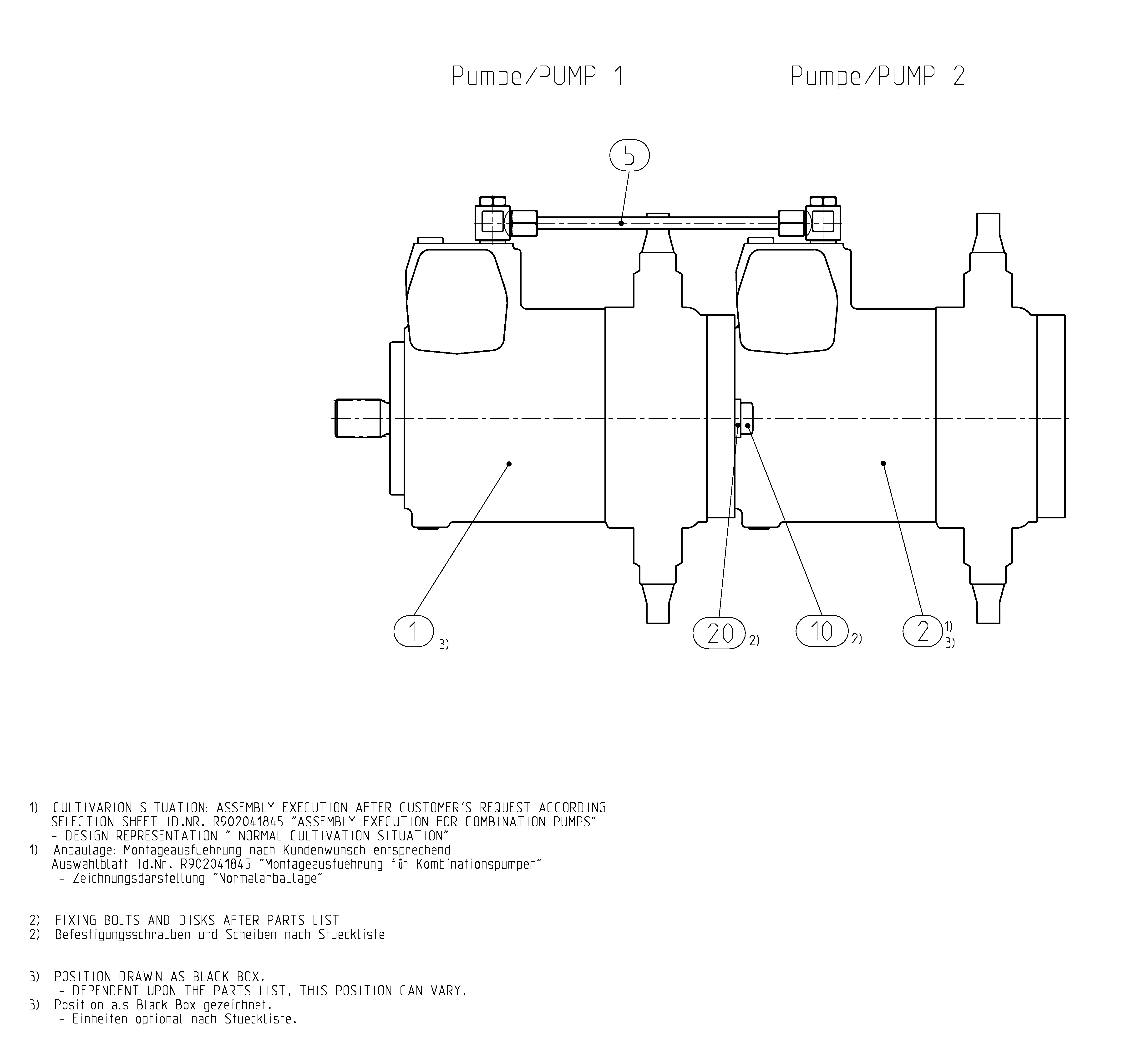

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902157963 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902157965 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902030186 | HYDRAULIC LINE Assembly parts list →L | 2 | ||
| R909083089 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430409 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| Control device | Proportional control, hydraulic pilot-pressure related, with inlet filtration in P and X1/X | HD3 |
| Series | Series 1, index 0 | 10 |
