Unit · AXIAL-PISTON MOTOR
A6VM150HA1TX000XF/71AWV0D4T12D0-SR902158827
Axial piston motor Bosch Rexroth series A6VM, type code A6VM150HA1TX000XF/71AWV0D4T12D0-S, material number R902158827. Nominal size: NG 150. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: automatic control with minimum pressure Δp ≤ approx. 145 psi high-pressure related, increase (10 bar) positive control (HA1). Swivel angle detection: without (0). Additional function: without additional function (0). Setting range for displacement: short moderate (F). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 152-4 (D4). Drive shaft: splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP (T1). Working port: SAE working ports A and B at side, opposite (2). Valve: δp = pND ‒ = 365 psi pG 2.64 (10) (D). Speed sensor: without speed sensor (0).
- Number
- R902158827
- Type code
- A6VM150HA1TX000XF/71AWV0D4T12D0-S
- Group
- A6VM 150
- Edition
- 06/2020

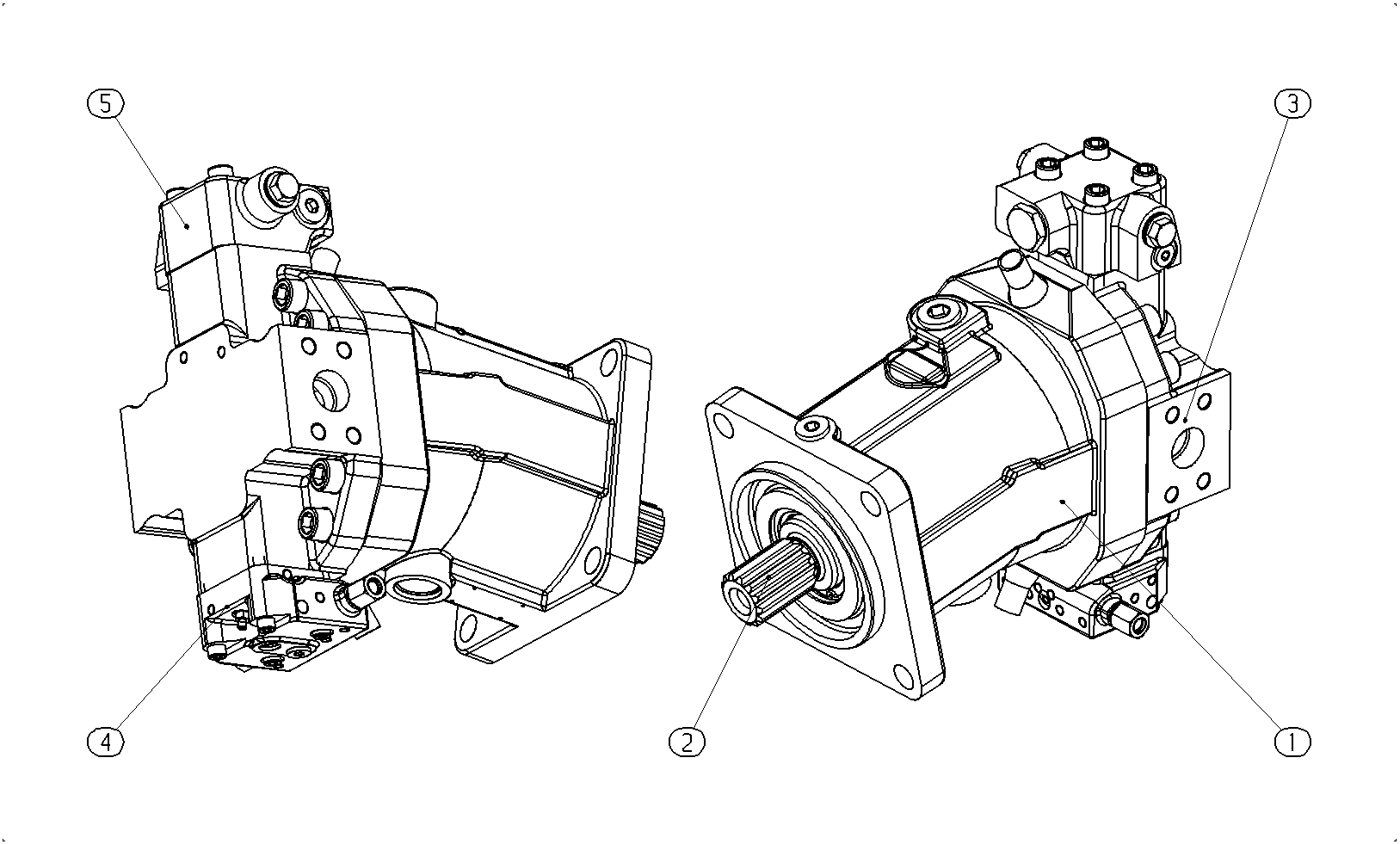

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902158829 | HOUSING Assembly parts list →L | 1 | ||
| R902139859 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902158830 | COVER PLATE Assembly parts list →L | 1 | ||
| R902158833 | CONTROL PART Assembly parts list →L | 1 | ||
| R902158869 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 150 | 150 |
| Control device | Automatic control with minimum pressure Δp ≤ approx. 145 psi high-pressure related, increase (10 bar) positive control | HA1 |
| Without damping (without solenoid, only for hydraulic control) | 0 | |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Setting range for displacement | short moderate | F |
| Series | Series 7, Index 1 | 71 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 152-4 | D4 |
| Drive shaft | Splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP | T1 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | Δp = pND ‒ = 365 psi pG 2.64 (10) | D |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Special version | S |
