Unit · AXIAL-PISTON MOTOR

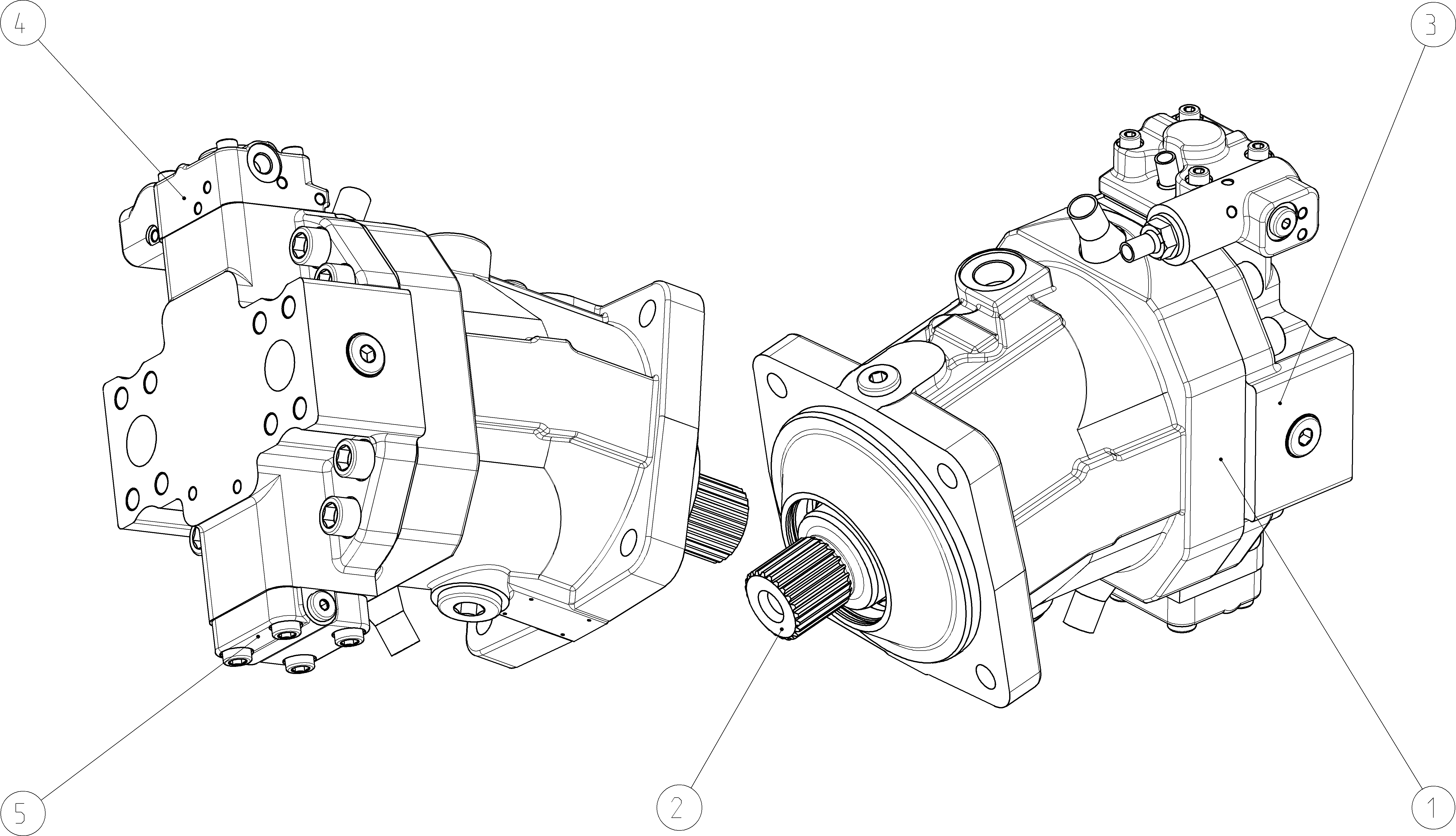

A6VM170HP5D10001G/71NWV0R4A2100-SR902158899
Axial piston motor Bosch Rexroth series A6VM, type code A6VM170HP5D10001G/71NWV0R4A2100-S, material number R902158899. Nominal size: NG 170. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic negative control ΔpSt = 10 bar (HP5). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EP5 and EP6 (D1). Connector for solenoids: without connectors (only for purely hydraulic control) (0). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with (1). Setting range for displacement: short long (G). Version of port and fastening threads: metric ports threads with profile sealing ring based on DIN 3852, metric fastening thread according to DIN 13 (N). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 180-4 (R4).
- Number
- R902158899
- Type code
- A6VM170HP5D10001G/71NWV0R4A2100-S
- Group
- A6VM 170
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902200376 | HOUSING Assembly parts list →L | 1 | ||
| R902277875 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902279489 | COVER PLATE Assembly parts list →L | 1 | ||
| R902158901 | CONTROL PART Assembly parts list →L | 1 | ||
| R902158562 | COVER Assembly parts list →L | 1 | ||
| 98 | R902166621 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 170 | 170 |
| Control device | Proportional control, hydraulic negative control ΔpSt = 10 bar | HP5 |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EP5 and EP6 | D1 |
| Connector for solenoids | Without connectors (only for purely hydraulic control) | 0 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with | 1 |
| Setting range for displacement | Short long | G |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Version of port and fastening threads | Metric ports threads with profile sealing ring based on DIN 3852, metric fastening thread according to DIN 13 | N |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 180-4 | R4 |
| Drive shaft | Splined shaft DIN 5480 W50×2×24×9g | A2 |
| Working port | SAE working port A and B at rear | 1 |
| Valve | Without valve | 0 |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Special version | S |
