Unit · AXIAL-PISTON PUMP
AA2FO45/61L-VSD05-SR902160973
Axial piston pump Bosch Rexroth series A2FO, type code AA2FO45/61L-VSD05-S, material number R902160973.
- Number
- R902160973
- Type code
- AA2FO45/61L-VSD05-S
- Group
- A2FO 45
- Edition
- 06/2020

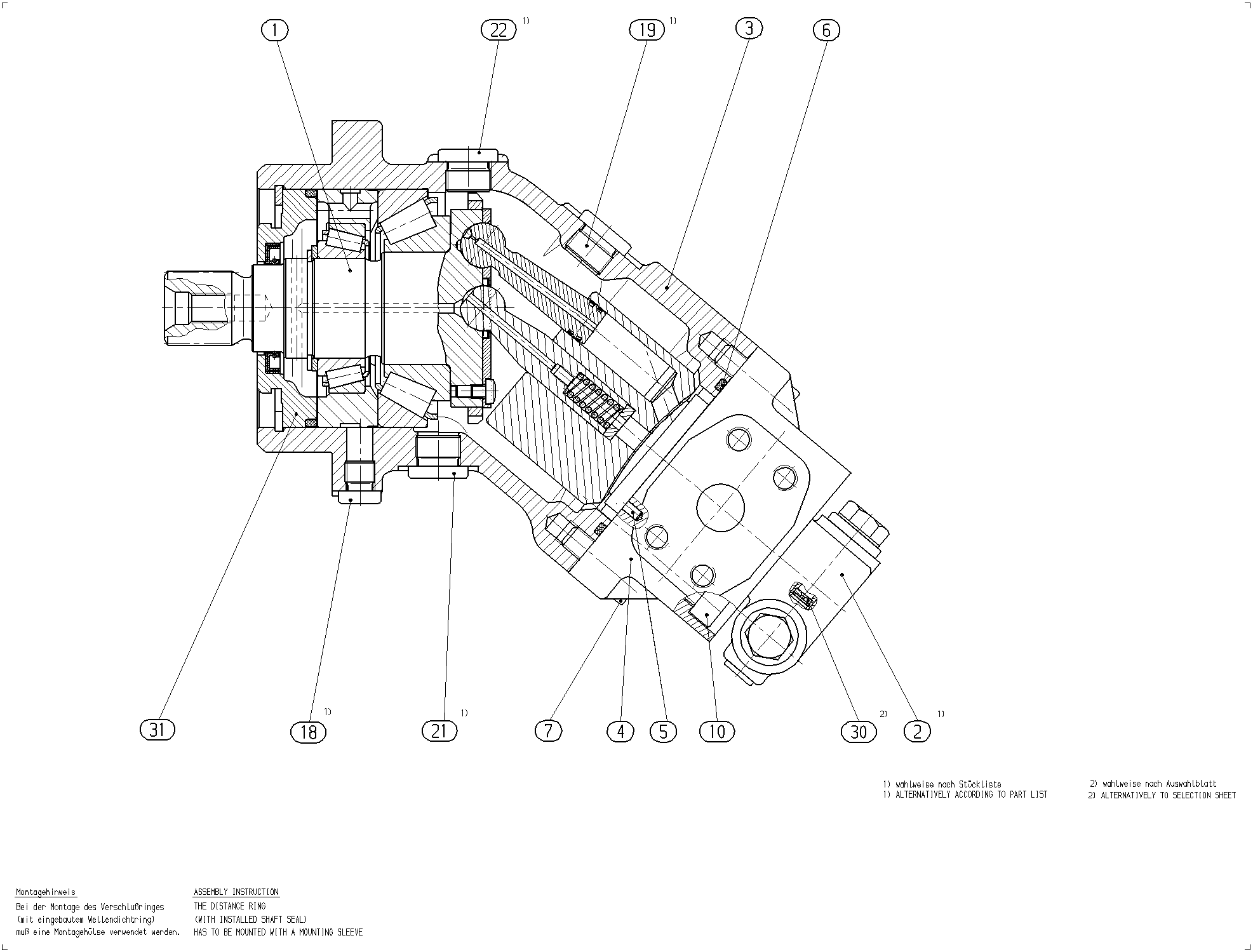

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902031928 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902241316 | HOUSING | 1 | ||
| R909411580 | CONNECTION PLATE | 1 | ||
| R909084150 | STRAIGHT PIN | 1 | ||
| R909150744 | O-RINGD | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| R910764647 | SCREW PLUGD | 1 | ||
| R910901969 | SCREW PLUGD | 1 | ||
| R910901969 | SCREW PLUGD | 1 | ||
| R902139673 | LOCKING RING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, fixed, SAE Version | AA2F | |
| Pump, open circuit | O | |
| counter-clockwise | L | |
| FKM (fluor-caoutchouc) | V | |
| 4-hole | D | |
| Special version | -S |
