Unit · AXIAL-PISTON PUMP
A17VO107DRS00/11NRWK0E810-0 77725.3215R902162189
Axial piston pump Bosch Rexroth series A17VO, type code A17VO107DRS00/11NRWK0E810-077725.3215, material number R902162189.
- Number
- R902162189
- Type code
- A17VO107DRS00/11NRWK0E810-0 77725.3215
- Group
- A17VO 107
- Edition
- 06/2020

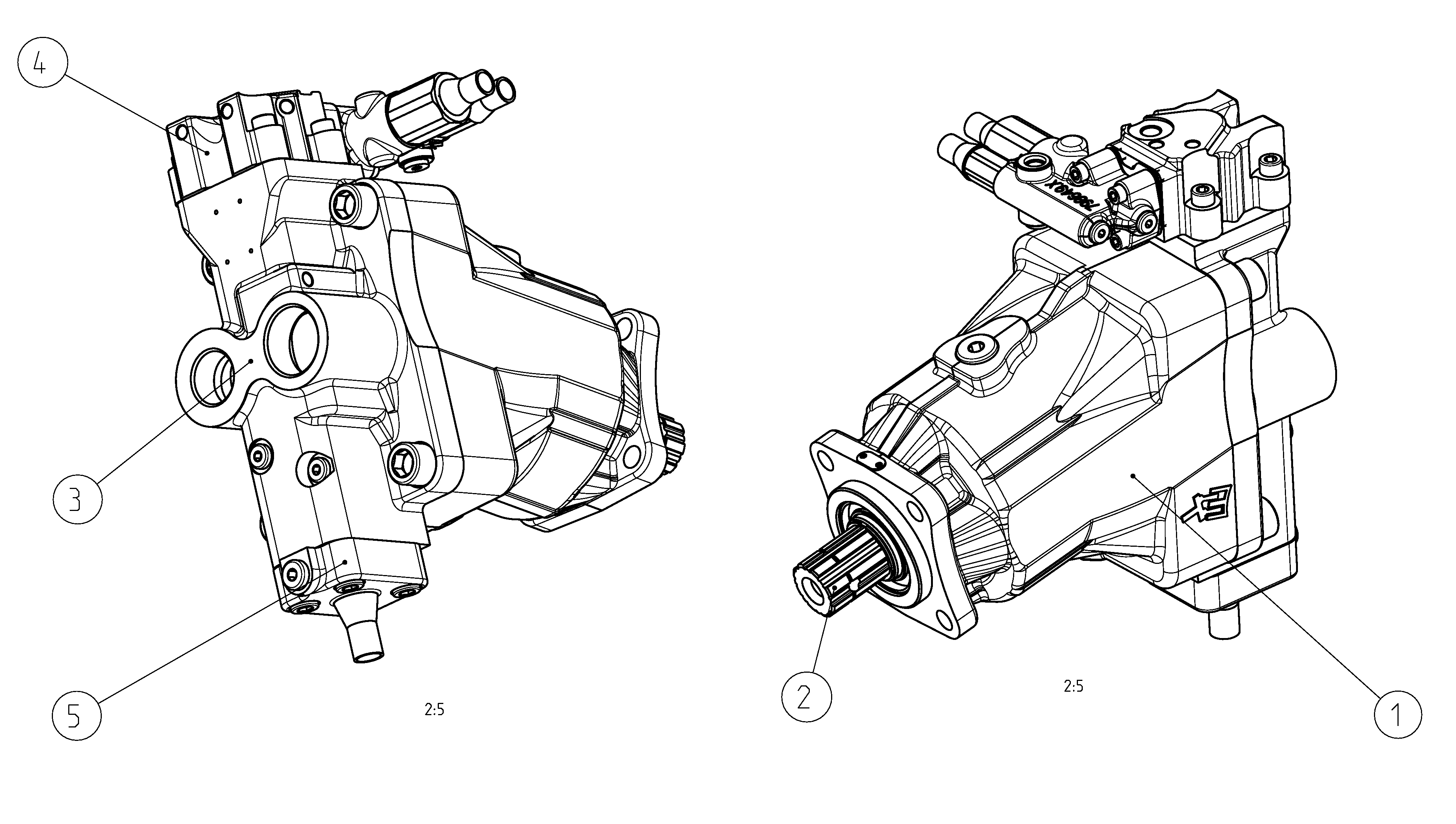

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902124031 | HOUSING Assembly parts list →L | 1 | ||
| R902124027 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902124039 | COVER PLATE Assembly parts list →L | 1 | ||
| R902151688 | CONTROL PART Assembly parts list →L | 1 | ||
| R902151618 | COVER Assembly parts list →L | 1 |
Other versions 10
- R902163586 A17VO107DRS00/11NRWK0E810-0 77725.3215
- R902182230 A17VO107DRS00/11NRWK0E810-0 77725.3215
- R902186396 A17VO107DRS00/11NRWK0E810-0 77725.3215
- R902189065 A17VO107DRS00/11NRWK0E810-0 77725.3215
- R902189111 A17VO107DRS00/11NRWK0E810-0 77725.3215
- R902191511 A17VO107DRS00/11NRWK0E810-0 77725.3215
- R902196601 A17VO107DRS00/11NRWK0E810-0 77725.3215
- R902196722 A17VO107DRS00/11NRWK0E810-0 77725.3215
- R902162458 A17VO107DRS00/11NRWK0E810-0 77725.3215
- R902151684 A17VO107DRS00/11NRWK0E810-077725.3215
