Unit · AXIAL-PISTON MOTOR
AA6VM55HZ3/63W-VSD527F0B-YR902162264
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM55HZ3/63W-VSD527F0B-Y, material number R902162264. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: two-point control, hydraulic (HZ). Direction of rotation: viewed on drive shaft bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (527). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902162264
- Type code
- AA6VM55HZ3/63W-VSD527F0B-Y
- Group
- A6VM 55
- Edition
- 06/2020

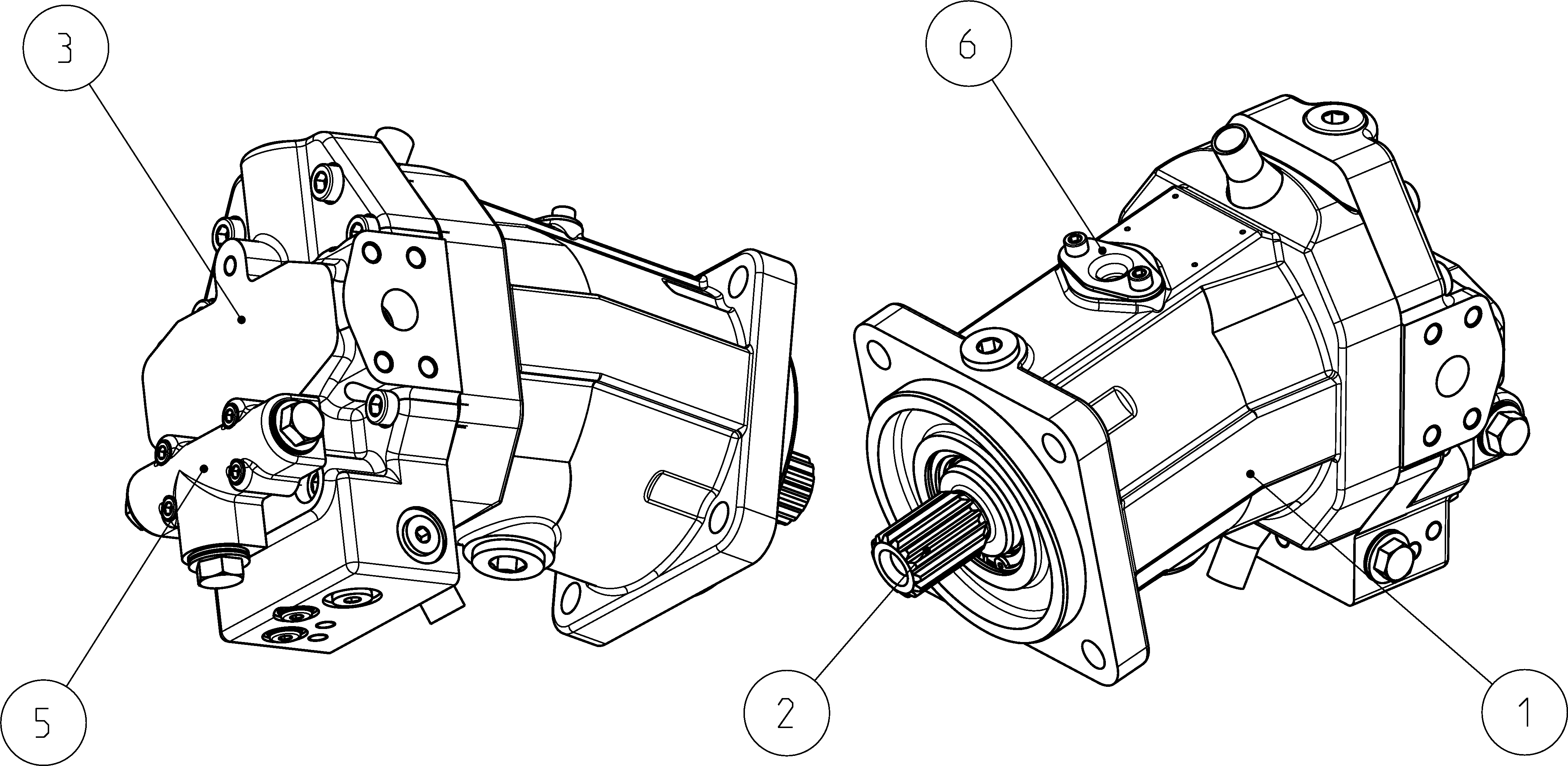

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902251360 | HOUSING Assembly parts list →L | 1 | ||
| R909604704 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902238468 | COVER PLATE Assembly parts list →L | 1 | ||
| R902241160 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 | ||
| 98 | R902002302 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Two-point control, hydraulic | HZ |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 527 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
