Unit · AXIAL-PISTON MOTOR
A6VM115HA1R1P005B/71NWV0P4A11C0-SR902163823
Axial piston motor Bosch Rexroth series A6VM, type code A6VM115HA1R1P005B/71NWV0P4A11C0-S, material number R902163823. Nominal size: NG 115. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: automatic high-pressure With minimum pressure Δp ≤ approx. related control, positive increase 10 bar control (HA1). Pressure control/override: override of the HA1 and HA2 controls electric and travel U = 12 V direction valve, electric (R1). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Setting range for displacement: without setting screw moderate (B). Version of port and fastening threads: metric ports threads with profile sealing ring based on DIN 3852, metric fastening thread according to DIN 13 (N). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-4 (P4). Drive shaft: splined shaft DIN 5480 W45×2×21×9g (A1).
- Number
- R902163823
- Type code
- A6VM115HA1R1P005B/71NWV0P4A11C0-S
- Group
- A6VM 115
- Edition
- 06/2020

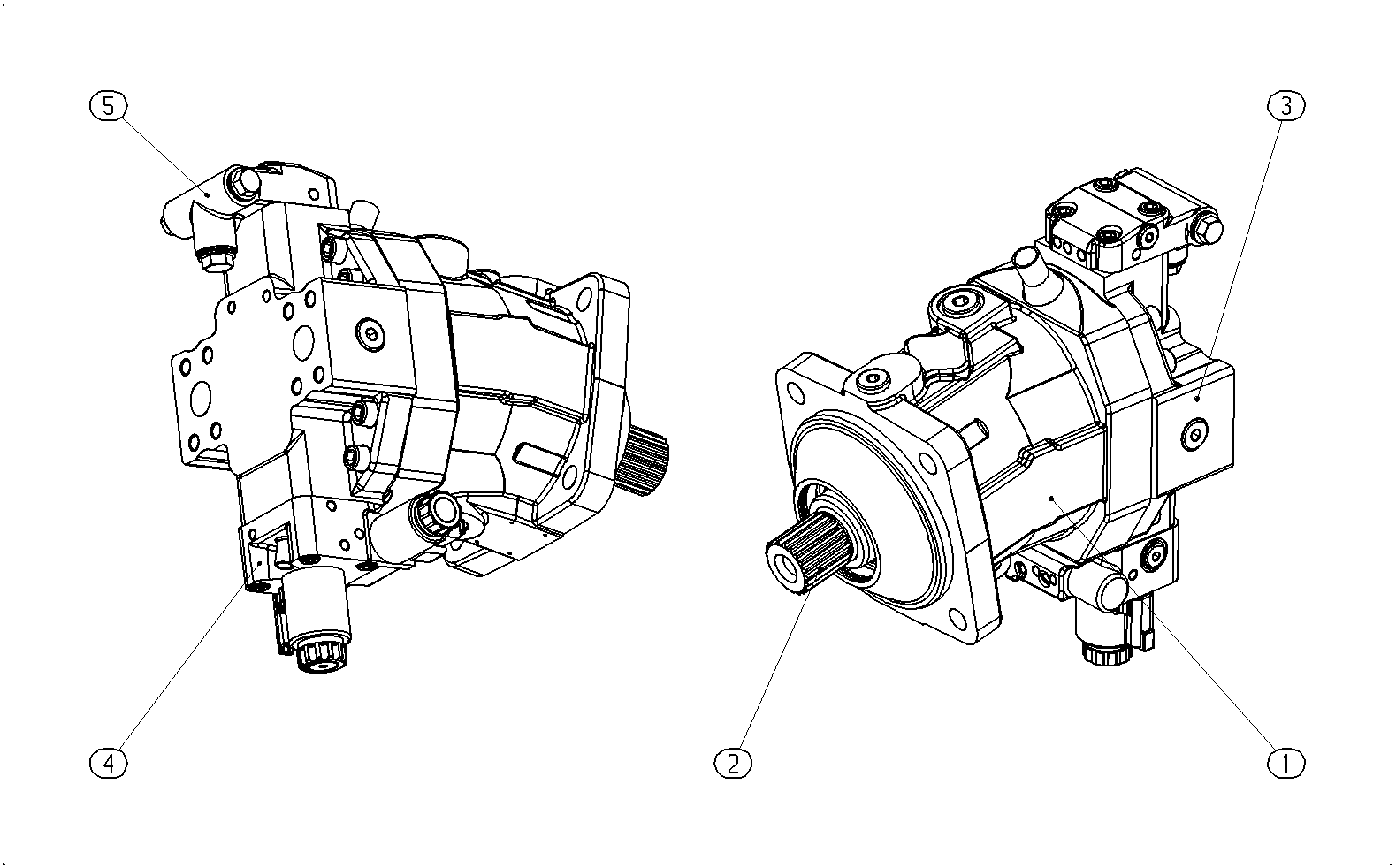

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902163651 | HOUSING Assembly parts list →L | 1 | ||
| R902124479 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902126995 | COVER PLATE Assembly parts list →L | 1 | ||
| R902153537 | CONTROL PART Assembly parts list →L | 1 | ||
| R902186259 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 115 | 115 |
| Control device | Automatic high-pressure With minimum pressure Δp ≤ approx. related control, positive increase 10 bar control | HA1 |
| Pressure control/override | Override of the HA1 and HA2 controls electric and travel U = 12 V direction valve, electric | R1 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Setting range for displacement | Without setting screw moderate | B |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Version of port and fastening threads | Metric ports threads with profile sealing ring based on DIN 3852, metric fastening thread according to DIN 13 | N |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-4 | P4 |
| Drive shaft | Splined shaft DIN 5480 W45×2×21×9g | A1 |
| Working port | SAE working port A and B at rear | 1 |
| Valve | Only possible with port plates 1, 2 and 4 8 | C |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Special version | S |
