Unit · AXIAL-PISTON MOTOR
A6VM085EP200T000A/71JWV0N4S9100-SR902163858
Axial piston motor Bosch Rexroth series A6VM, type code A6VM085EP200T000A/71JWV0N4S9100-S, material number R902163858. Nominal size: NG 85. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, positive control electric U = 24 V (EP2). Pressure control/override: without pressure control/override (00). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: without setting screw short (0-adjustable) (A). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 140-4 (N4). Drive shaft: splined shaft ANSI B92.1a‒1976 1 1/2 in 17T 12/24DP (S9). Working port: SAE working port A and B at rear (1).
- Number
- R902163858
- Type code
- A6VM085EP200T000A/71JWV0N4S9100-S
- Group
- A6VM 85
- Edition
- 06/2020

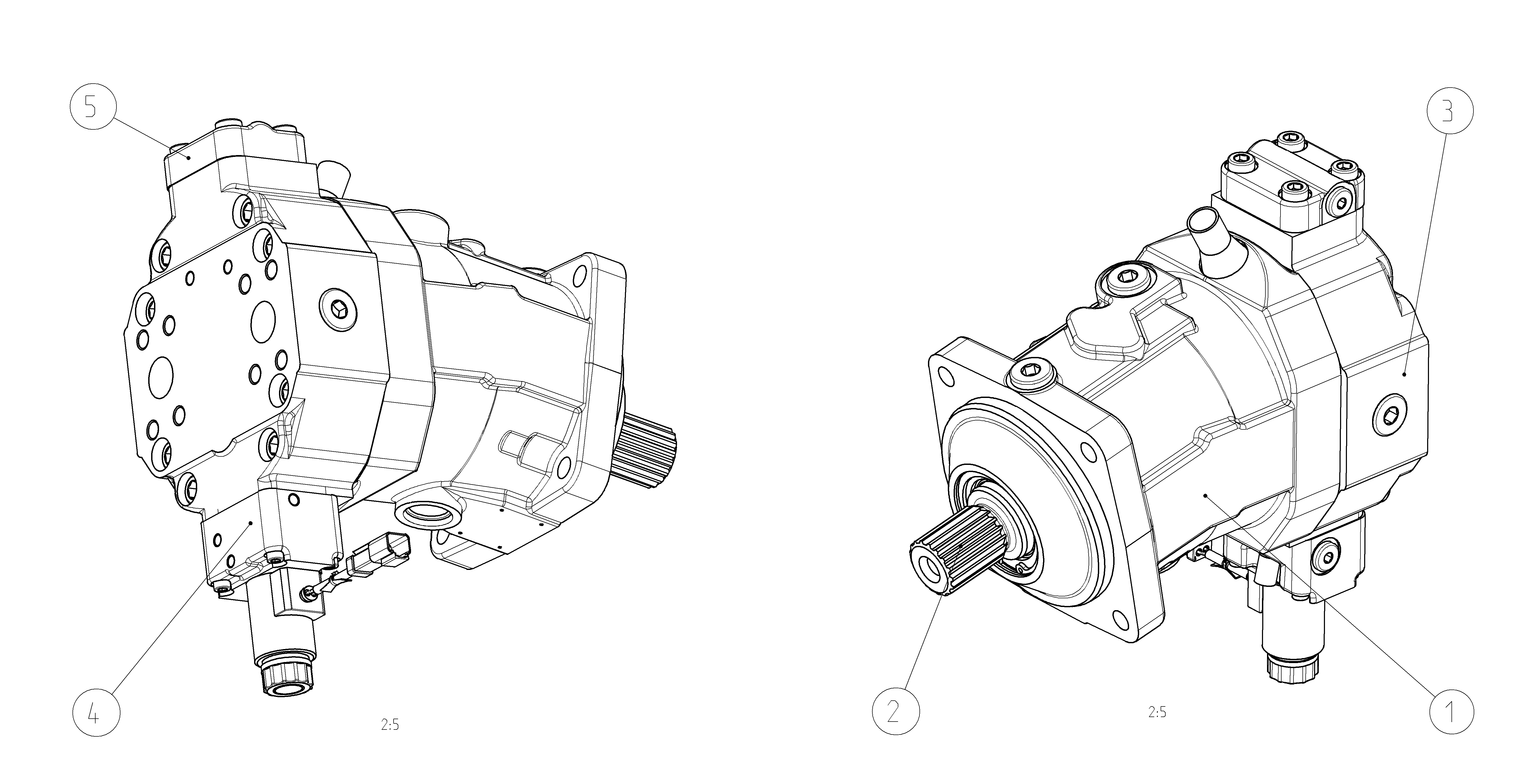

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902163867 | HOUSING Assembly parts list →L | 1 | ||
| 2 | R902132370 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902163868 | COVER PLATE Assembly parts list →L | 1 | ||
| 4 | R902163869 | CONTROL PART Assembly parts list →L | 1 | |
| 5 | R902163840 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 85 | 085 |
| Control device | Proportional control, positive control electric U = 24 V | EP2 |
| Pressure control/override | Without pressure control/override | 00 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | Without setting screw short (0-adjustable) | A |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 140-4 | N4 |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 1 1/2 in 17T 12/24DP | S9 |
| Working port | SAE working port A and B at rear | 1 |
| Valve | Without valve | 0 |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Special version | S |
