Unit · AXIAL-PISTON MOTOR
A6VM170DA0000007F/71XWV0R4A28W0-SR902163919
Axial piston motor Bosch Rexroth series A6VM, type code A6VM170DA0000007F/71XWV0R4A28W0-S, material number R902163919. Nominal size: NG 170. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: automatic speed-related hydr. travel direction valve control, negative control (DA0). Pressure control/override: without pressure control/override (00). Connector for solenoids: without connectors (only for purely hydraulic control) (0). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping One-sided in outlet from large stroking chamber (7). Setting range for displacement: short moderate (F). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 180-4 (R4). Drive shaft: splined shaft DIN 5480 W50×2×24×9g (A2).
- Number
- R902163919
- Type code
- A6VM170DA0000007F/71XWV0R4A28W0-S
- Group
- A6VM 170
- Edition
- 06/2020

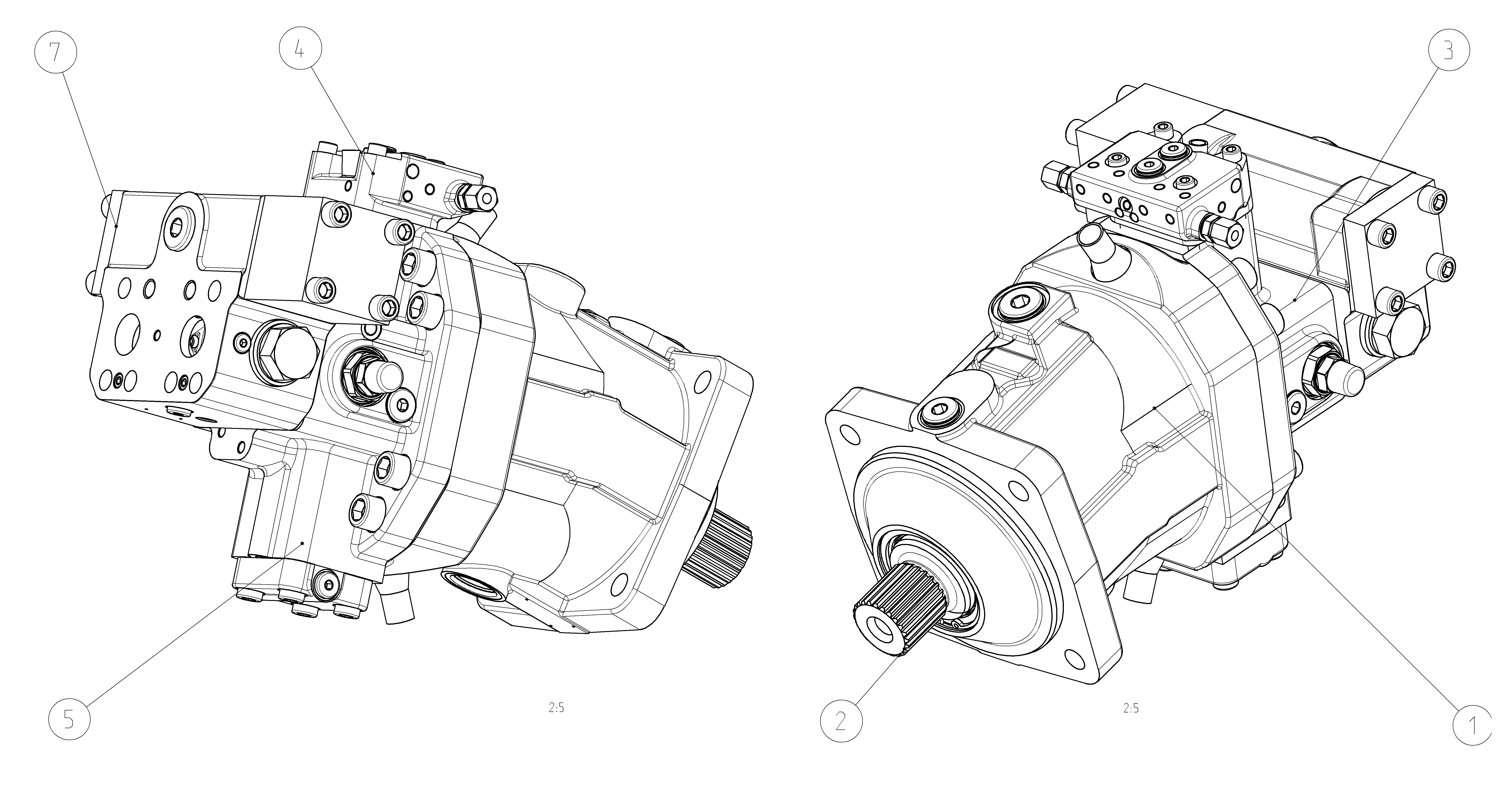

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902156187 | HOUSING Assembly parts list →L | 1 | ||
| R902277875 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902277884 | COVER PLATE Assembly parts list →L | 1 | ||
| R902132095 | CONTROL PART Assembly parts list →L | 1 | ||
| R902163921 | COVER Assembly parts list →L | 1 | ||
| R902064649 | BRAKE VALVE Assembly parts list →L | 1 | ||
| 98 | R902221355 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 170 | 170 |
| Control device | Automatic speed-related hydr. travel direction valve control, negative control | DA0 |
| Pressure control/override | Without pressure control/override | 00 |
| Connector for solenoids | Without connectors (only for purely hydraulic control) | 0 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping One-sided in outlet from large stroking chamber | 7 |
| Setting range for displacement | Short moderate | F |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 180-4 | R4 |
| Drive shaft | Splined shaft DIN 5480 W50×2×24×9g | A2 |
| Working port | Port plate for mounting a counterbalance valve, with 1-stage pressure relief valve (pilot operated) BVD25 | 8 |
| Valve | With BVD/BVE counterbalance valves mounted | W |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Special version | S |
