Unit · AXIAL-PISTON PUMP
A4VG085EV2DP000/40+A10VO45DFLR/31R902167131
Axial piston pump Bosch Rexroth series A4VG, type code A4VG085EV2DP000/40+A10VO45DFLR/31, material number R902167131. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). DA control valve (only for NG110 and 125): without DA control valve (0).
- Number
- R902167131
- Type code
- A4VG085EV2DP000/40+A10VO45DFLR/31
- Group
- A10VO 45
- Edition
- 01/2020

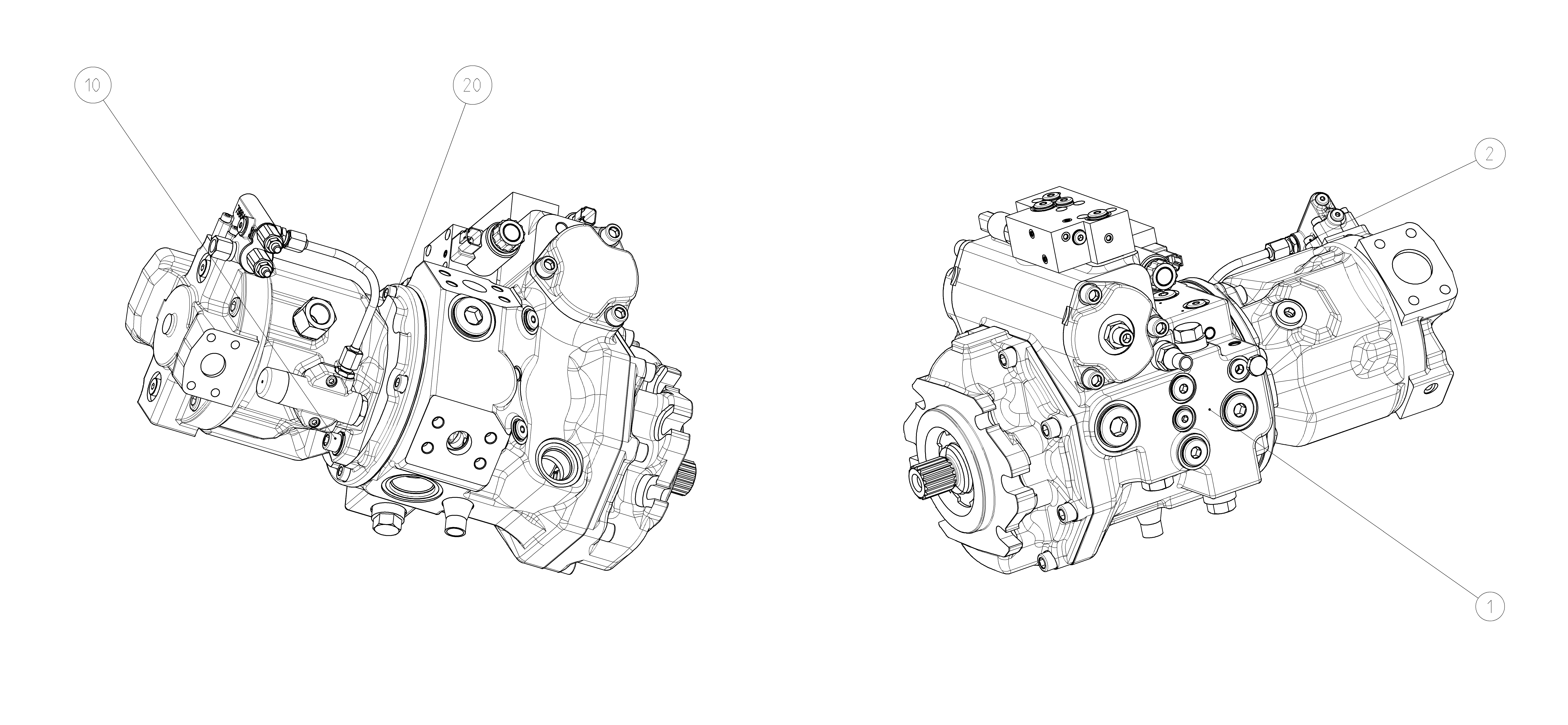

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902167129 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902433526 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 2 | ||
| 2916010115 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
