Unit · AXIAL-PISTON PUMP
A4VG180HD3/32+A10VO71DFR1/31-KR902168653
Axial piston pump Bosch Rexroth series A4VG, type code A4VG180HD3/32+A10VO71DFR1/31-K, material number R902168653. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional pilot-pressure related, with inlet filtration in P control hydraulic (HD3).
- Number
- R902168653
- Type code
- A4VG180HD3/32+A10VO71DFR1/31-K
- Group
- A10VO 71
- Edition
- 06/2020

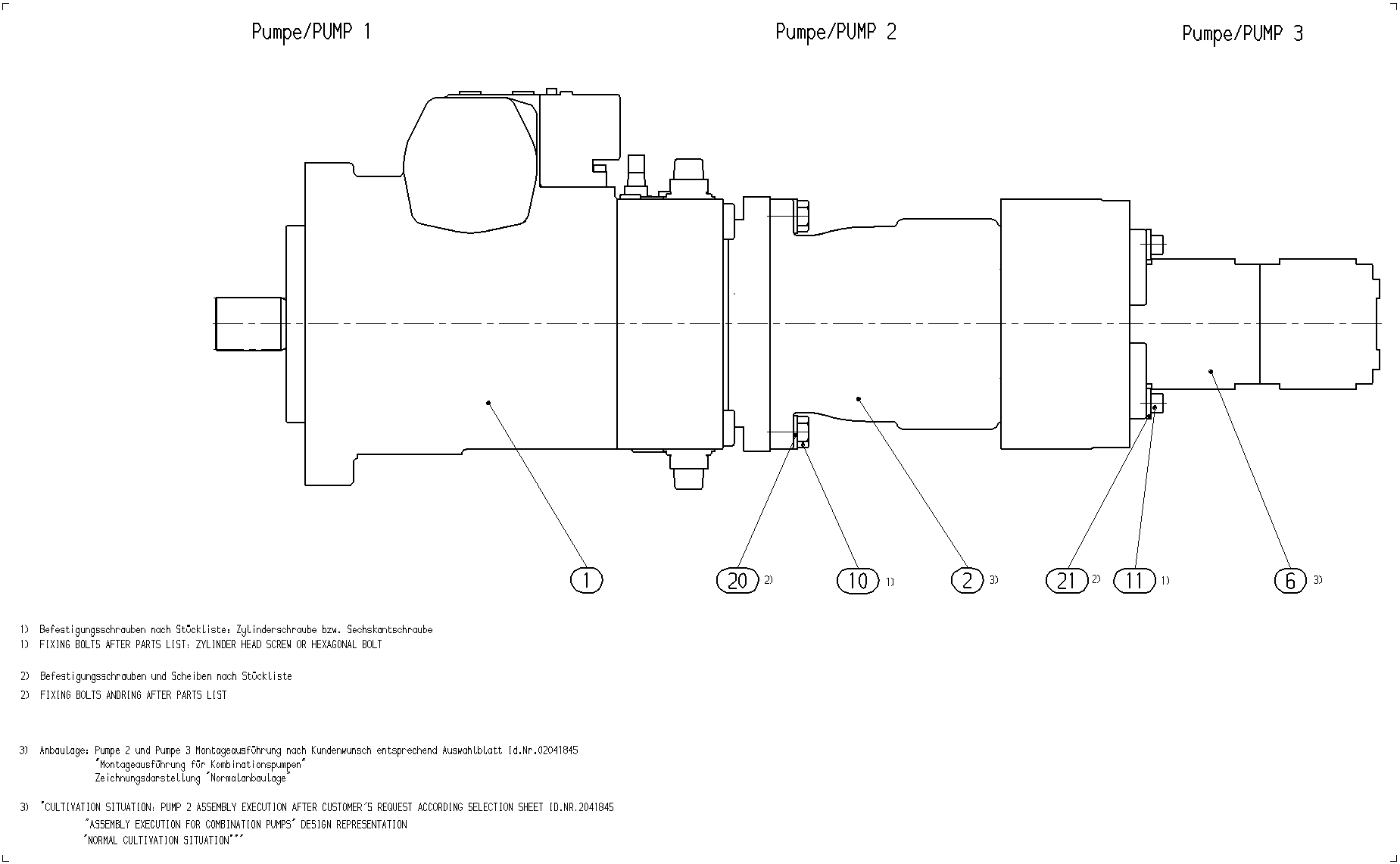

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902168655 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902485918 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R901147112 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083707 | HEXAGON SCREW | 2 | ||
| 2916010117 | WASHER | 2 | ||
| R909430409 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| Control device | Proportional pilot-pressure related, with inlet filtration in P control hydraulic | HD3 |
| Series | Series 3, index 2 | 32 |
