Unit · PUMP COMBINATION
A4VG175EP4/40NL+A4VG175EP4/40NLR902170210
Pump combination Bosch Rexroth series A4VG, type code A4VG175EP4/40NL+A4VG175EP4/40NL, material number R902170210. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control electric with inlet filtration in P U = 24 V (EP4). Direction of rotation: viewed on drive shaft counter-clockwise (L).
- Number
- R902170210
- Type code
- A4VG175EP4/40NL+A4VG175EP4/40NL
- Group
- A4VG 175
- Edition
- 01/2020

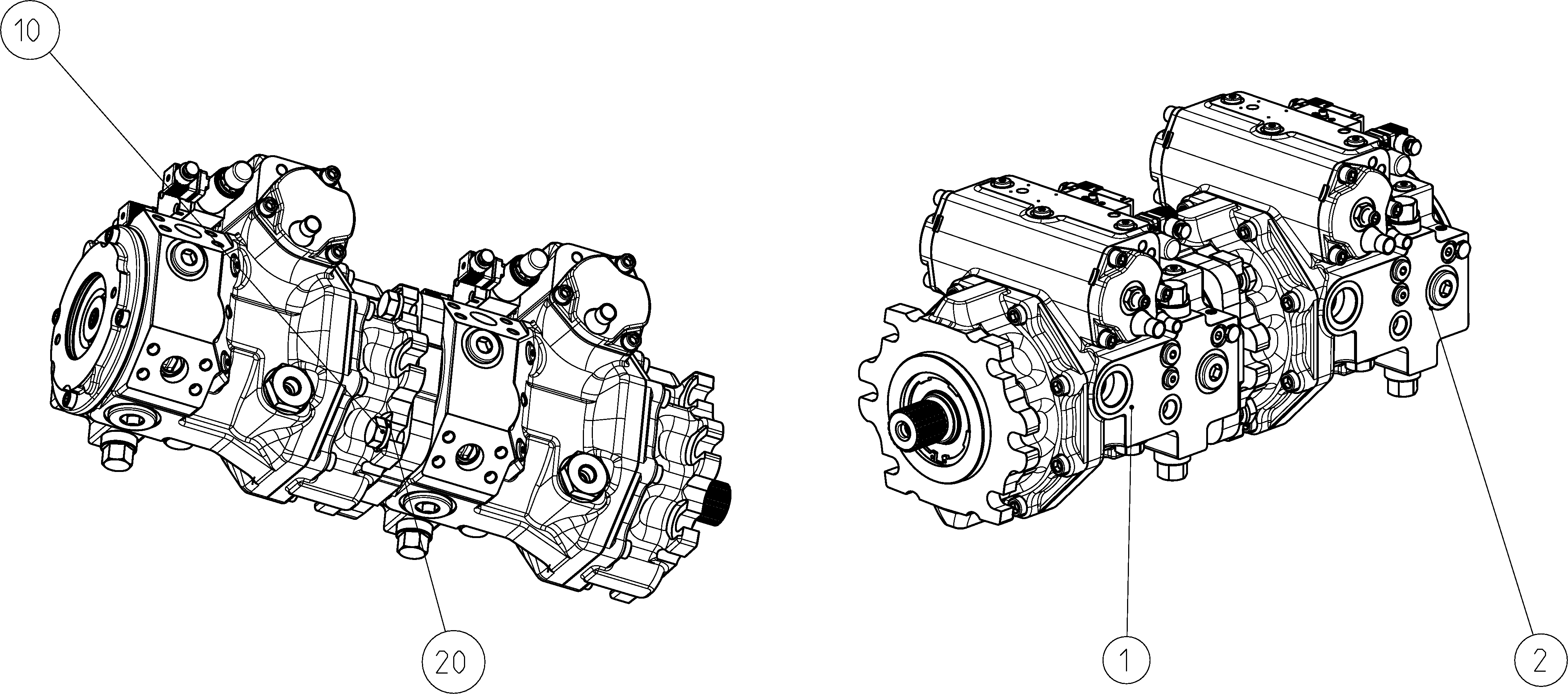

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902170211 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902170212 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909152538 | HEXAGON SCREW | 4 | ||
| R909436988 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Control device | Proportional control electric with inlet filtration in P U = 24 V | EP4 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
