Unit · PUMP COMBINATION
A4VG175EP/40+A4VG085EP/40+A11VO75DRXR902170214
Pump combination Bosch Rexroth series A4VG, type code A4VG175EP/40+A4VG085EP/40+A11VO75DRX, material number R902170214. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Connector for solenoids: without connector (only for purely hydraulic control) (0).
- Number
- R902170214
- Type code
- A4VG175EP/40+A4VG085EP/40+A11VO75DRX
- Group
- A11VO 75
- Edition
- 01/2020

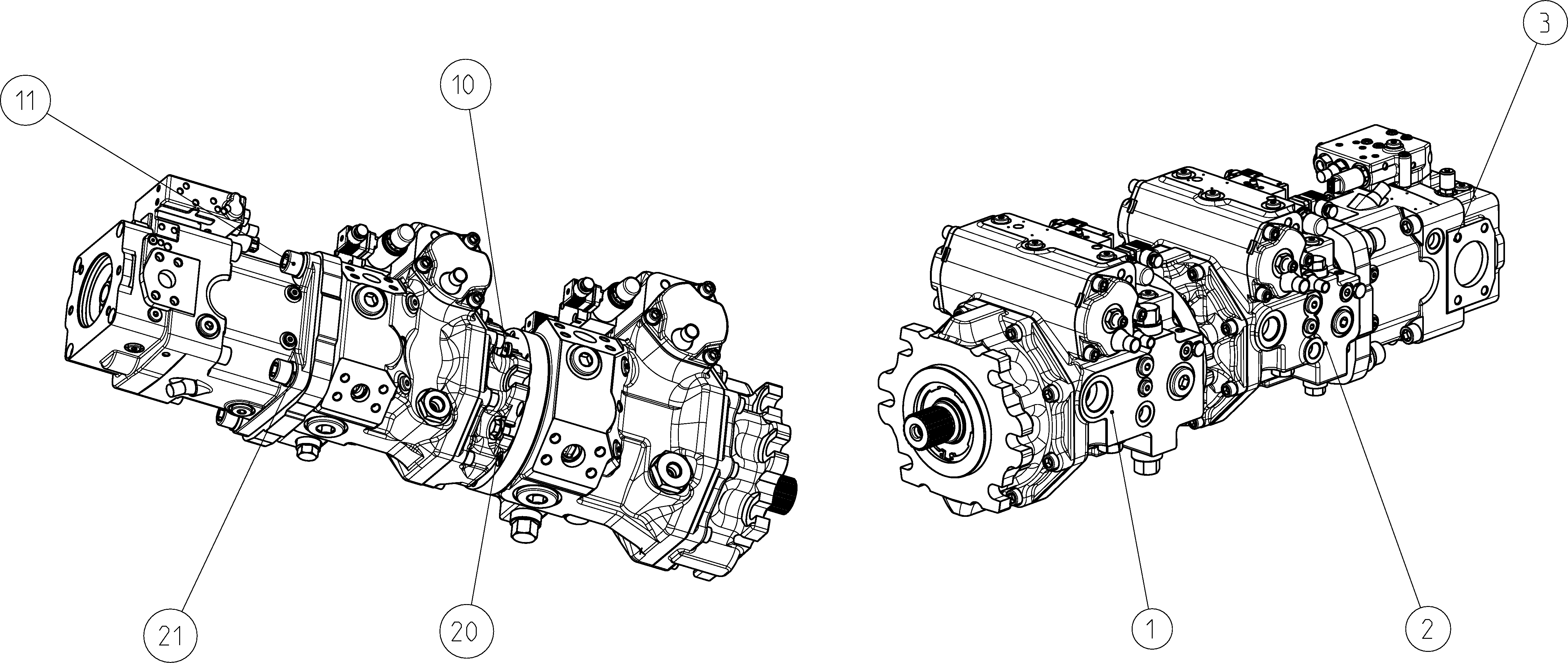

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902170215 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902170216 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902170217 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083708 | HEXAGON SCREW | 4 | ||
| R909083154 | SOCKET HEAD CAP SCREW | 4 | ||
| R909430409 | WASHER | 4 | ||
| R909436988 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Connector for solenoids | Without connector (only for purely hydraulic control) | 0 |
