Unit · PUMP COMBINATION
A4VG175EP4+A11VLO130LRD+A11VO75DRGR902170221
Pump combination Bosch Rexroth series A4VG, type code A4VG175EP4+A11VLO130LRD+A11VO75DRG, material number R902170221. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric with manual override and spring return U = 24 V (EP4).
- Number
- R902170221
- Type code
- A4VG175EP4+A11VLO130LRD+A11VO75DRG
- Group
- A11VLO 130
- Edition
- 06/2020

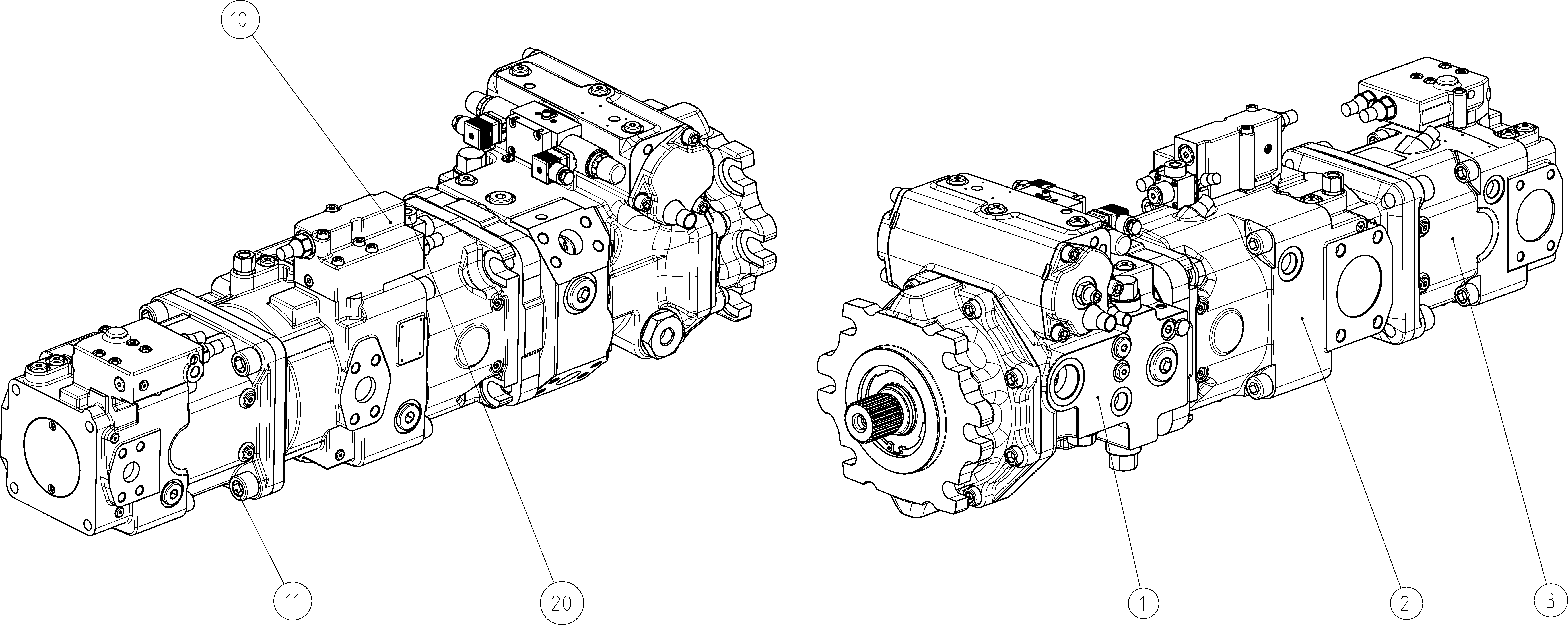

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902170222 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902170223 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902170224 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083672 | HEXAGON SCREW | 4 | ||
| R909083154 | SOCKET HEAD CAP SCREW | 4 | ||
| R909436988 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Control device | Proportional control, electric with manual override and spring return U = 24 V | EP4 |
