Unit · AXIAL-PISTON MOTOR
A6VM140EP2/63W-VZB01X0TA-SR902186375
Axial piston motor Bosch Rexroth series A6VM, type code A6VM140EP2/63W-VZB01X0TA-S, material number R902186375. Nominal size: NG 140. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R902186375
- Type code
- A6VM140EP2/63W-VZB01X0TA-S
- Group
- A6VM 140
- Edition
- 06/2020

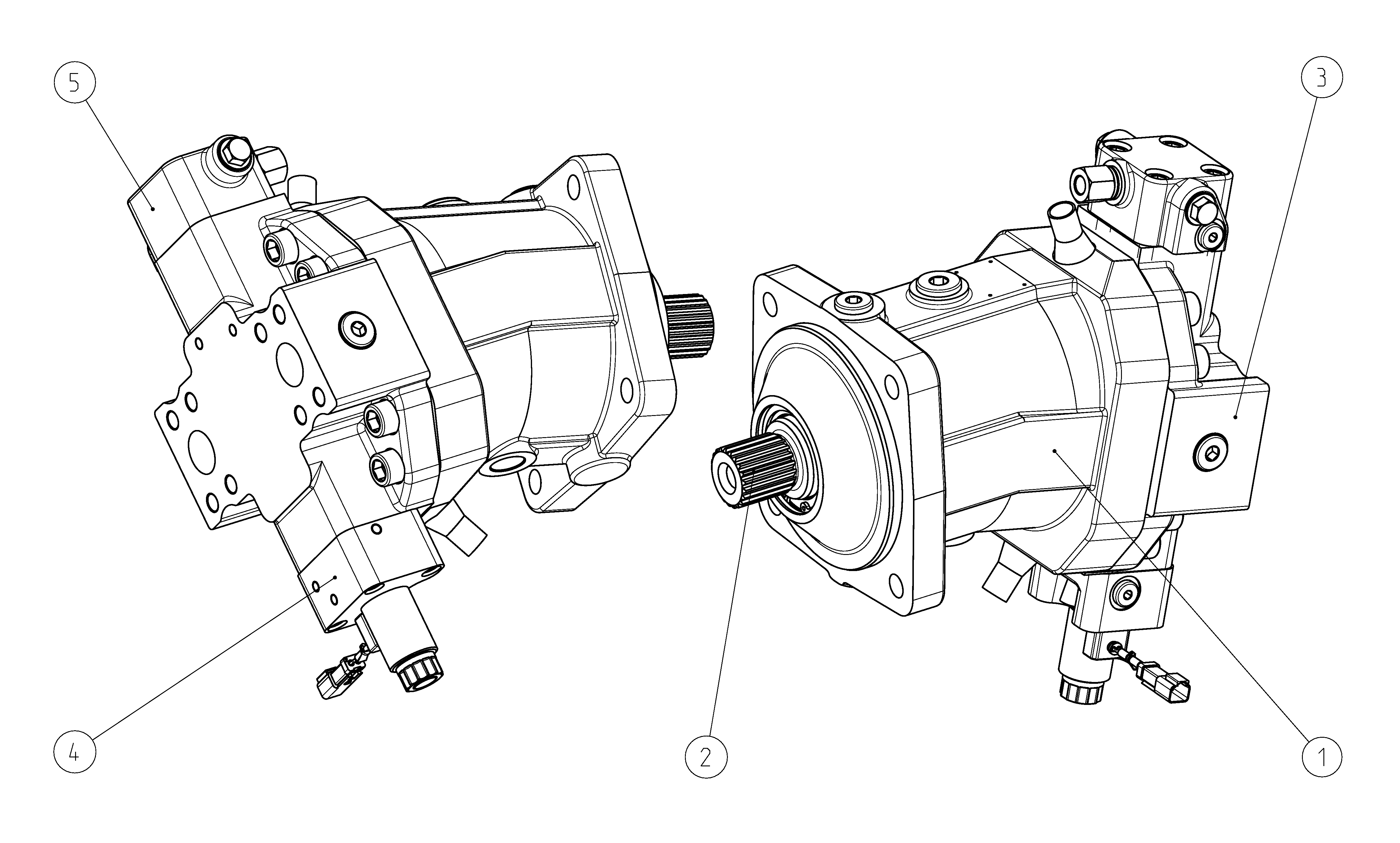

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902217427 | HOUSING Assembly parts list →L | 1 | ||
| R909603886 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902241356 | COVER PLATE Assembly parts list →L | 1 | ||
| R902057227 | CONTROL PART Assembly parts list →L | 1 | ||
| R902217081 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| 98 | R902002304 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 140 | 140 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
