Unit · AXIAL-PISTON PUMP
A4VG175EP1APRX0/40MRND6XX1VA2S2AS00-SR902192954
Axial piston pump Bosch Rexroth series A4VG, type code A4VG175EP1APRX0/40MRND6XX1VA2S2AS00-S, material number R902192954. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: electric swivel angle sensor (DWS20-1, 3-pin) (R). DA control valve (only for NG110 and 125): without DA control valve (0). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 152-2/4 (D6). Working port: SAE working port A and B, on left side (45° left) (1). Boost pump and rotary group configuration: high-speed rotary group boost pump integrated, standard internal gear pump (V). Through drive: 82-2 (A) A2 5/8 in 9T 16/32DP S2 (A2S2). High-pressure relief valve: high-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting (A).
- Number
- R902192954
- Type code
- A4VG175EP1APRX0/40MRND6XX1VA2S2AS00-S
- Group
- A4VG 175
- Edition
- 01/2020

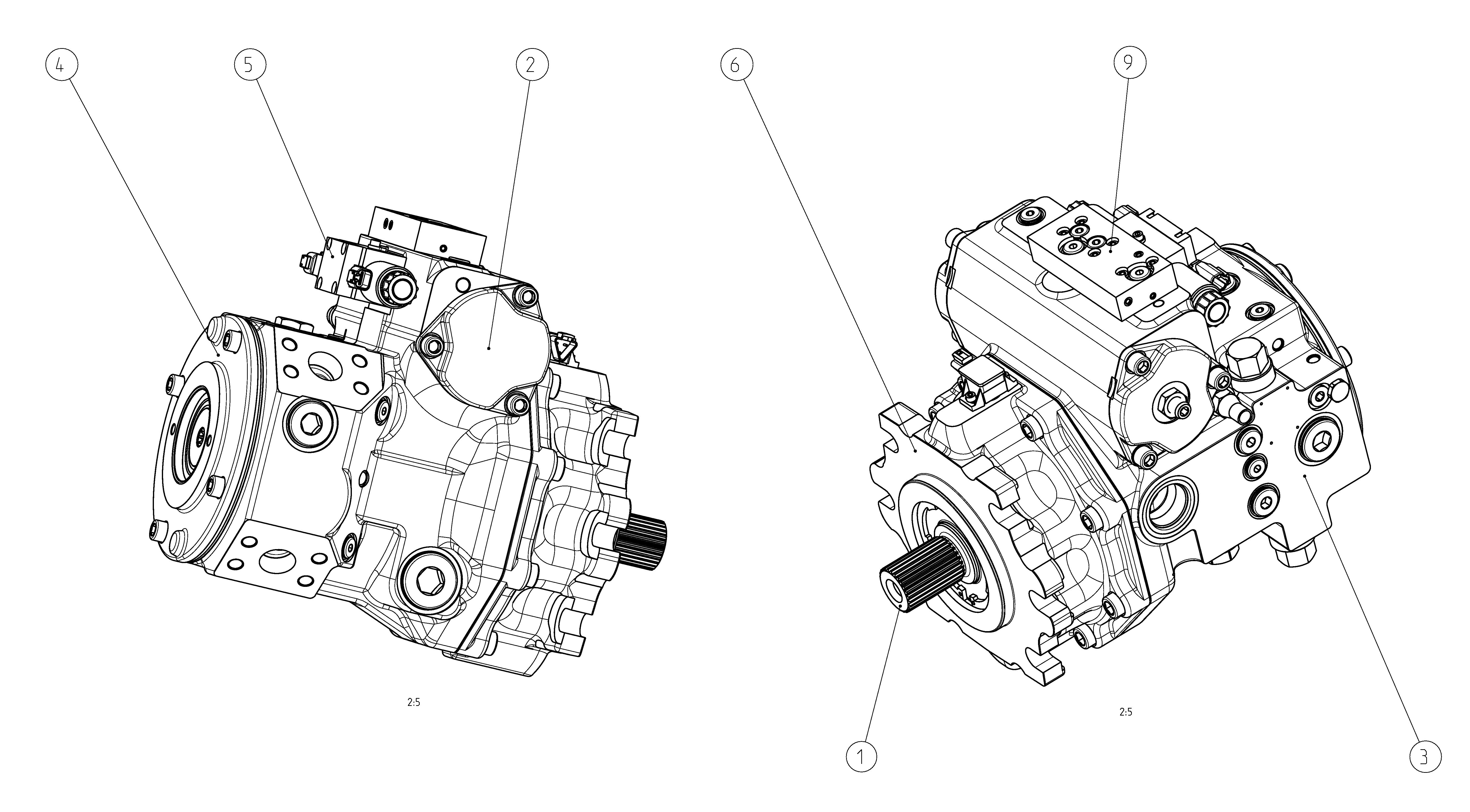

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902201150 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902157103 | CONTROL Assembly parts list →L | 1 | ||
| R902213167 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902201068 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902113800 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902152865 | BEARING FLANGE Assembly parts list →L | 1 | ||
| R902201151 | UNLOADING VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Control device | Proportional control, U = 12 V electric | EP1 |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Electric swivel angle sensor (DWS20-1, 3-pin) | R |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 152-2/4 | D6 |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Boost pump and rotary group configuration | High-speed rotary group boost pump integrated, standard internal gear pump | V |
| Through drive | 82-2 (A) A2 5/8 in 9T 16/32DP S2 | A2S2 |
| High-pressure relief valve | High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting | A |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Without sensor | 0 |
| Standard / special version | Special version | S |
