Unit · AXIAL-PISTON PUMP
A4VG175EV2CP000/40MR+A10VO85DRF/53RR902195285
Axial piston pump Bosch Rexroth series A4VG, type code A4VG175EV2CP000/40MR+A10VO85DRF/53R, material number R902195285. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: without pressure cut-off with bypass (C). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). DA control valve (only for NG110 and 125): without DA control valve (0). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R902195285
- Type code
- A4VG175EV2CP000/40MR+A10VO85DRF/53R
- Group
- A10VO 85
- Edition
- 01/2020

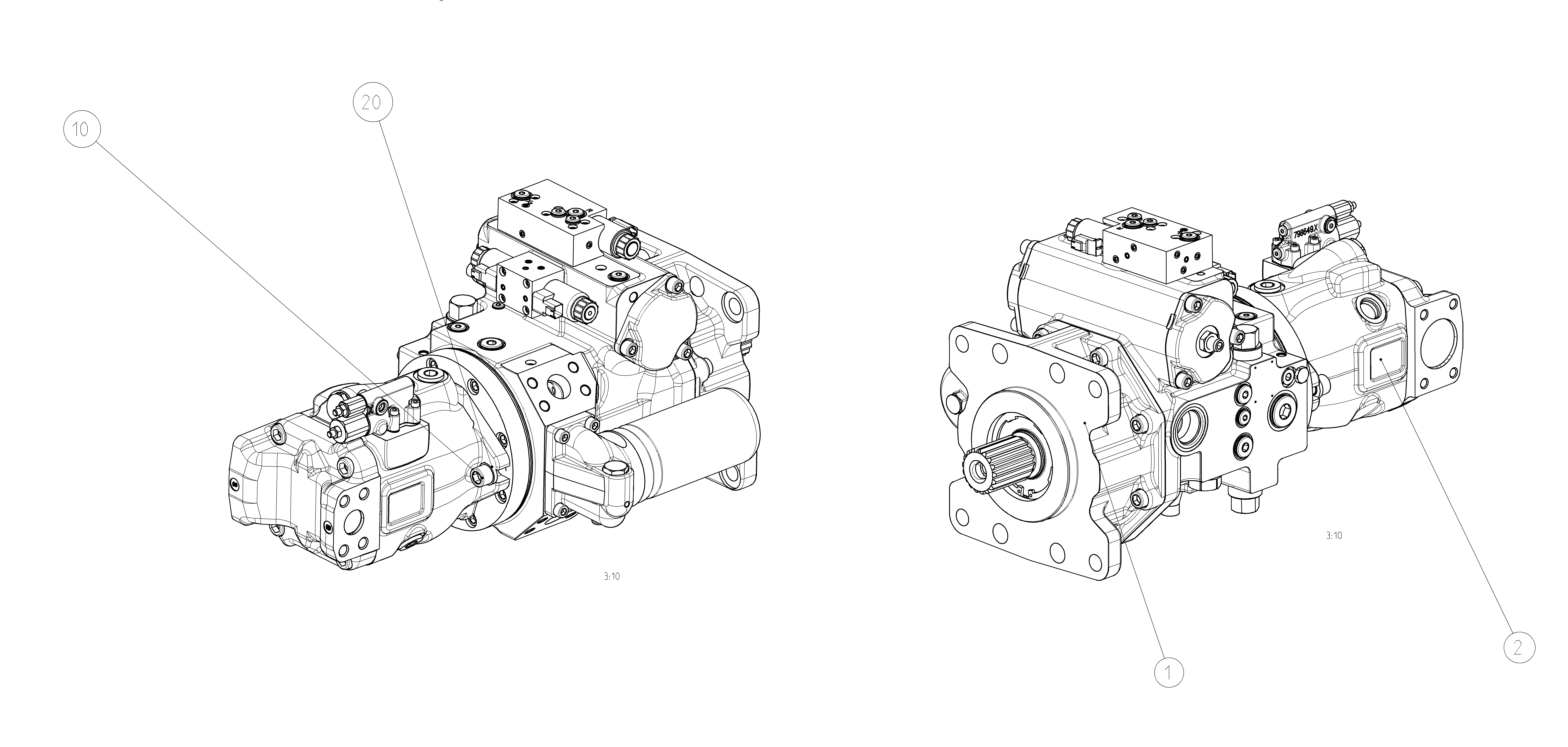

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902195283 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902493794 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430408 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Pressure cut-off | Without pressure cut-off with bypass | C |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft clockwise | R |
