Unit · AXIAL-PISTON PUMP
A4VG065ET1DPR00/40ALNC6S71BA2S2AD00-0R902195436
Axial piston pump Bosch Rexroth series A4VG, type code A4VG065ET1DPR00/40ALNC6S71BA2S2AD00-0, material number R902195436. Nominal size: NG 65. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: electric swivel angle sensor (DWS20-1, 3-pin) (R). Additional function: without additional function (0). DA control valve (only for NG110 and 125): without DA control valve (0). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 127-2/ (C6). Working port: SAE working port A and B, on left side (45° left) (1). Boost pump and rotary group configuration: standard rotary group boost pump integrated, large internal gear pump (B). Through drive: 82-2 (A) A2 5/8 in 9T 16/32DP S2 (A2S2). High-pressure relief valve: high-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting (A).
- Number
- R902195436
- Type code
- A4VG065ET1DPR00/40ALNC6S71BA2S2AD00-0
- Group
- A4VG 65
- Edition
- 01/2020

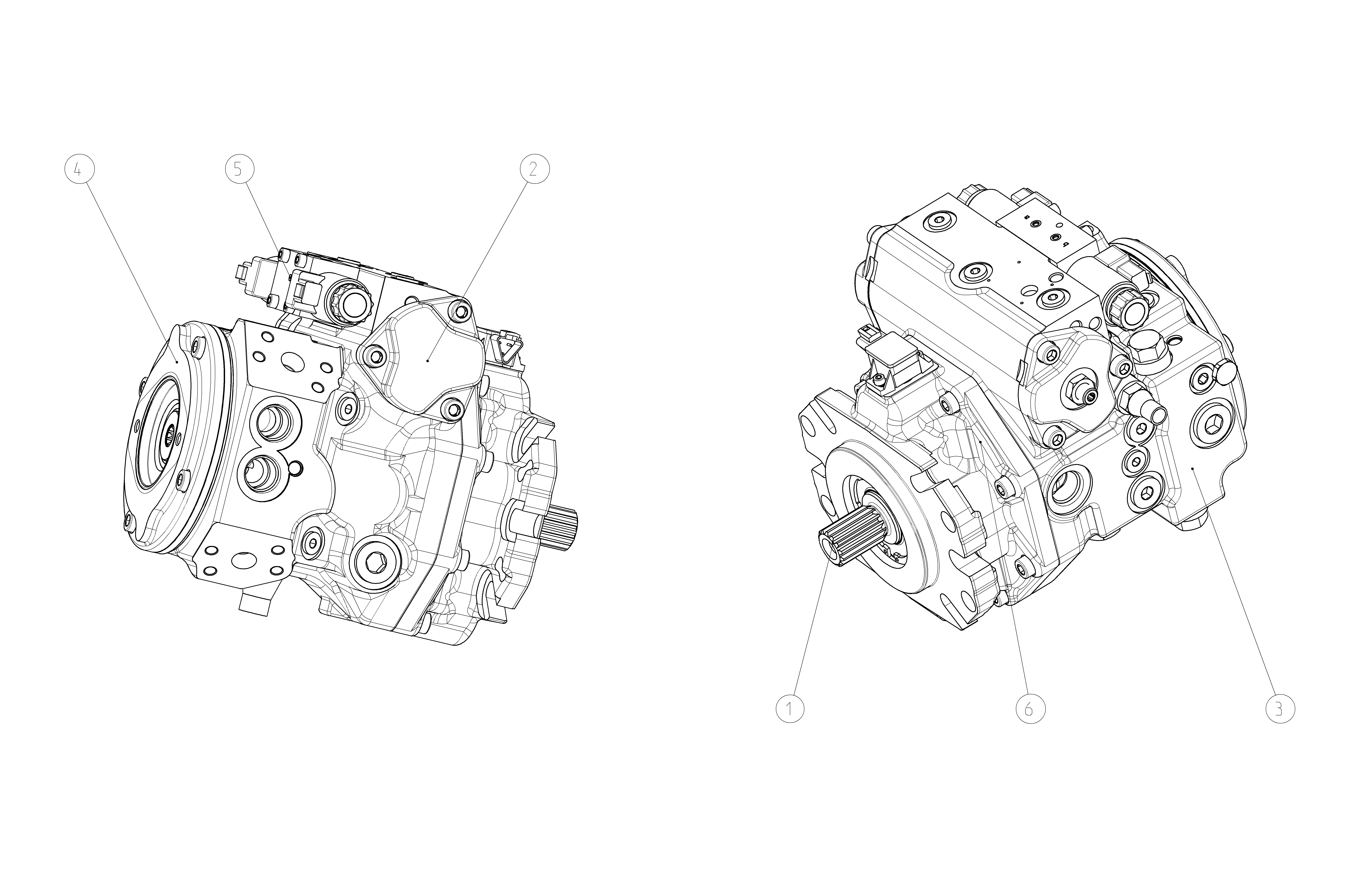

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902195411 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902121133 | CONTROL Assembly parts list →L | 1 | ||
| R902195435 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902195414 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902228950 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902121018 | BEARING FLANGE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 65 | 065 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Electric swivel angle sensor (DWS20-1, 3-pin) | R |
| Additional function | Without additional function | 0 |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 127-2/ | C6 |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Boost pump and rotary group configuration | Standard rotary group boost pump integrated, large internal gear pump | B |
| Through drive | 82-2 (A) A2 5/8 in 9T 16/32DP S2 | A2S2 |
| High-pressure relief valve | High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting | A |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Without sensor | 0 |
| Standard / special version | Standard version | 0 |
