Unit · AXIAL-PISTON MOTOR
A6VM215HP5D10001H/71MWV0S4A28W0-0 *AE*R902196239
Axial piston motor Bosch Rexroth series A6VM, type code A6VM215HP5D10001H/71MWV0S4A28W0-0*AE*, material number R902196239. Nominal size: NG 215. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic negative control ΔpSt = 10 bar (HP5). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EP5 and EP6 (D1). Connector for solenoids: without connectors (only for purely hydraulic control) (0). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with (1). Setting range for displacement: short extra long (H). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 200-4 (S4).
- Number
- R902196239
- Type code
- A6VM215HP5D10001H/71MWV0S4A28W0-0 *AE*
- Group
- A6VM 215
- Edition
- 06/2020

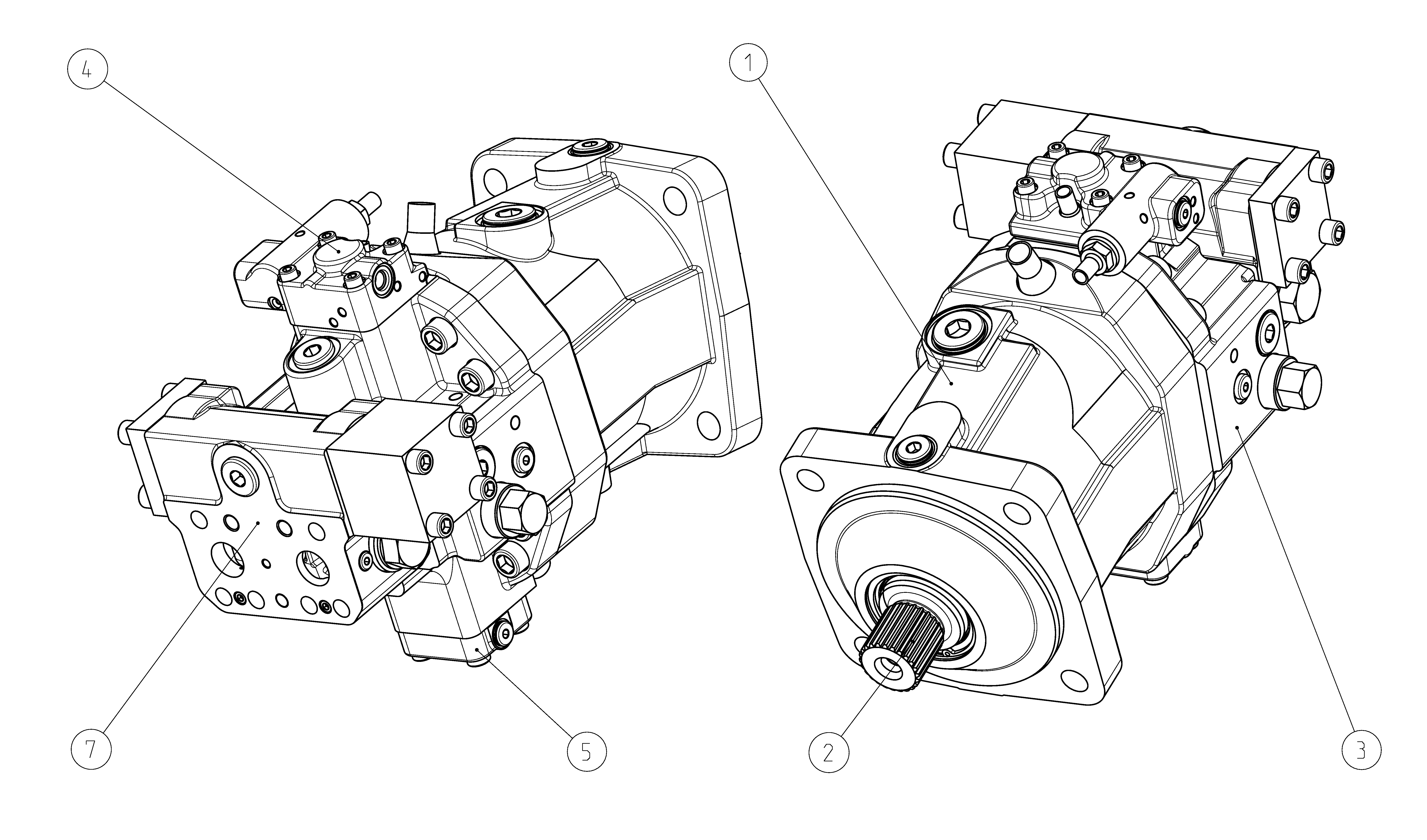

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902207526 | HOUSING Assembly parts list →L | 1 | ||
| R902139777 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902203972 | COVER PLATE Assembly parts list →L | 1 | ||
| R902191609 | CONTROL PART Assembly parts list →L | 1 | ||
| R902163727 | COVER Assembly parts list →L | 1 | ||
| R902090858 | BRAKE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 215 | 215 |
| Control device | Proportional control, hydraulic negative control ΔpSt = 10 bar | HP5 |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EP5 and EP6 | D1 |
| Connector for solenoids | Without connectors (only for purely hydraulic control) | 0 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with | 1 |
| Setting range for displacement | Short extra long | H |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 200-4 | S4 |
| Drive shaft | Splined shaft DIN 5480 W50×2×24×9g | A2 |
| Working port | Port plate for mounting a counterbalance valve, with 1-stage pressure relief valve (pilot operated) BVD25 | 8 |
| Valve | With BVD/BVE counterbalance valves mounted | W |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Standard version | 0 |
