Unit · AXIAL-PISTON MOTOR
A6VM107EP2D/63W-VAB027HHB-YR902196763
Axial piston motor Bosch Rexroth series A6VM, type code A6VM107EP2D/63W-VAB027HHB-Y, material number R902196763. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902196763
- Type code
- A6VM107EP2D/63W-VAB027HHB-Y
- Group
- A6VM 107
- Edition
- 06/2020

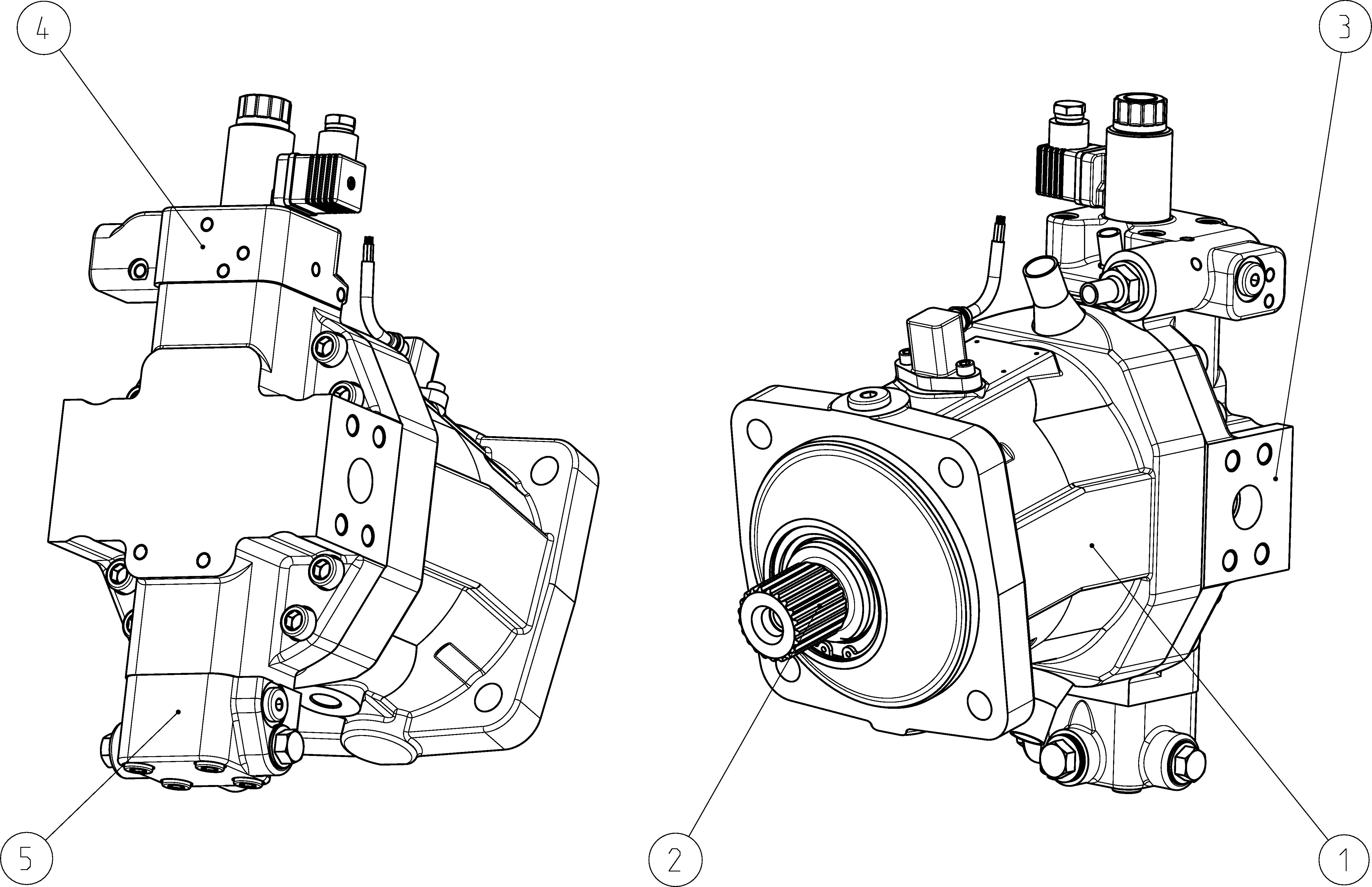

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902158837 | HOUSING Assembly parts list →L | 1 | ||
| R909604700 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902156144 | COVER PLATE Assembly parts list →L | 1 | ||
| R902063508 | CONTROL PART Assembly parts list →L | 1 | ||
| R902203681 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| 6 | R902085676 | ROTATIONAL SPEED SENSOR Assembly parts list →L | 1 | |
| 98 | R902002300 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
