Unit · AXIAL-PISTON PUMP
A4VG085ET1DPR00/40ALNC6+AZPF-11-019LRR20R902199861
Axial piston pump Bosch Rexroth series A4VG, type code A4VG085ET1DPR00/40ALNC6+AZPF-11-019LRR20, material number R902199861. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: electric swivel angle sensor (DWS20-1, 3-pin) (R). Additional function: without additional function (0). DA control valve (only for NG110 and 125): without DA control valve (0). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 127-2/ (C6).
- Number
- R902199861
- Type code
- A4VG085ET1DPR00/40ALNC6+AZPF-11-019LRR20
- Group
- A4VG 85
- Edition
- 01/2020

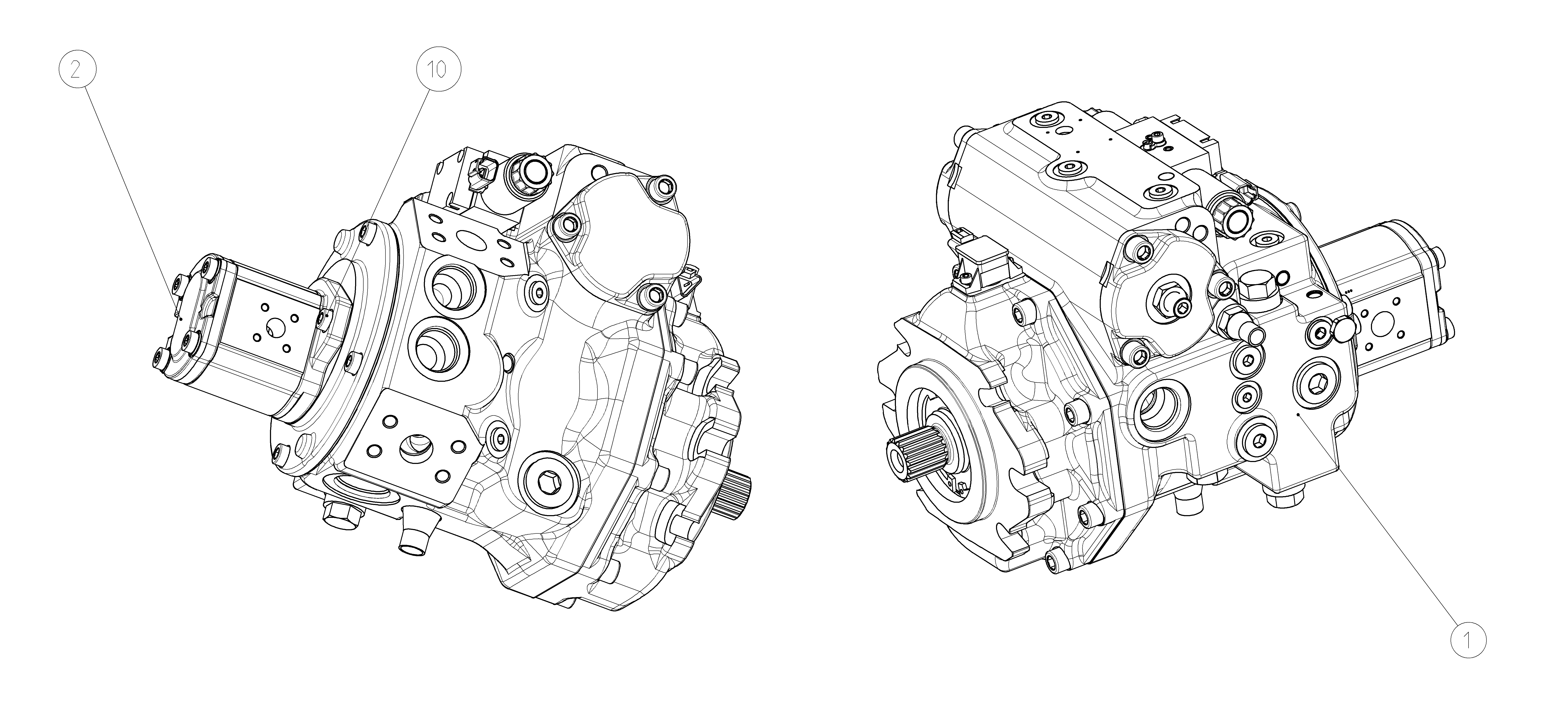

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199851 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510625379 | HYDRAULIC GEAR PUMPL | 1 | ||
| R902600334 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Electric swivel angle sensor (DWS20-1, 3-pin) | R |
| Additional function | Without additional function | 0 |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 127-2/ | C6 |
