Unit · AXIAL-PISTON MOTOR
A6VM115EP100P000A/71AWV0D4A11CV-YR902200241
Axial piston motor Bosch Rexroth series A6VM, type code A6VM115EP100P000A/71AWV0D4A11CV-Y, material number R902200241. Nominal size: NG 115. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: proportional control, positive control U = 12 V electric (EP1). Pressure control/override: without pressure control/override (00). Swivel angle detection: without (0). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: no setting screw short (0-adjustable) (A). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 152-4 (D4). Working port: SAE working ports A and B at rear (1). Valve: flushing on both sides Flushing flow when: 2.11 (8) (C).
- Number
- R902200241
- Type code
- A6VM115EP100P000A/71AWV0D4A11CV-Y
- Group
- A6VM 115
- Edition
- 06/2020

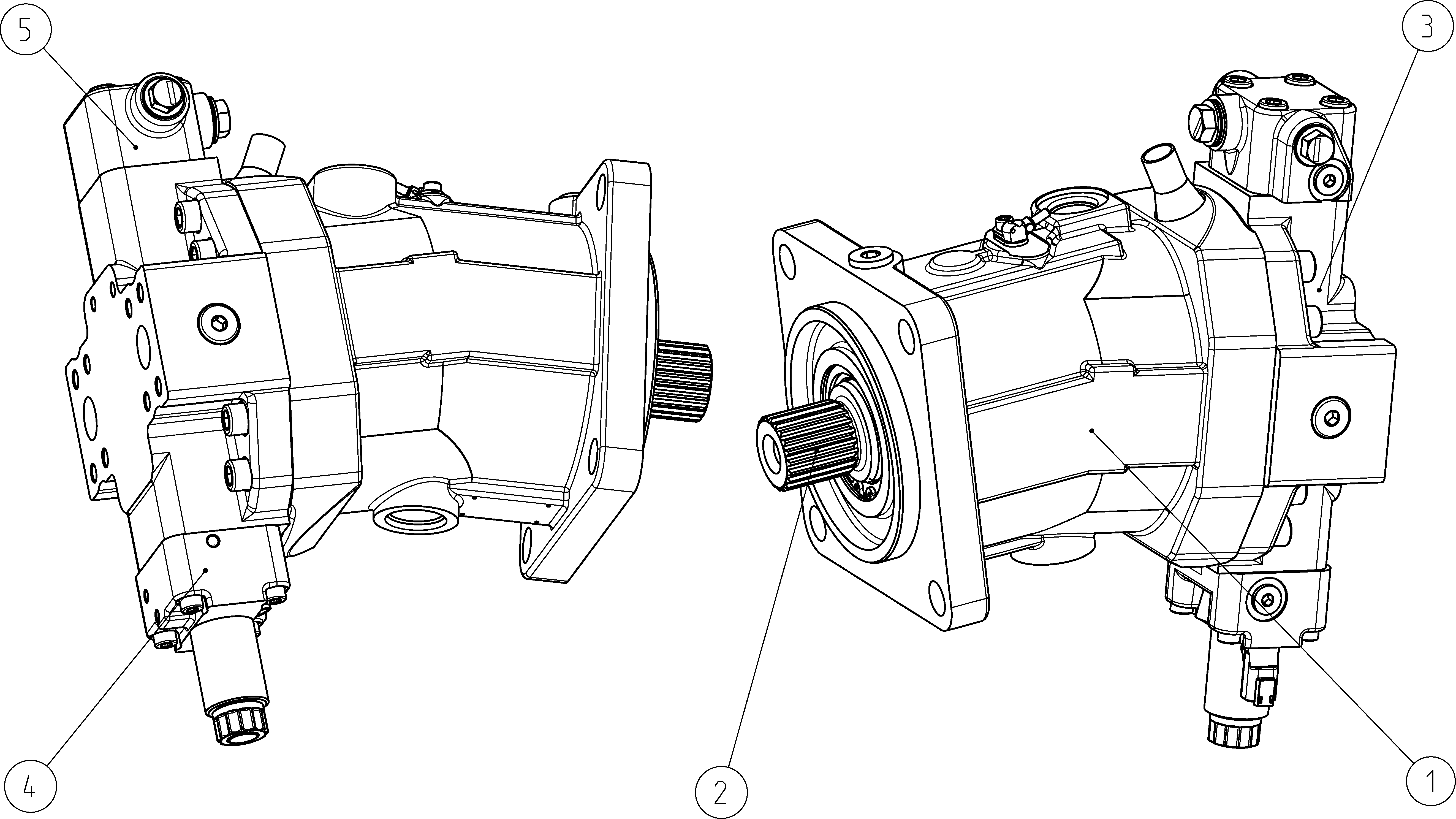

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902256729 | HOUSING Assembly parts list →L | 1 | ||
| R902126714 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902151502 | COVER PLATE Assembly parts list →L | 1 | ||
| R902139903 | CONTROL PART Assembly parts list →L | 1 | ||
| R902151505 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| 6 | R902107666 | SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 115 | 115 |
| Control device | Proportional control, positive control U = 12 V electric | EP1 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | No setting screw short (0-adjustable) | A |
| Series | Series 7, Index 1 | 71 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 152-4 | D4 |
| Working port | SAE working ports A and B at rear | 1 |
| Valve | flushing on both sides Flushing flow when: 2.11 (8) | C |
| Speed sensor | With DSA/12 speed sensor mounted | V |
| Standard/special version | Standard version with installation variants, e.g. T ports open and closed contrary to standard | Y |
