Unit · AXIAL-PISTON MOTOR
A6VM215HZ5000001F/71AWV0E4T2200-0R902202335
Axial piston motor Bosch Rexroth series A6VM, type code A6VM215HZ5000001F/71AWV0E4T2200-0, material number R902202335. Nominal size: NG 215. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: two-point control, hydraulic negative control (HZ5). Pressure control/override: without pressure control/override (00). Swivel angle detection: without (0). Additional function: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance (1). Setting range for displacement: short moderate (F). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 165-4 (E4). Drive shaft: splined shaft ANSI B92.1a 2 in 15T 8/16 DP (T2). Working port: SAE working ports A and B at side, opposite (2).
- Number
- R902202335
- Type code
- A6VM215HZ5000001F/71AWV0E4T2200-0
- Group
- A6VM 215
- Edition
- 06/2020

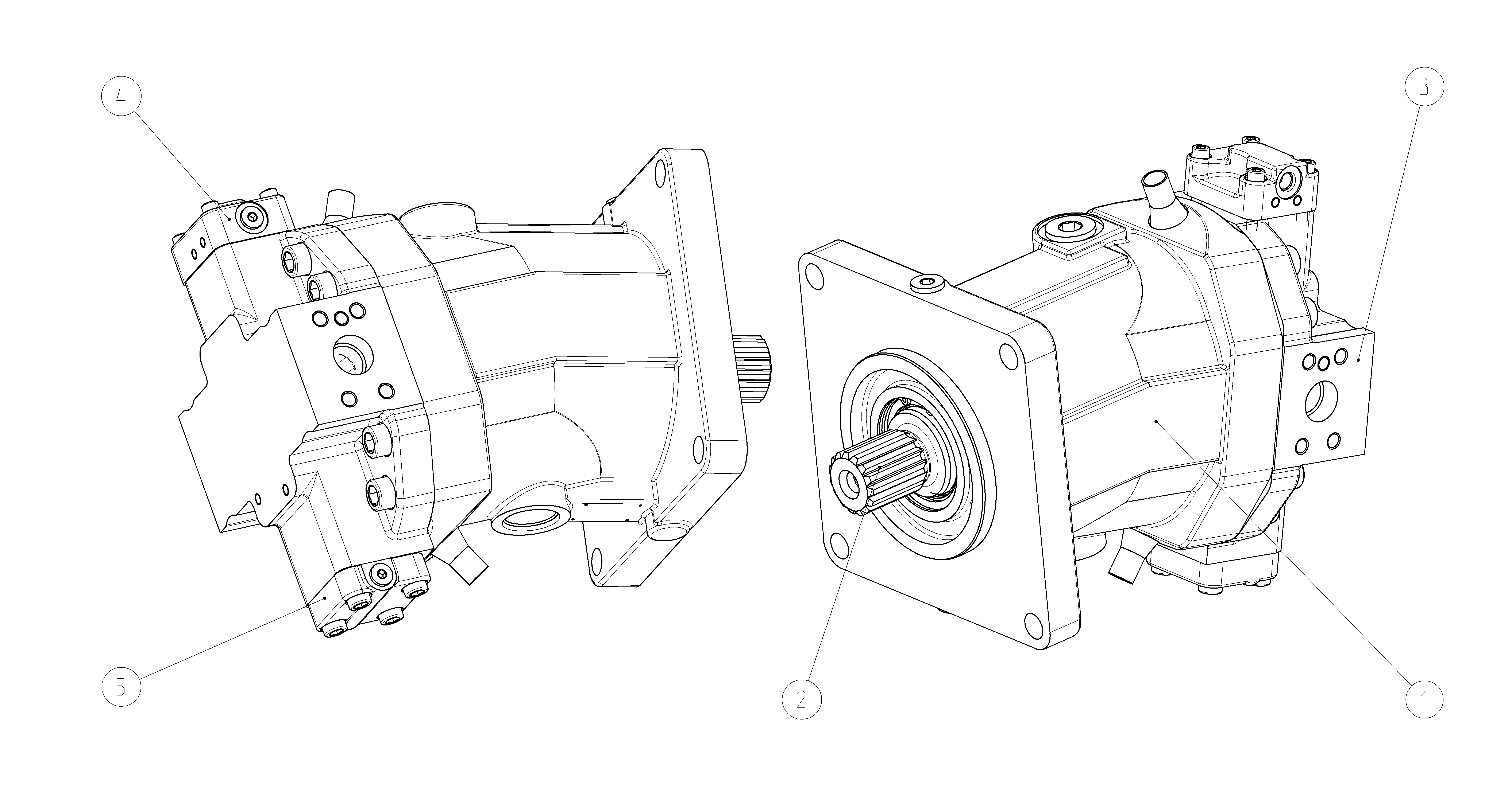

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902202337 | HOUSING Assembly parts list →L | 1 | ||
| R902139650 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902202339 | COVER PLATE Assembly parts list →L | 1 | ||
| R902202342 | CONTROL PART Assembly parts list →L | 1 | ||
| R902202344 | COVER Assembly parts list →L | 1 | ||
| 98 | R902095795 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 215 | 215 |
| Control device | Two-point control, hydraulic negative control | HZ5 |
| Pressure control/override | Without pressure control/override | 00 |
| Without damping (without solenoid, only for hydraulic control) | 0 | |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance | 1 |
| Setting range for displacement | short moderate | F |
| Series | Series 7, Index 1 | 71 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 165-4 | E4 |
| Drive shaft | Splined shaft ANSI B92.1a 2 in 15T 8/16 DP | T2 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | Without valve | 0 |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Standard version | 0 |
