Unit · AXIAL-PISTON MOTOR
A6VLE107EP1/63W-VZU520FTA-SR902203191
Axial piston motor Bosch Rexroth series A6VM, type code A6VLE107EP1/63W-VZU520FTA-S, material number R902203191. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Drive shaft bearing: long-life bearing (L). Control device: proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) (EP1). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R902203191
- Type code
- A6VLE107EP1/63W-VZU520FTA-S
- Group
- A6VLE 107
- Edition
- 06/2020

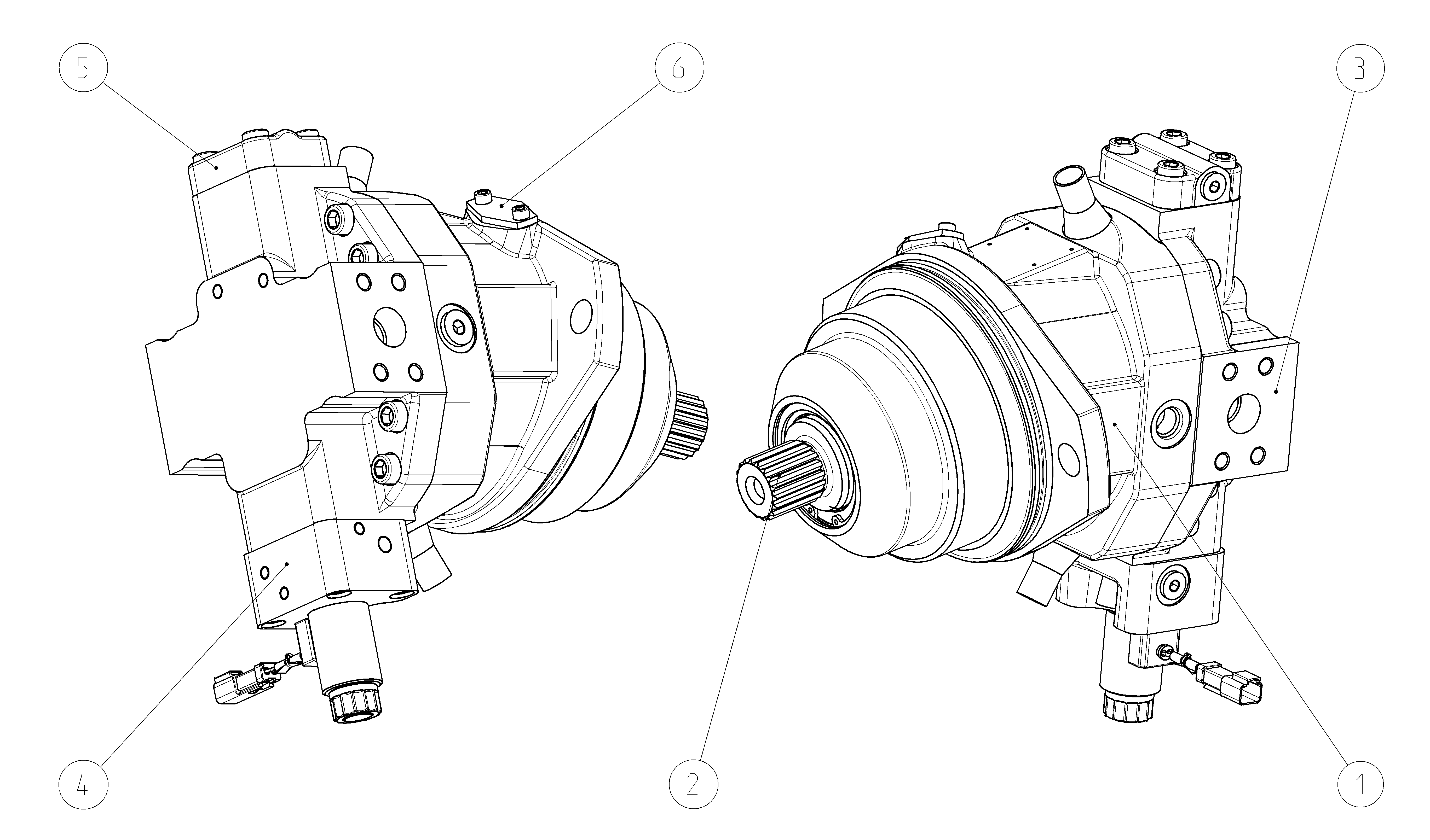

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902203780 | HOUSING Assembly parts list →L | 1 | ||
| R902203883 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902203917 | COVER PLATE Assembly parts list →L | 1 | ||
| R902067860 | CONTROL PART Assembly parts list →L | 1 | ||
| R902132422 | COVER Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Drive shaft bearing | Long-life bearing | L |
| Size (NG) | 107 | 107 |
| Control device | Proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) | EP1 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
