Unit · AXIAL-PISTON MOTOR

A6VM140HA1TB/63W-VZB38800A-SR902203492

Axial piston motor Bosch Rexroth series A6VM, type code A6VM140HA1TB/63W-VZB38800A-S, material number R902203492. Nominal size: NG 140. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: port plate with 1-stage pressure relief valves (pilot operated) for mounting a counterbalance valve MHB Mounted counterbalance valve 8 (388). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).

Number
R902203492
Type code
A6VM140HA1TB/63W-VZB38800A-S
Group
A6VM 140
Edition
06/2020

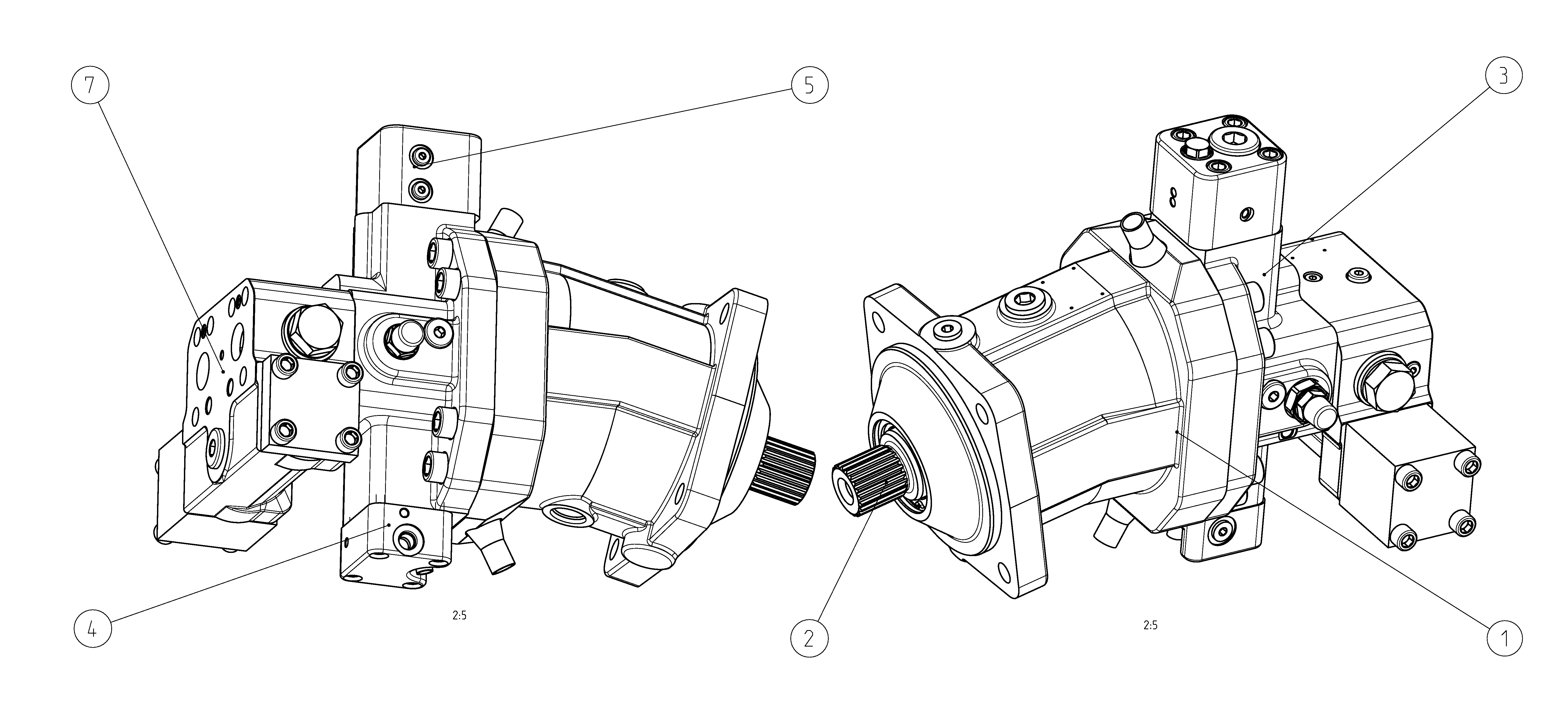

A6VM140HA1TB/63W-VZB38800A-S — Drawing
Pos.NumberNameQtyAdd to inquiry
R902203990HOUSING Assembly parts list →L1
R902281651ROTARY GROUP Assembly parts list →L1
R902281557COVER PLATE Assembly parts list →L1
R902221806CONTROL PART Assembly parts list →L1
R902119544STROKE LIMITER Assembly parts list →L1
R902197051BRAKE VALVE Assembly parts list →L1

Parameters from the type code

ItemMeaningCode
Axial piston unitBent-axis design, variableA6V
Operating modeMotorM
Size (NG)140140
Control deviceAutomatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 barHA1
SeriesSeries 6, index 363
Direction of rotationViewed on drive shaft variableW
Sealing materialFKM (fluoroelastomer)V
Drive shaftSplined shaft DIN 5480Z
Mounting flangeISO 3019-2 4-holeB
Working portPort plate with 1-stage pressure relief valves (pilot operated) for mounting a counterbalance valve MHB Mounted counterbalance valve 8388
Beginning of controlAt Vg min (standard for HA)A
Standard/special versionSpecial version-S
