Unit · AXIAL-PISTON PUMP
A4VG085EP4DH0M0/40NL+A10VO18ED72/53LR902204539
Axial piston pump Bosch Rexroth series A4VG, type code A4VG085EP4DH0M0/40NL+A10VO18ED72/53L, material number R902204539. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric with manual override and spring return U = 24 V (EP4). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Swivel angle sensor: without swivel angle sensor (0). Additional function: mechanical stroke limiter, externally adjustable (M). DA control valve (only for NG110 and 125): without DA control valve (0). Direction of rotation: viewed on drive shaft counter-clockwise (L).
- Number
- R902204539
- Type code
- A4VG085EP4DH0M0/40NL+A10VO18ED72/53L
- Group
- A10VO 18
- Edition
- 01/2020

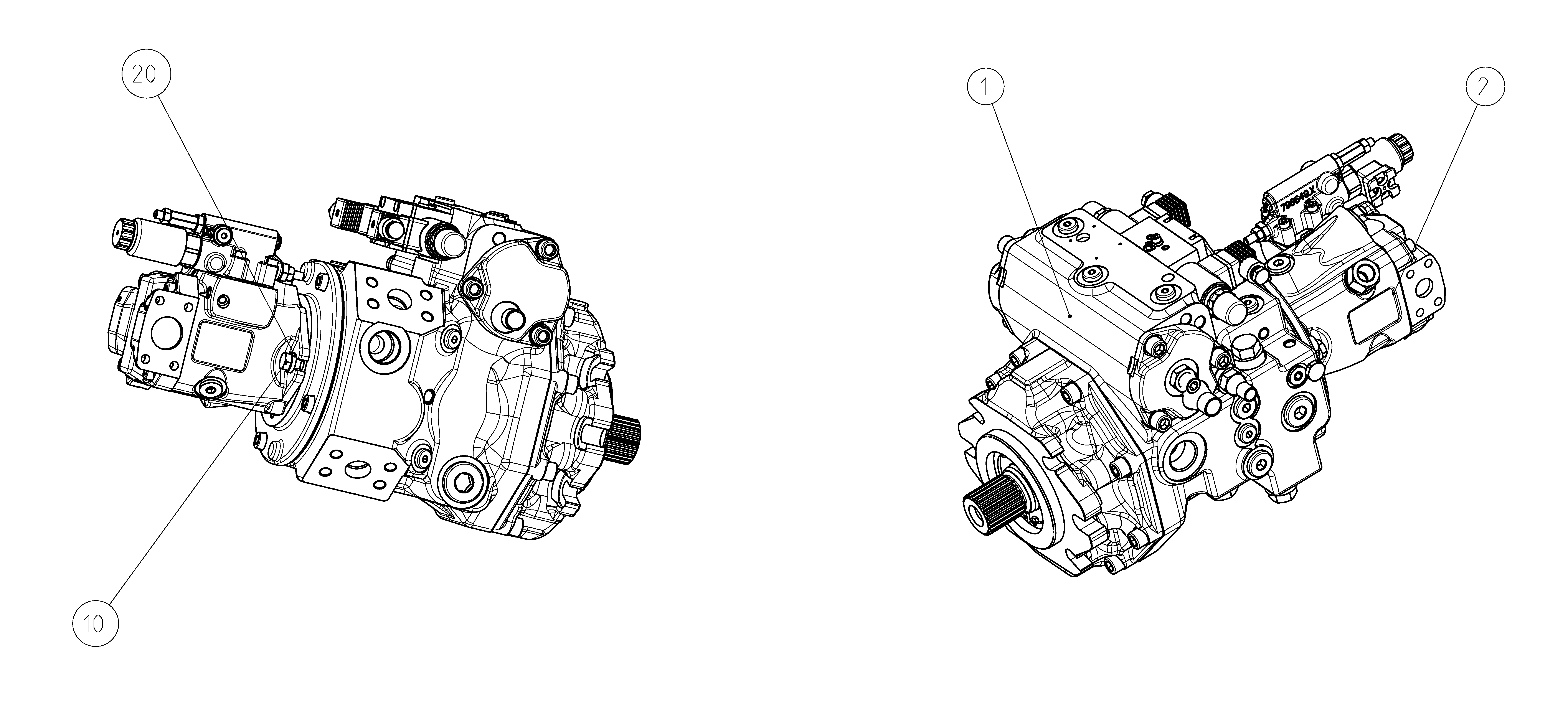

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902204540 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902510772 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083700 | HEXAGON SCREW | 2 | ||
| R909921512 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Control device | Proportional control, electric with manual override and spring return U = 24 V | EP4 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Mechanical stroke limiter, externally adjustable | M |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
