Unit · AXIAL-PISTON MOTOR
A6VLE80EP1/63W-VAL020FPA-SR902204561
Axial piston motor Bosch Rexroth series A6VM, type code A6VLE80EP1/63W-VAL020FPA-S, material number R902204561. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Drive shaft bearing: long-life bearing (L). Control device: proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) (EP1). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R902204561
- Type code
- A6VLE80EP1/63W-VAL020FPA-S
- Group
- A6VLE 80
- Edition
- 06/2020

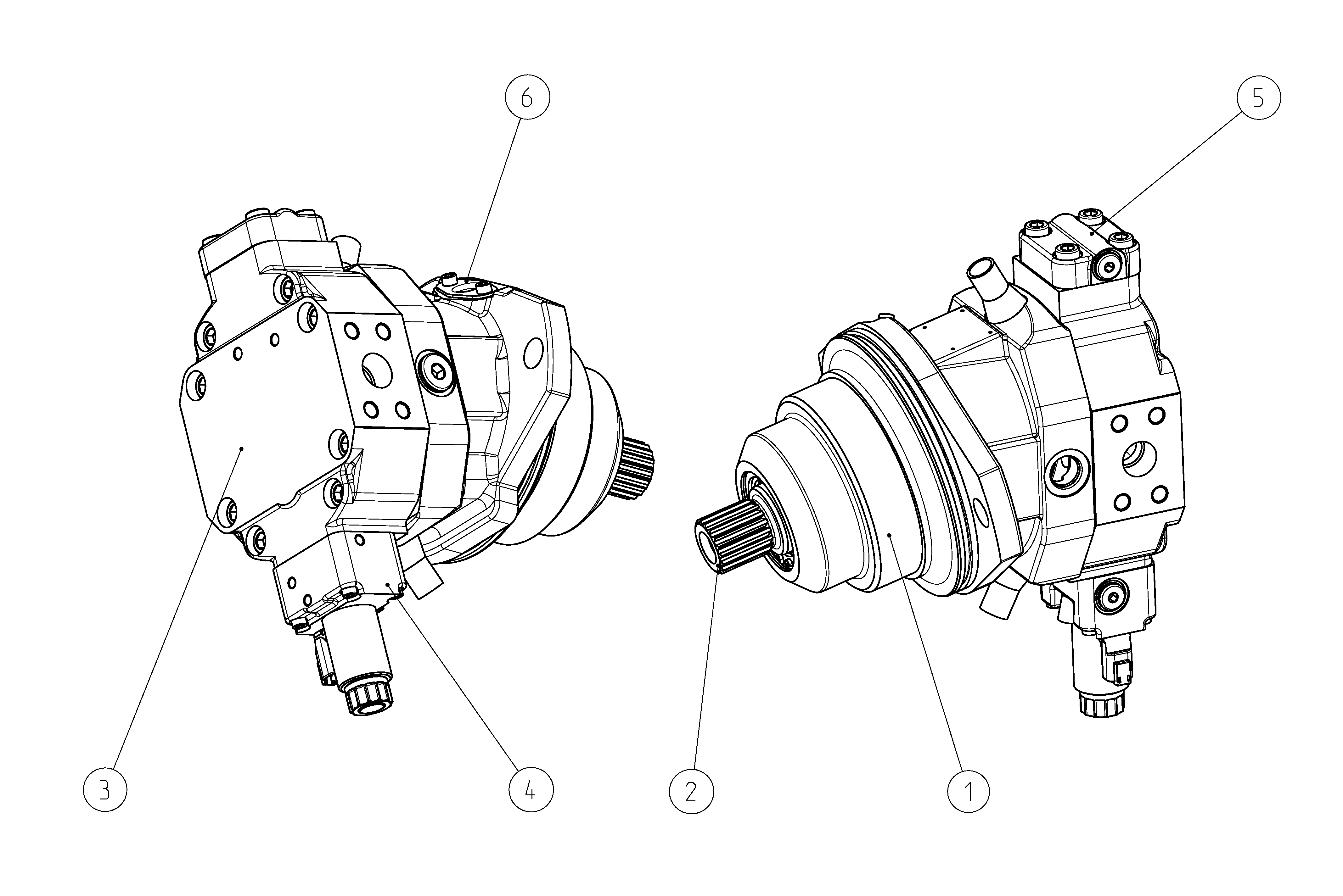

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902210741 | HOUSING Assembly parts list →L | 1 | ||
| R902203879 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902182242 | COVER PLATE Assembly parts list →L | 1 | ||
| R902110004 | CONTROL PART Assembly parts list →L | 1 | ||
| R902099264 | COVER Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Drive shaft bearing | Long-life bearing | L |
| Size (NG) | 80 | 80 |
| Control device | Proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) | EP1 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
