Unit · AXIAL-PISTON MOTOR
A6VE170EP6D1P001C/71MWV0S2A120H-0R902205915
Axial piston motor Bosch Rexroth series A6VE, type code A6VE170EP6D1P001C/71MWV0S2A120H-0, material number R902205915. Nominal size: NG 170. Axial piston unit: bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) (A6V). Operating mode: plug-in motor (E). Control device: proportional control electric negative control U = 24 V (EP6). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EP5 and EP6 (D1). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance valve (1). Setting range for displacement: no setting screw long (C). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 200-2 (S2). Drive shaft: splined shaft DIN 5480 W45×2×21×9g (A1).
- Number
- R902205915
- Type code
- A6VE170EP6D1P001C/71MWV0S2A120H-0
- Group
- A6VE 170
- Edition
- 06/2020

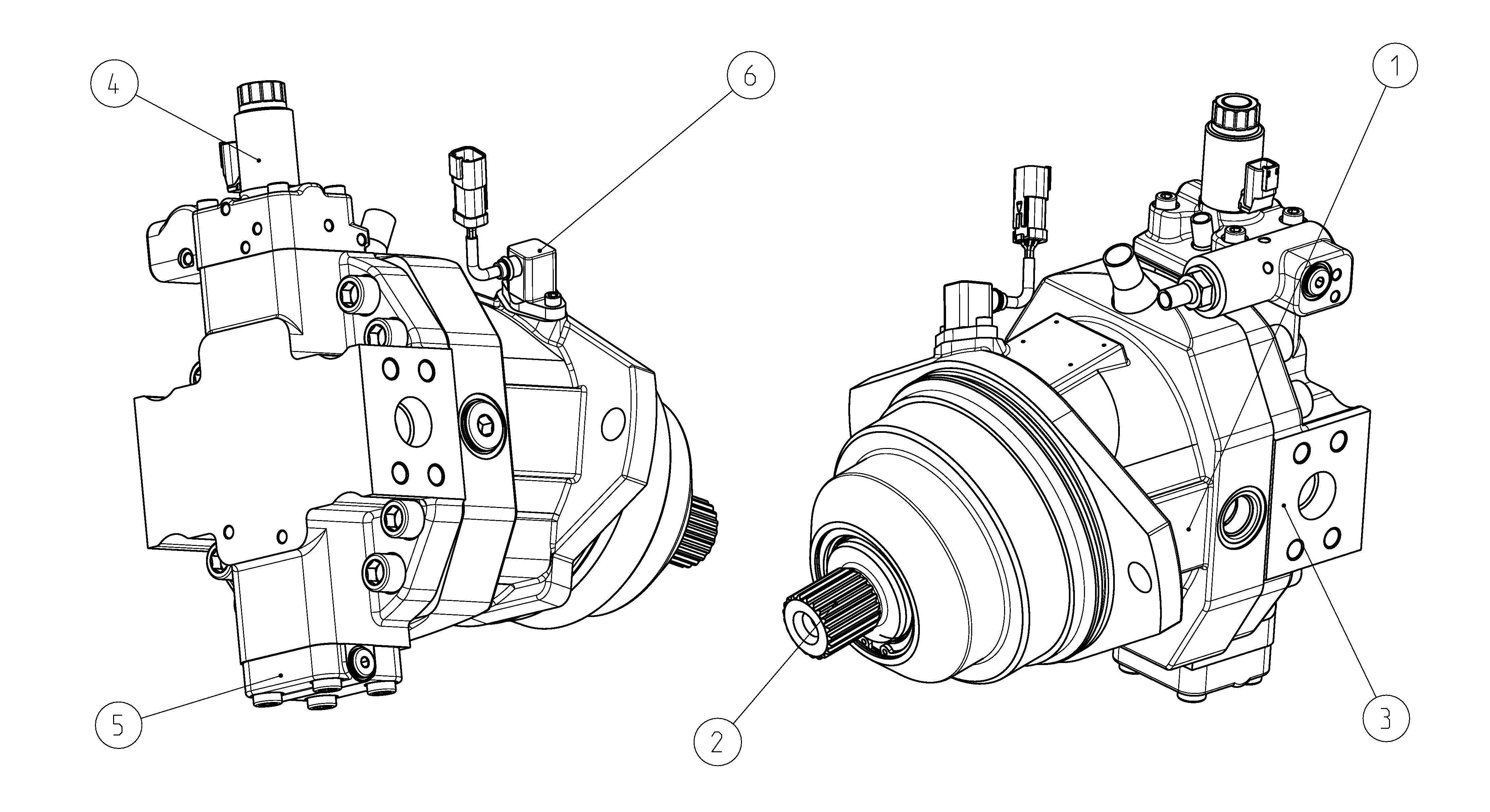

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902227255 | HOUSING Assembly parts list →L | 1 | ||
| R902277876 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902279438 | COVER PLATE Assembly parts list →L | 1 | ||
| R902139957 | CONTROL PART Assembly parts list →L | 1 | ||
| R902096783 | COVER Assembly parts list →L | 1 | ||
| R902085688 | ROTATIONAL SPEED SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 170 | 170 |
| Control device | Proportional control electric negative control U = 24 V | EP6 |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EP5 and EP6 | D1 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance valve | 1 |
| Setting range for displacement | No setting screw long | C |
| Series | Series 7, Index 1 | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 200-2 | S2 |
| Drive shaft | Splined shaft DIN 5480 W45×2×21×9g | A1 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | Without valve | 0 |
| Standard/special version | Standard version | 0 |
