Unit · AXIAL-PISTON MOTOR
A6VM215EP6D1P001B/71XWV0E4T28WH-SR902205916
Axial piston motor Bosch Rexroth series A6VM, type code A6VM215EP6D1P001B/71XWV0E4T28WH-S, material number R902205916. Nominal size: NG 215. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 24 V (EP6). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EP5 and EP6 (D1). Swivel angle detection: without (0). Additional function: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance (1). Setting range for displacement: no setting screw moderate (B). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 165-4 (E4). Drive shaft: splined shaft ANSI B92.1a 2 in 15T 8/16 DP (T2). Working port: port plate for mounting a counterbalance valve, with 1-stage pressure-relief valve (pilot operated) BVD 25 (8).
- Number
- R902205916
- Type code
- A6VM215EP6D1P001B/71XWV0E4T28WH-S
- Group
- A6VM 215
- Edition
- 06/2020

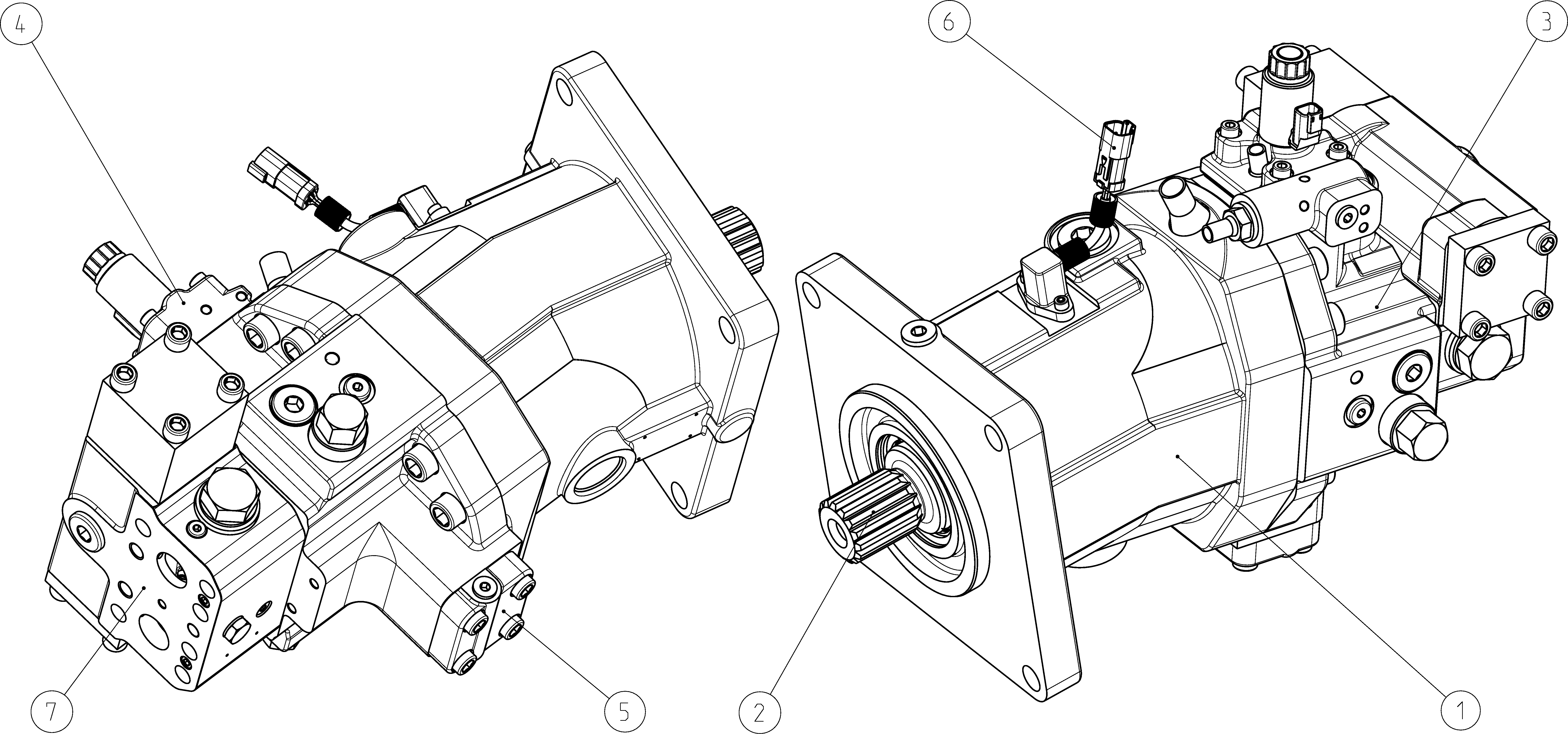

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902227203 | HOUSING Assembly parts list →L | 1 | ||
| R902276368 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902276382 | COVER PLATE Assembly parts list →L | 1 | ||
| R902227205 | CONTROL PART Assembly parts list →L | 1 | ||
| R902202344 | COVER Assembly parts list →L | 1 | ||
| R902085686 | ROTATIONAL SPEED SENSOR Assembly parts list →L | 1 | ||
| R902228549 | BRAKE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 215 | 215 |
| Control device | Proportional control, electric negative control U = 24 V | EP6 |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EP5 and EP6 | D1 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance | 1 |
| Setting range for displacement | No setting screw moderate | B |
| Series | Series 7, Index 1 | 71 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 165-4 | E4 |
| Drive shaft | Splined shaft ANSI B92.1a 2 in 15T 8/16 DP | T2 |
| Working port | Port plate for mounting a counterbalance valve, with 1-stage pressure-relief valve (pilot operated) BVD 25 | 8 |
| Valve | With BVD/BVE counterbalance valves mounted | W |
| Standard/special version | Special version | S |
