Unit · AXIAL-PISTON PUMP
A4VG175EP2DPOTO/40+AA10VG45EP4D1/10LR902205953
Axial piston pump Bosch Rexroth series A4VG, type code A4VG175EP2DPOTO/40+AA10VG45EP4D1/10L, material number R902205953. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Additional function: stroking chamber pressure port X X (T).
- Number
- R902205953
- Type code
- A4VG175EP2DPOTO/40+AA10VG45EP4D1/10L
- Group
- A10VG 45
- Edition
- 01/2020

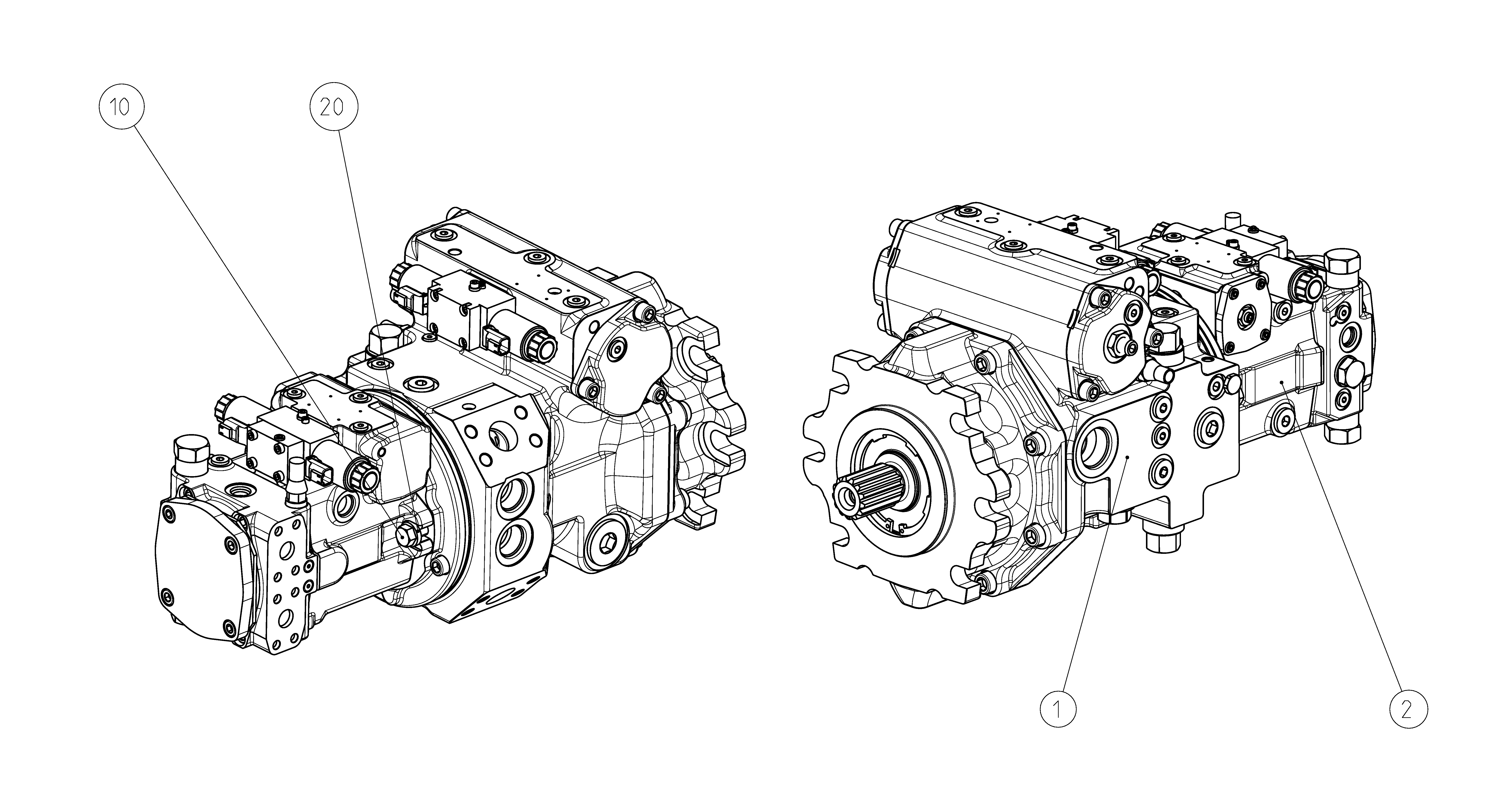

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902205955 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902205956 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909153317 | HEXAGON SCREW | 2 | ||
| R902021296 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Additional function | Stroking chamber pressure port X X | T |
