Unit · AXIAL-PISTON PUMP
A4VG175EP2/40+AA10VG63EP4/10+AA10VG45EP4R902205963
Axial piston pump Bosch Rexroth series A4VG, type code A4VG175EP2/40+AA10VG63EP4/10+AA10VG45EP4, material number R902205963. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Connector for solenoids: without connector (only for purely hydraulic control) (0).
- Number
- R902205963
- Type code
- A4VG175EP2/40+AA10VG63EP4/10+AA10VG45EP4
- Group
- A10VG 63
- Edition
- 01/2020

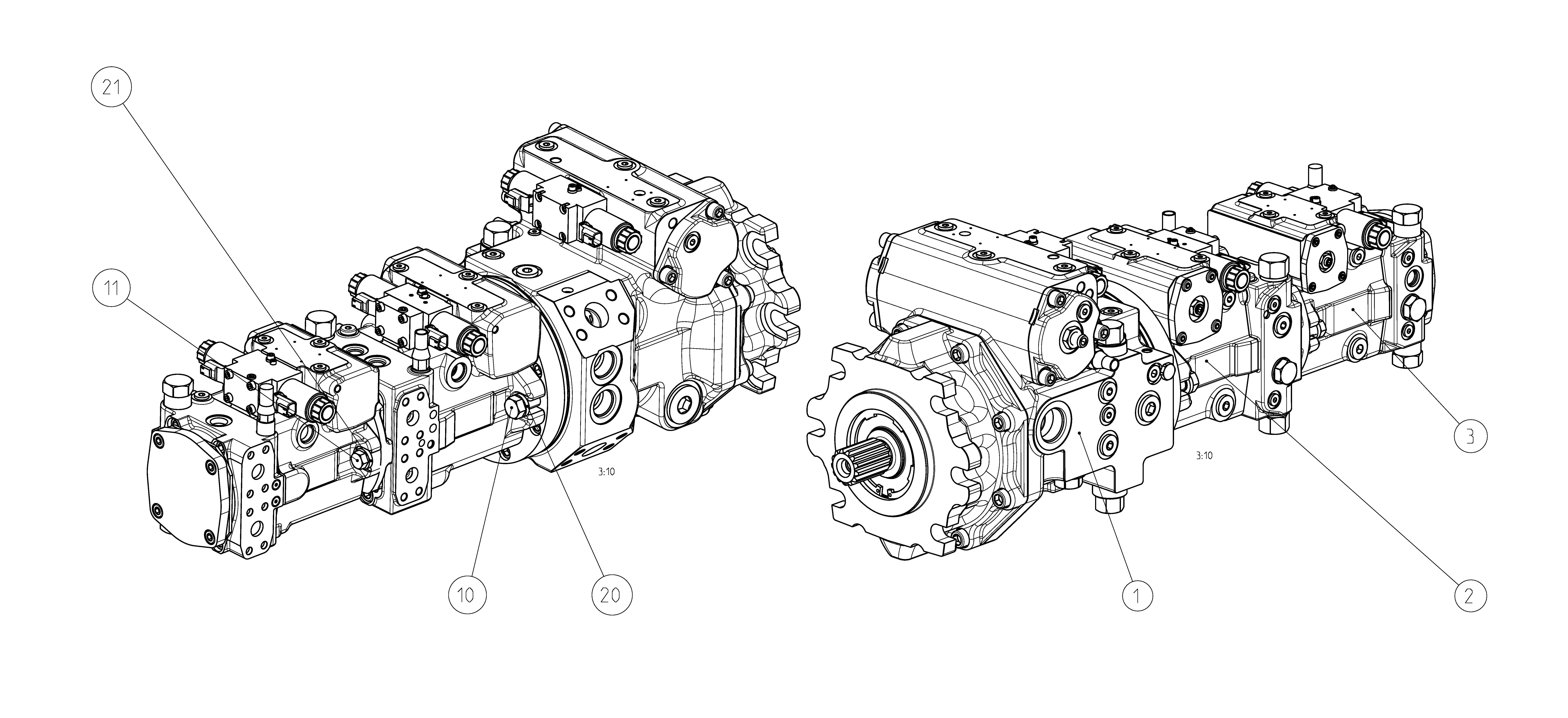

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902205964 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902205965 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902205966 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909153318 | HEXAGON SCREW | 2 | ||
| R909153317 | HEXAGON SCREW | 2 | ||
| R909430408 | WASHER | 2 | ||
| R902021296 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Connector for solenoids | Without connector (only for purely hydraulic control) | 0 |
